Windshield Wiper System Module Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

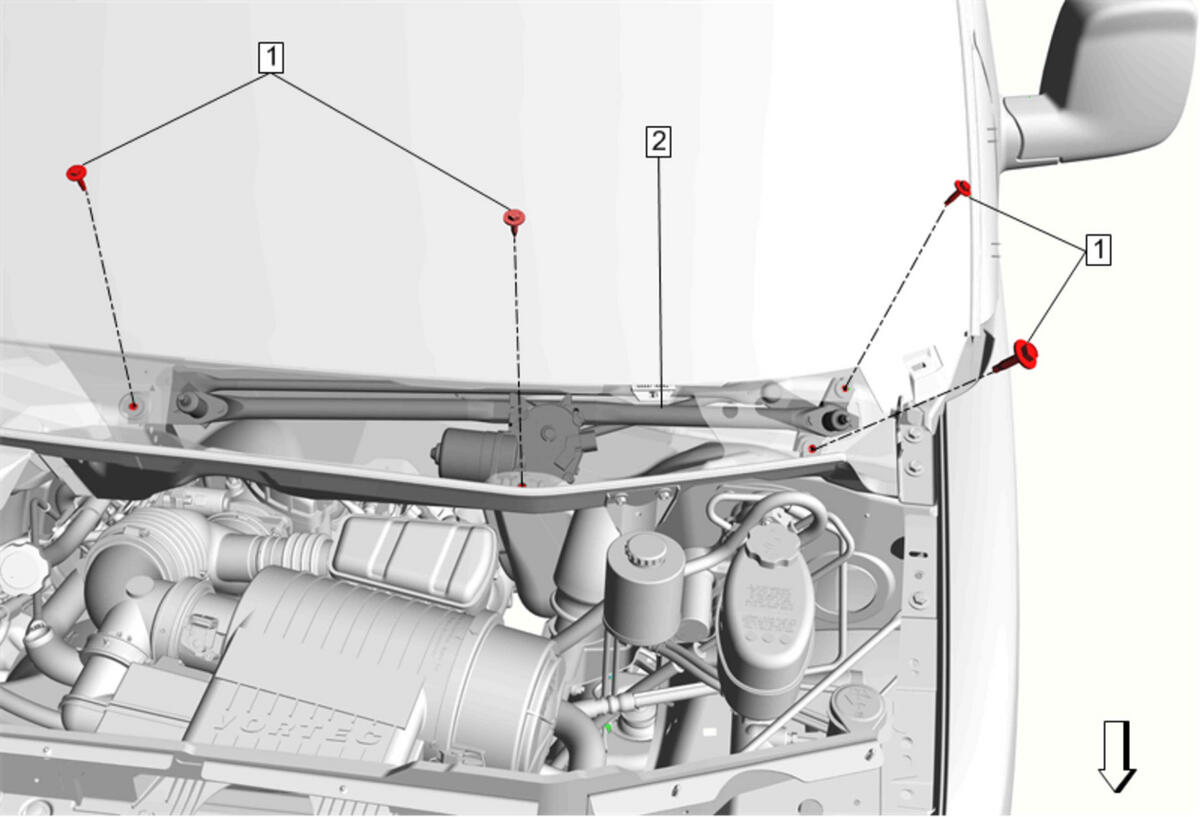

Callout	Component Name
Preliminary Procedure Air Inlet Grille Panel- Left Side - Remove - Air Inlet Grille Panel Replacement (Left Side)
1	Windshield Wiper Transmission Bolt [4x] CAUTION: Refer to Fastener Caution . Tighten 8 N.m (71 lb in)
2	Windshield Wiper Transmission Procedure Disconnect the electrical connector. Remove the wiper transmission from the plenum brackets. Transfer components as necessary.

Callout

Component Name

Preliminary Procedure
Air Inlet Grille Panel- Left Side - Remove - Air Inlet Grille Panel Replacement (Left Side)

Windshield Wiper Transmission Bolt [4x]

CAUTION:

Refer to Fastener Caution .

Tighten
8 N.m (71 lb in)

Windshield Wiper Transmission

Procedure

Disconnect the electrical connector.
Remove the wiper transmission from the plenum brackets.
Transfer components as necessary.
