Windshield Wiper Blade Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

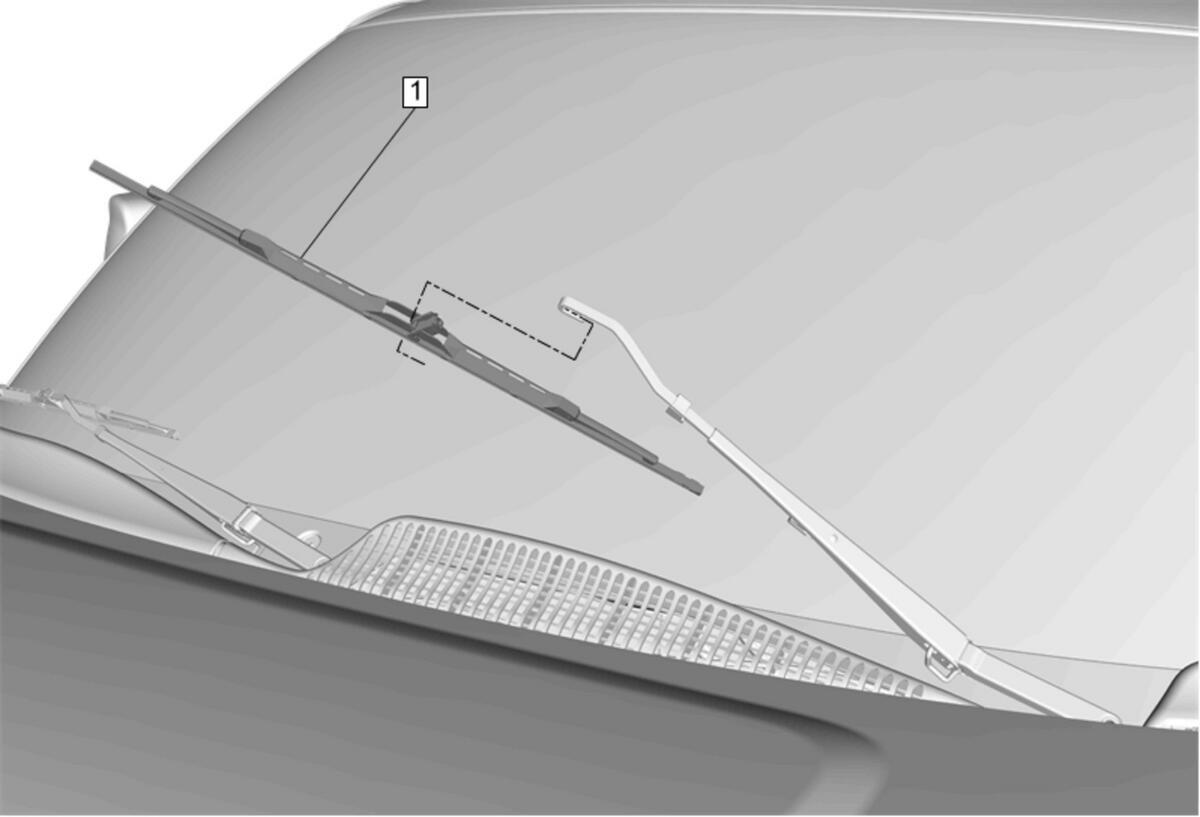

GM4856342Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Windshield Wiper Blade

Procedure

  1. Lift the windshield wiper arm from the windshield.
  2. Disengage the windshield wiper blade lock from the windshield wiper arm.
  3. Release the retention tab securing the windshield wiper blade to the windshield wiper arm.
  4. Remove the windshield wiper blade.
