Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Lubricate the windshield washer hose ends with washer solvent and install to the washer hose end to the washer pump.

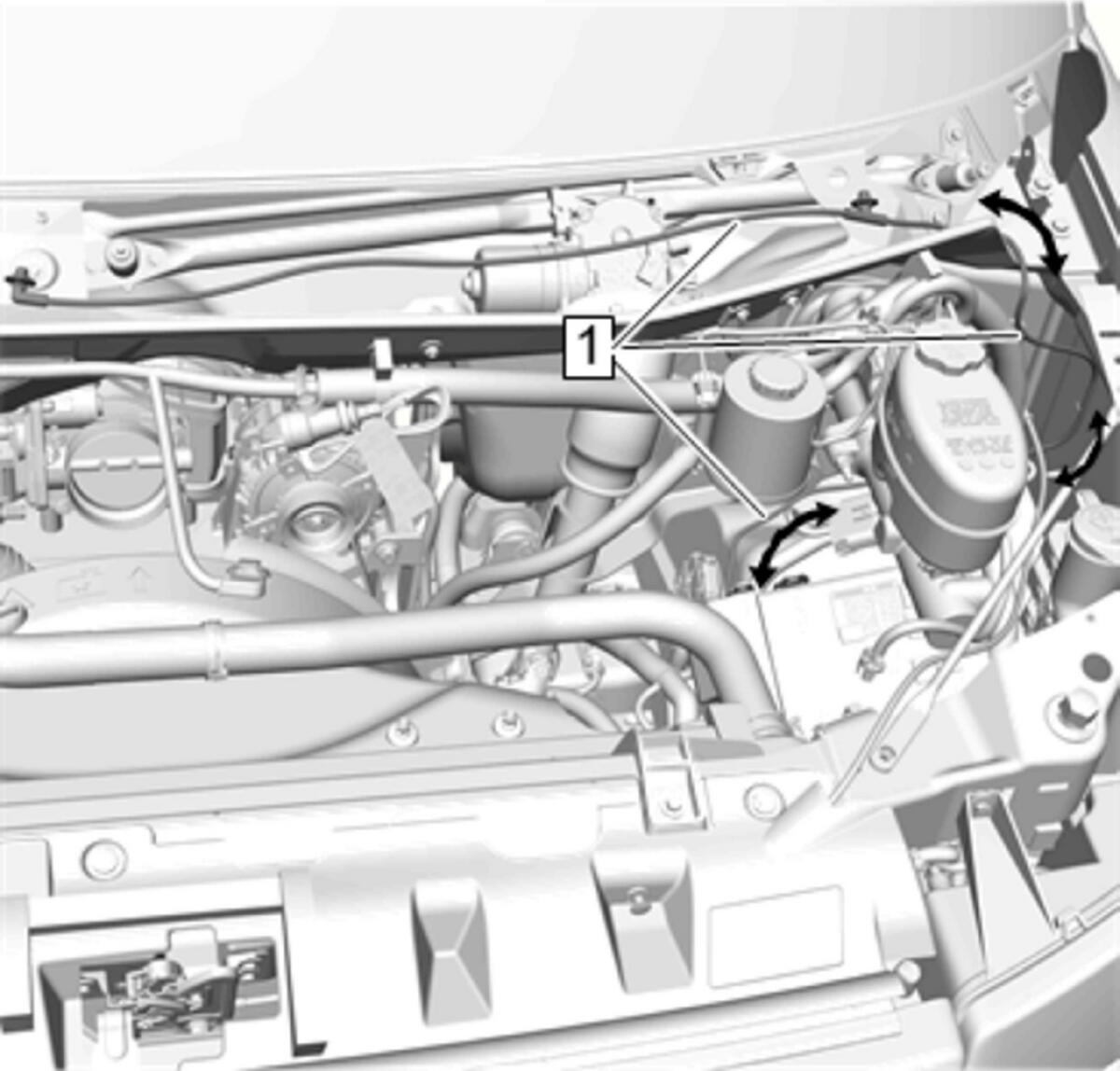

Route the windshield washer hose (1) over the front wheelhouse panel, under the brake master cylinder and through the plenum lower panel opening to its proper location.

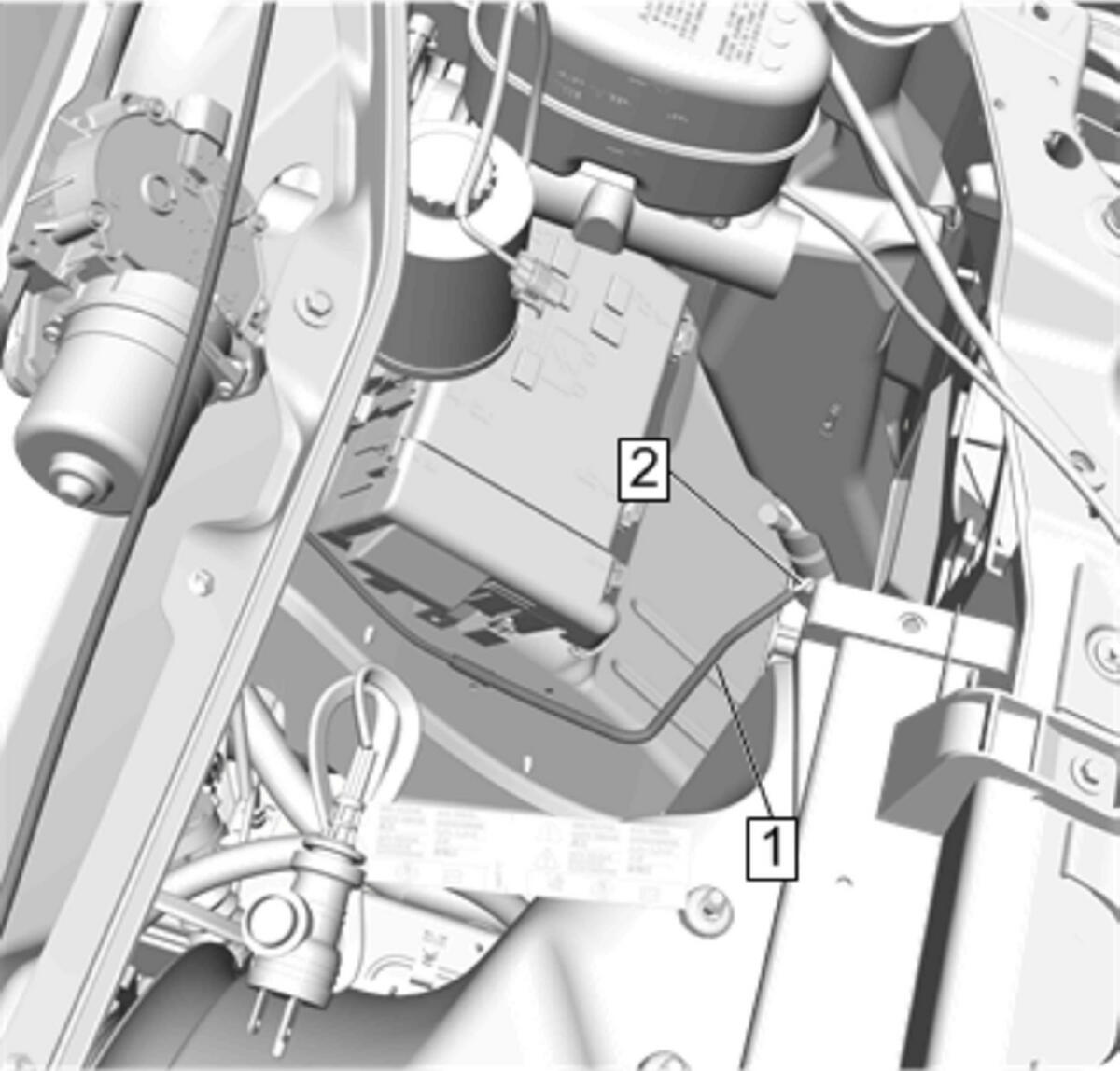

Windshield Washer Hose (1) @ Windshield Washer Pump (2) - Connect
- Air Inlet Grille Panel- Left Side - Install - Air Inlet Grille Panel Replacement (Left Side) .
- Fill the windshield washer solvent container.
