Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

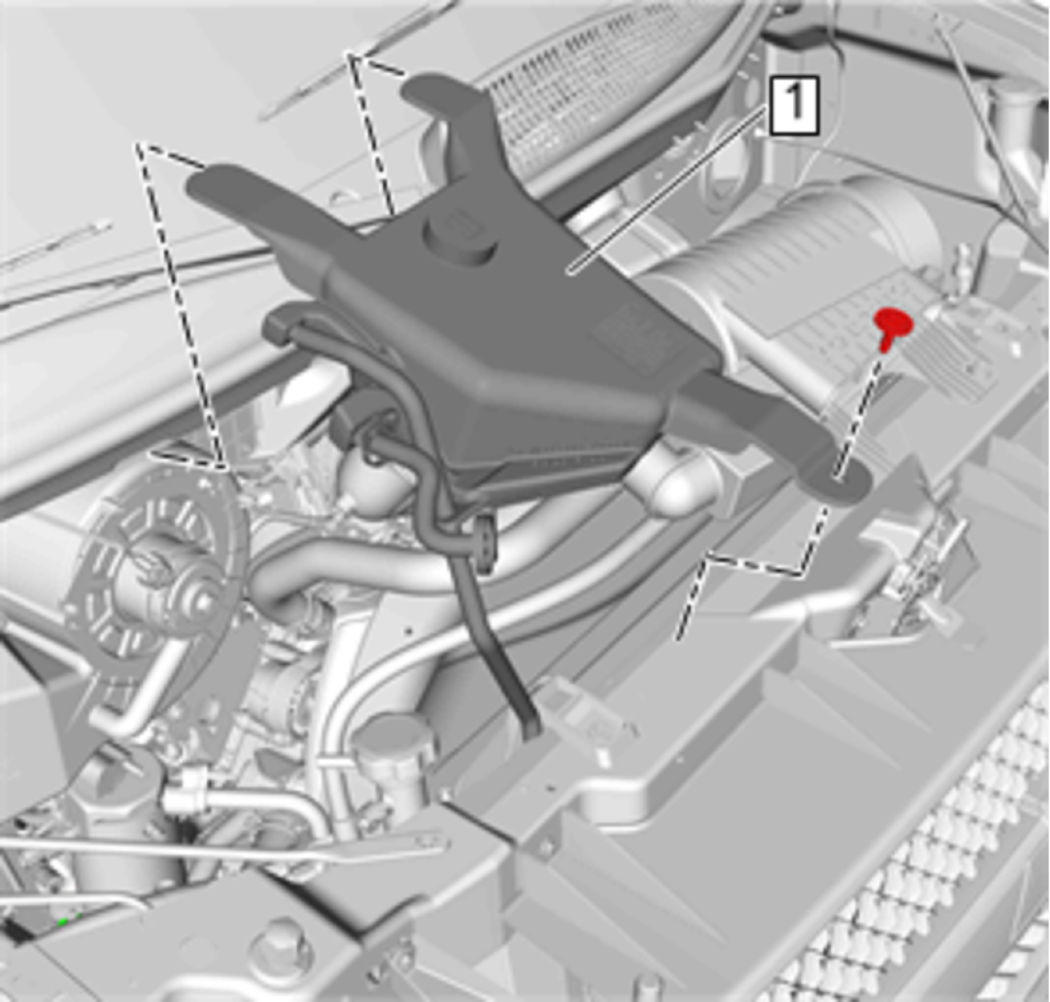

  1. GM4824110Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (1) - Remove - Radiator Surge Tank Replacement (LWN)

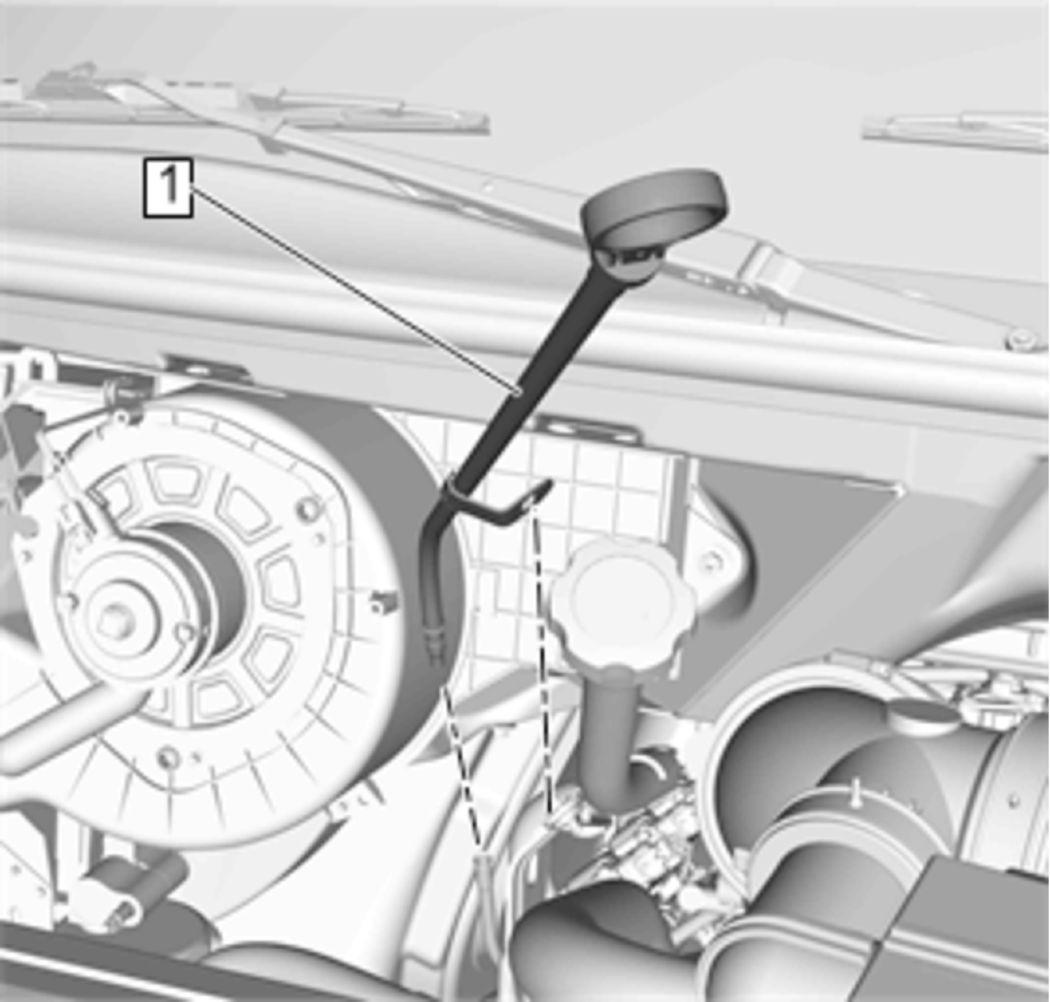

  2. GM4824114Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - Remove - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)

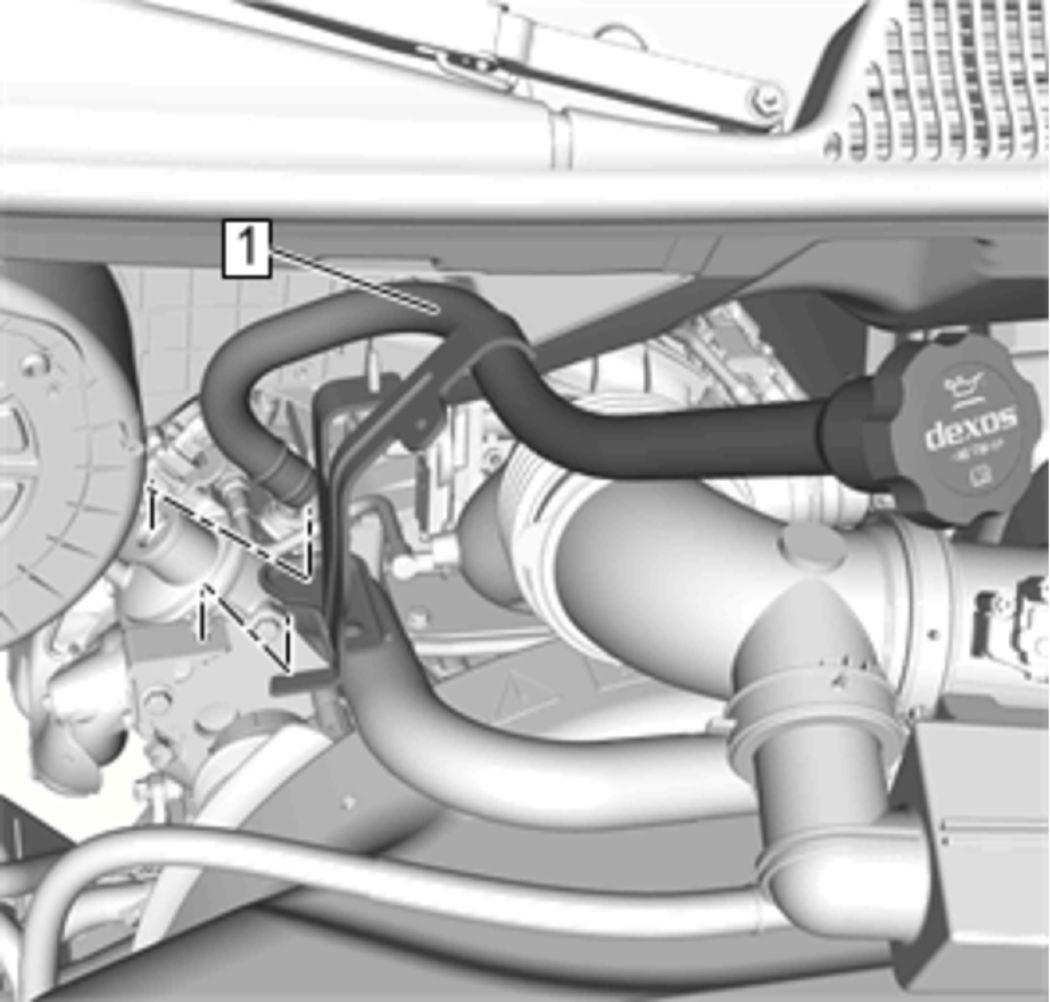

  3. GM4824117Courtesy of GENERAL MOTORS COMPANY

    Oil Filler Tube (1) - Remove - Oil Filler Tube Replacement

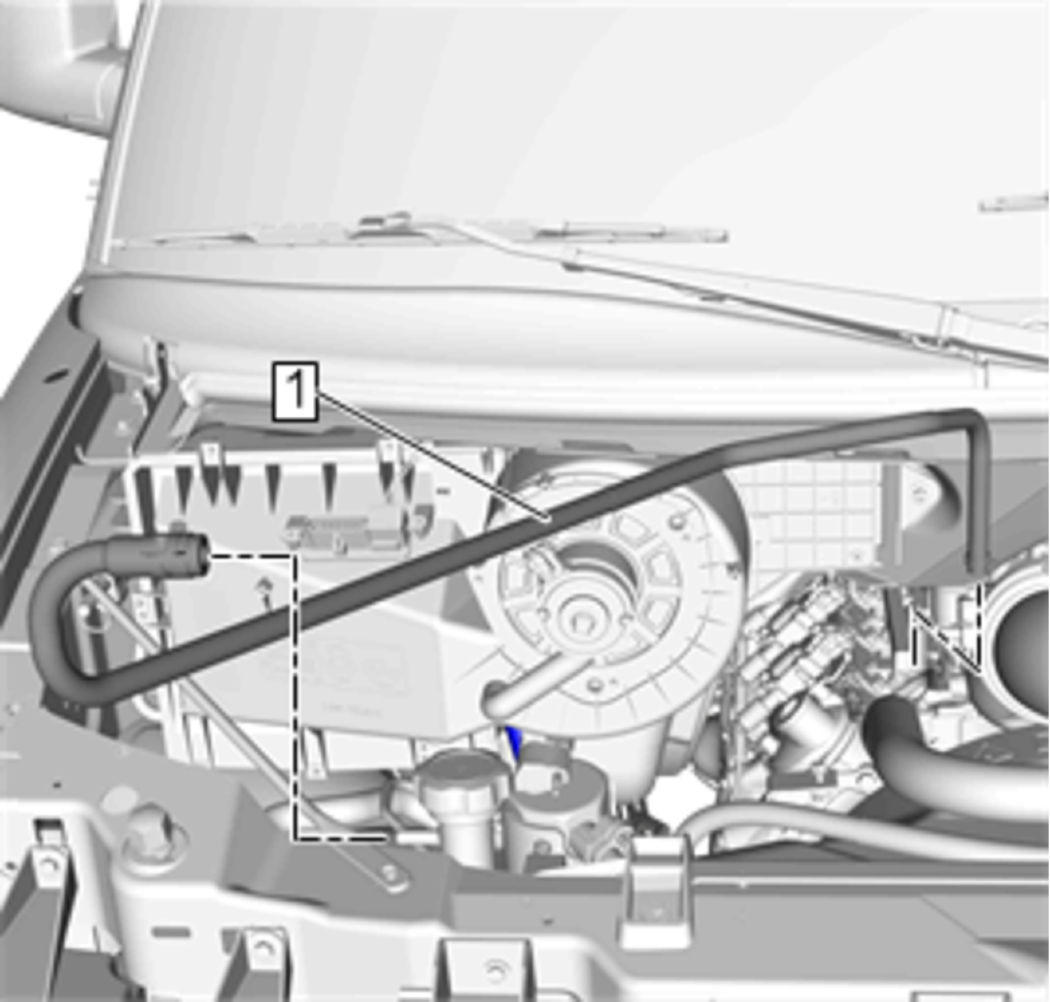

  4. GM4824121Courtesy of GENERAL MOTORS COMPANY

    Radiator Vent Inlet Hose (1) - Remove - Radiator Vent Inlet Hose Replacement (LWN) , or Radiator Vent Inlet Hose Replacement (L96, LC8)

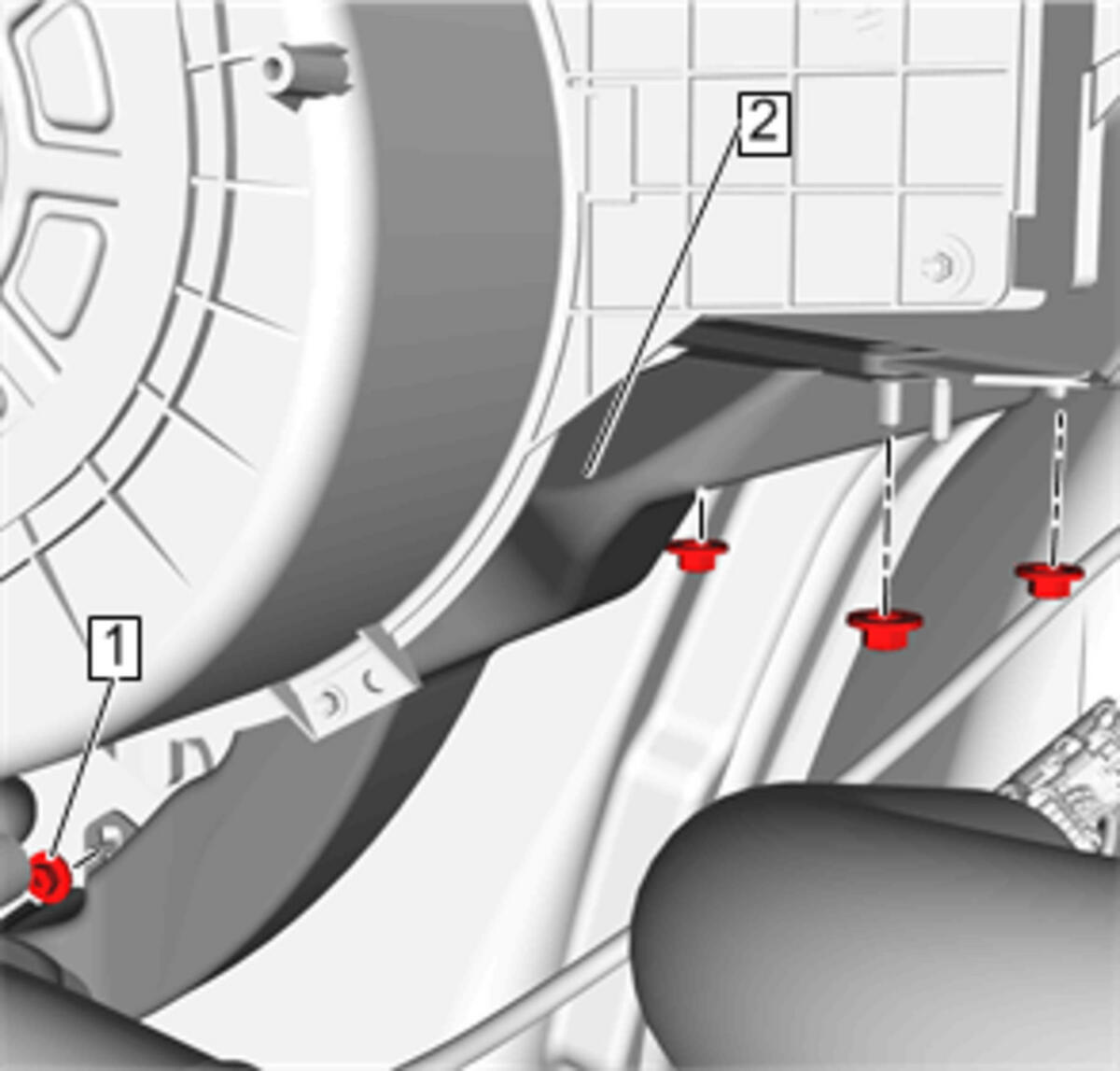

  5. GM4824123Courtesy of GENERAL MOTORS COMPANY

    Plenum Drain Tube Nut (1) - Remove [4x]

  6. Plenum Drain Tube (2) - Remove
