Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4590238Courtesy of GENERAL MOTORS COMPANY

    Radiator Surge Tank (1) - Remove - Radiator Surge Tank Replacement (LWN)

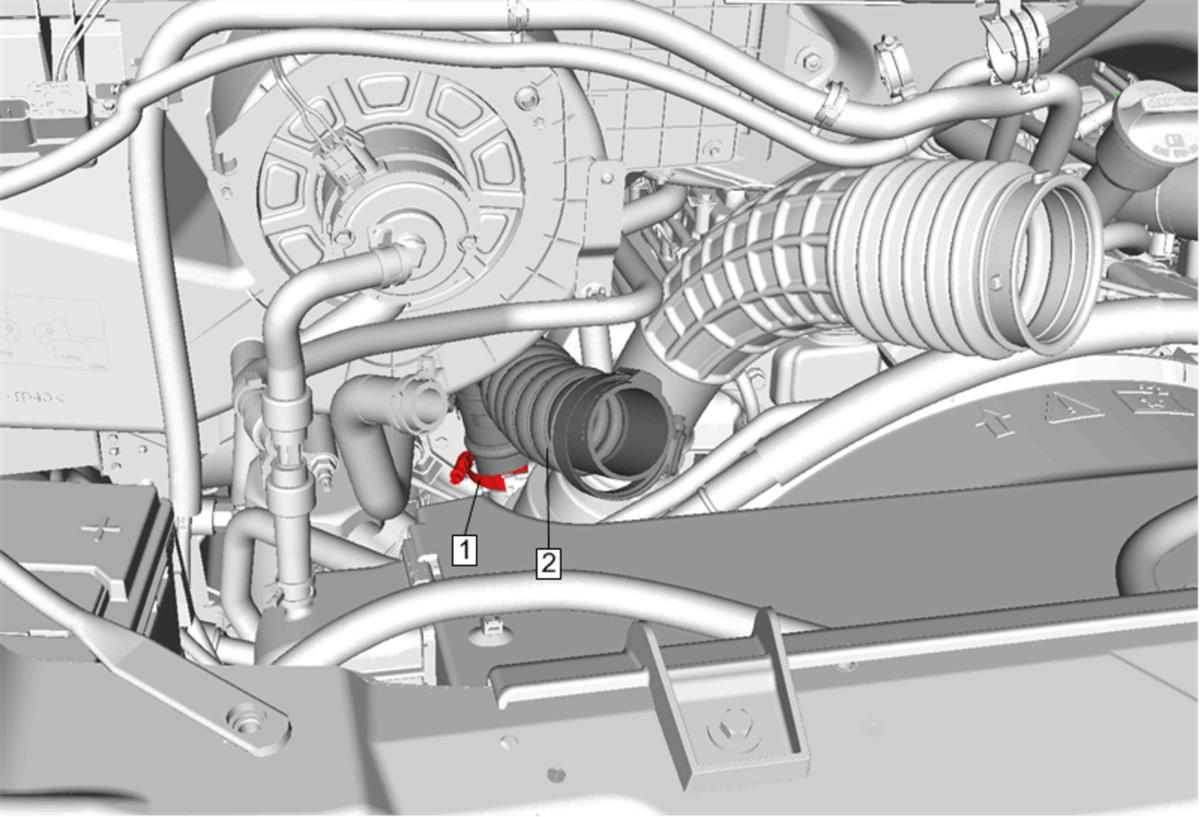

  2. GM4603126Courtesy of GENERAL MOTORS COMPANY

    Charge Air Cooler Inlet Hose (2) - Remove Charge Air Cooler Inlet Air Hose Replacement

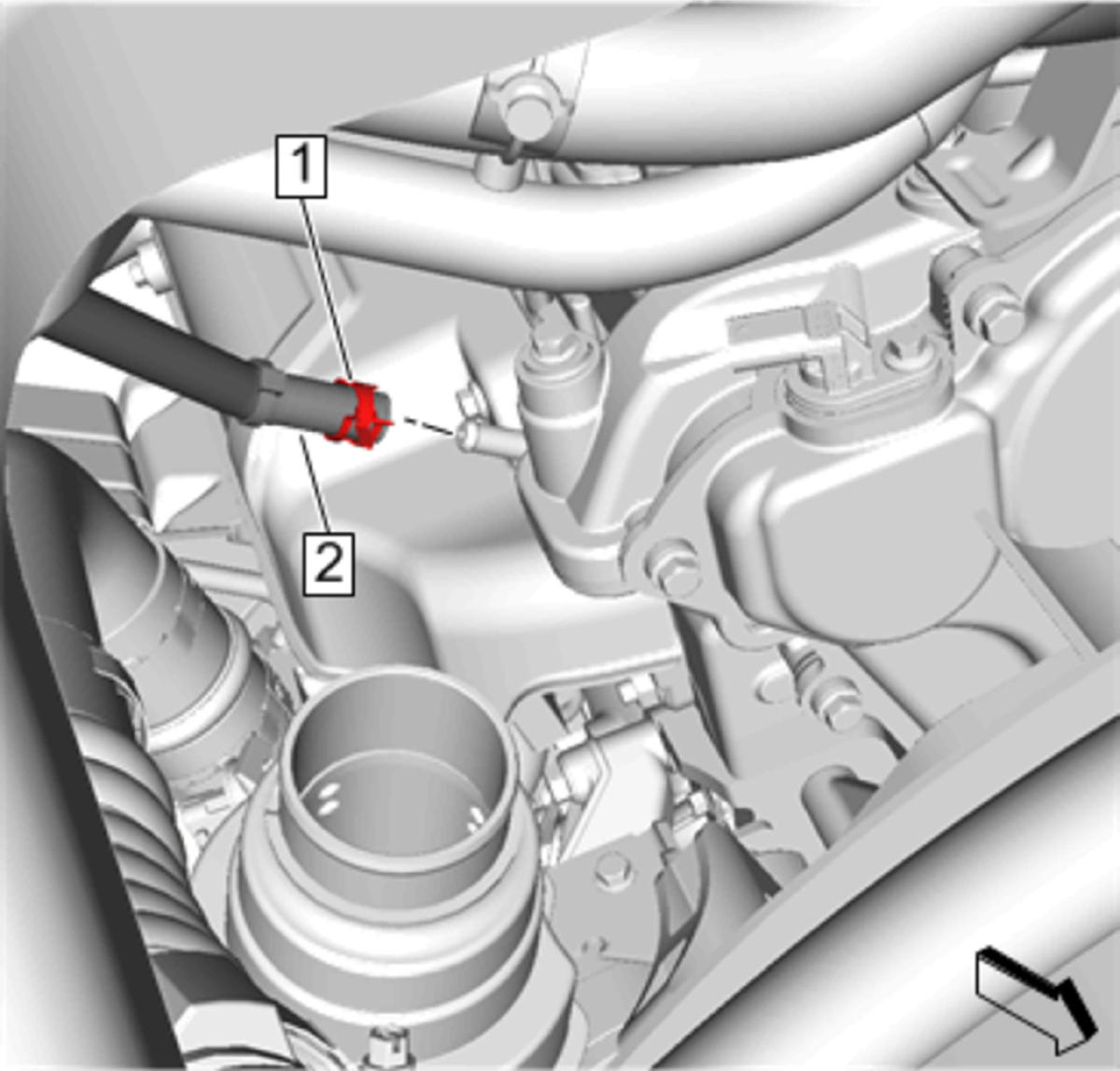

  3. GM4590522Courtesy of GENERAL MOTORS COMPANY

    Radiator Vent Inlet Hose (2) - Disconnect - Radiator Vent Inlet Hose Replacement (LWN) , or Radiator Vent Inlet Hose Replacement (L96, LC8)

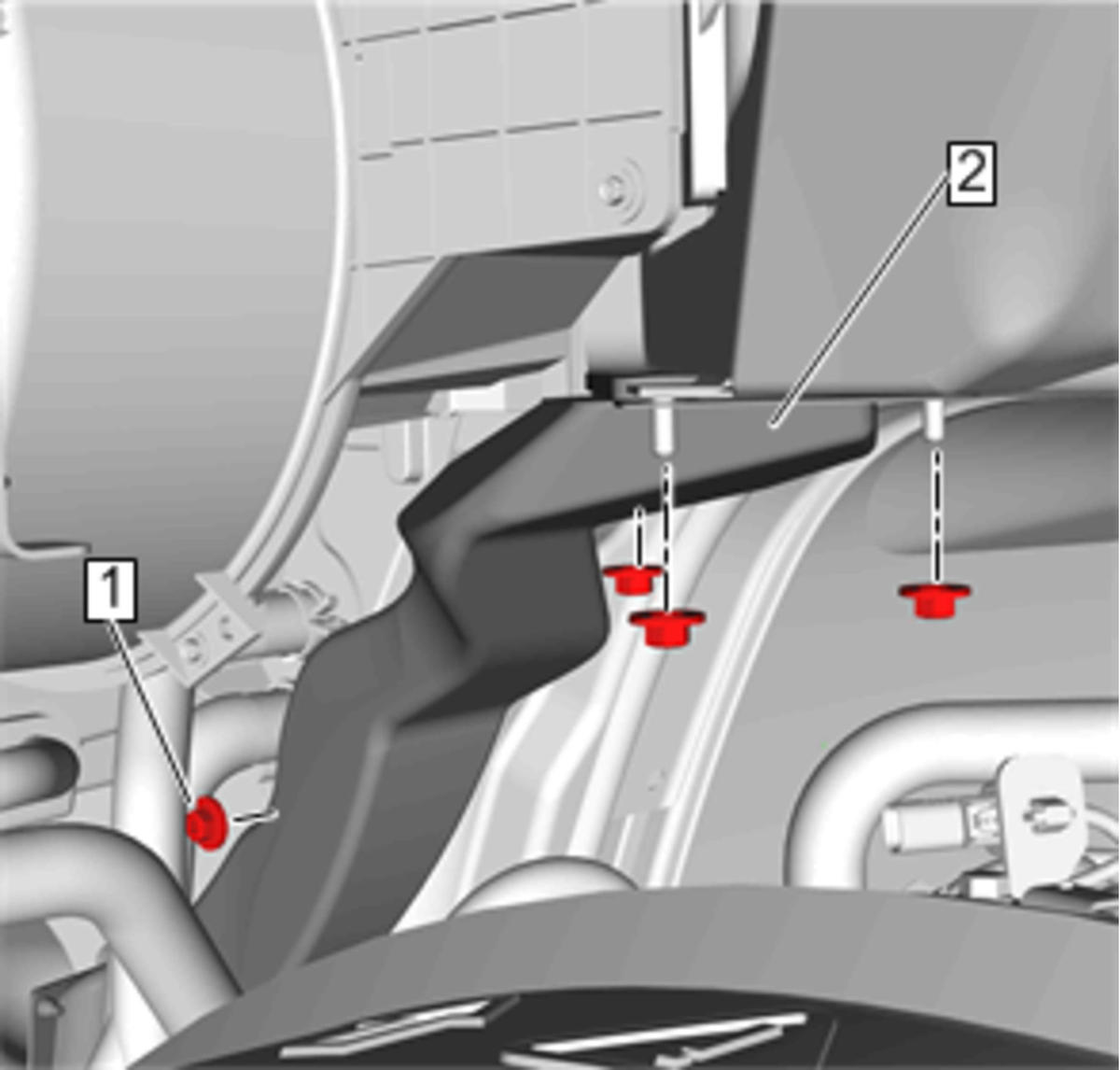

  4. GM4824492Courtesy of GENERAL MOTORS COMPANY

    Plenum Drain Tube Nut (1) - Remove [4x]

  5. Plenum Drain Tube (2) - Remove
