Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Remove the starter motor. Starter Replacement (LWN) , or Starter Replacement (L96, LC8) , or Starter Replacement (LV1)
Temporarily install the left engine mount bracket and engine mount. Engine Mount Replacement - Left Side
Remove the rear propeller shaft. Propeller Shaft Replacement (With M5U)
Remove the catalytic converter. Catalytic Converter Replacement (LWN) , or Catalytic Converter Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

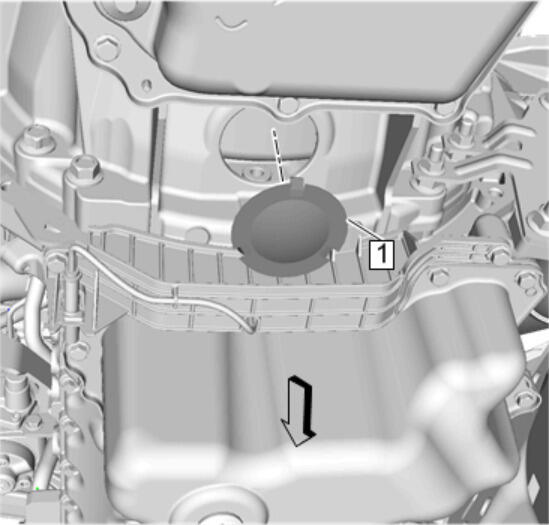

Remove the torque converter access plug (1).
Courtesy of GENERAL MOTORS COMPANY

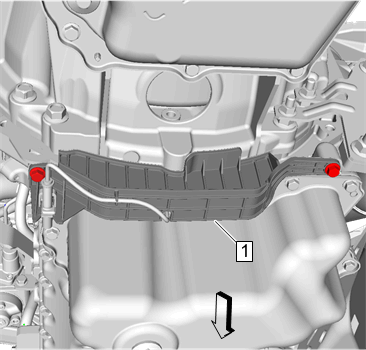

Remove the crankshaft position sensor cover (1). Crankshaft Position Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

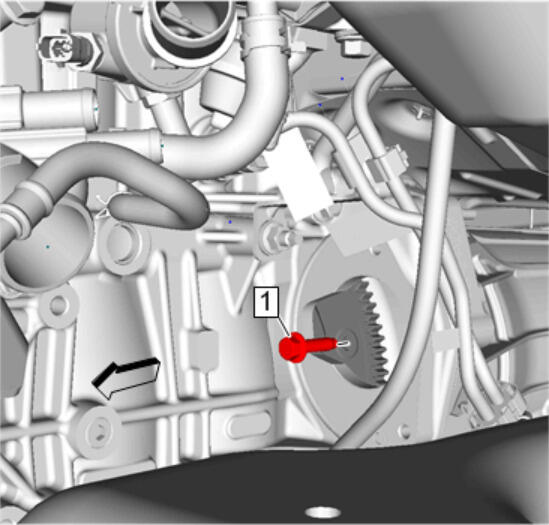

Remove the flywheel to torque converter bolts (1).
Courtesy of GENERAL MOTORS COMPANY

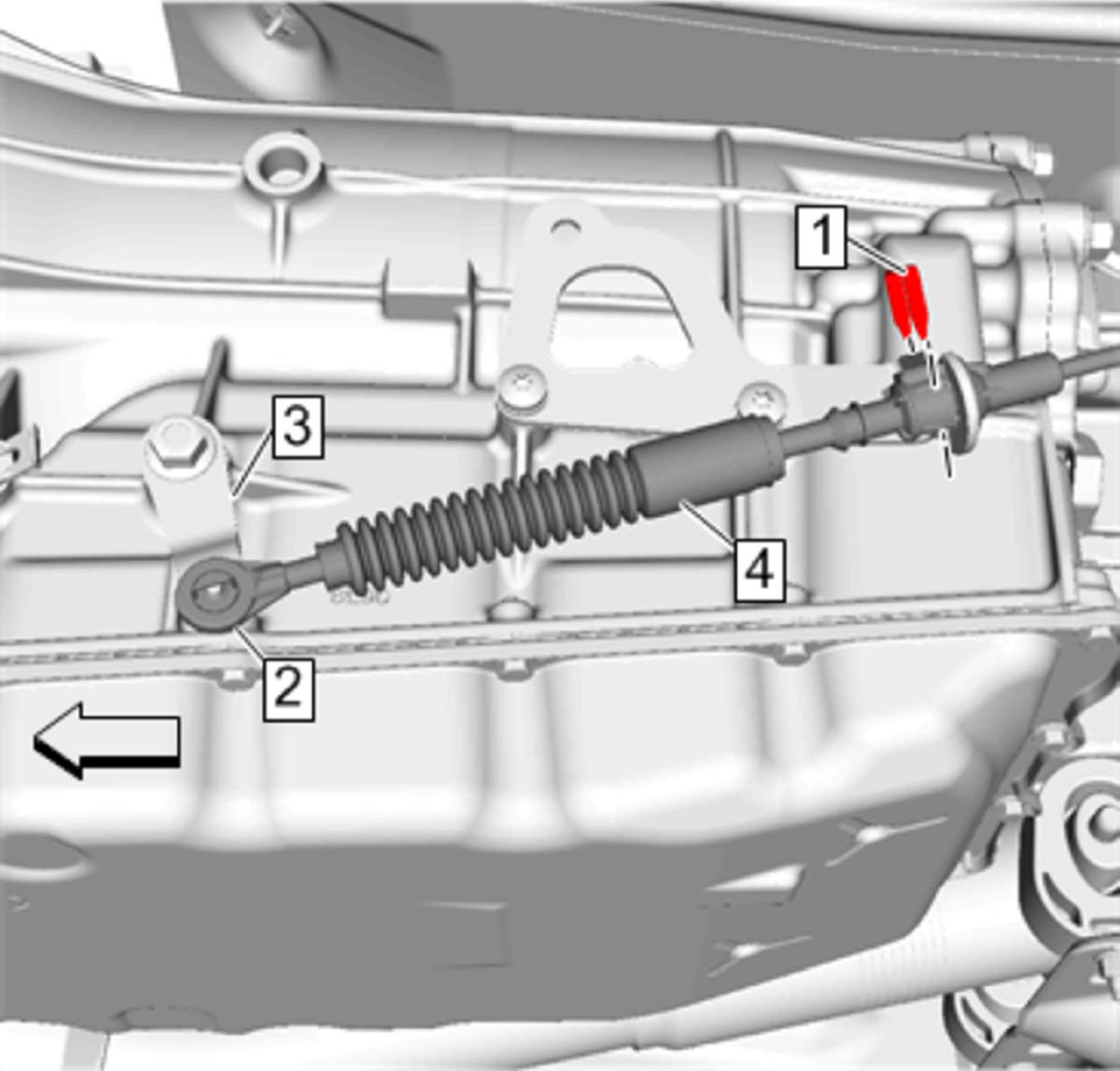

Remove the range selector cable retaining clip (1) from the transmission range selector cable.
Remove the range selector cable (2) from the range selector lever ball stud (3).
Position the range selector lever cable (4) out of the way.
Disconnect the transmission electrical connector from the transmission.
Remove the wire harness from the transmission.
Courtesy of GENERAL MOTORS COMPANY

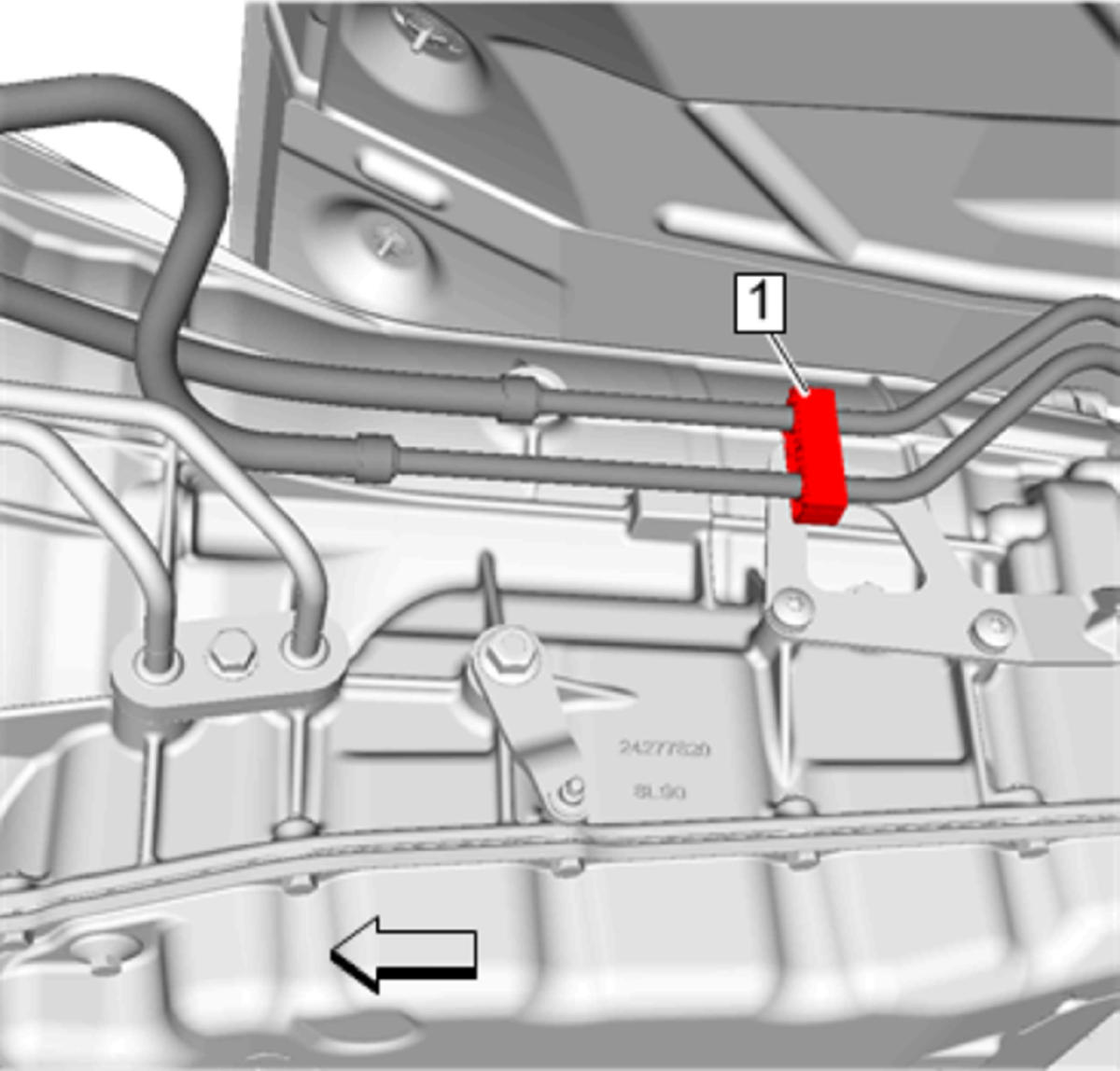

Disconnect the clip (1) that secures the fuel line bracket to the left side of the transmission.
Disconnect the clip that secures the fuel line bracket to the rear of the transmission.
Position the fuel lines out of the way.
Courtesy of GENERAL MOTORS COMPANY

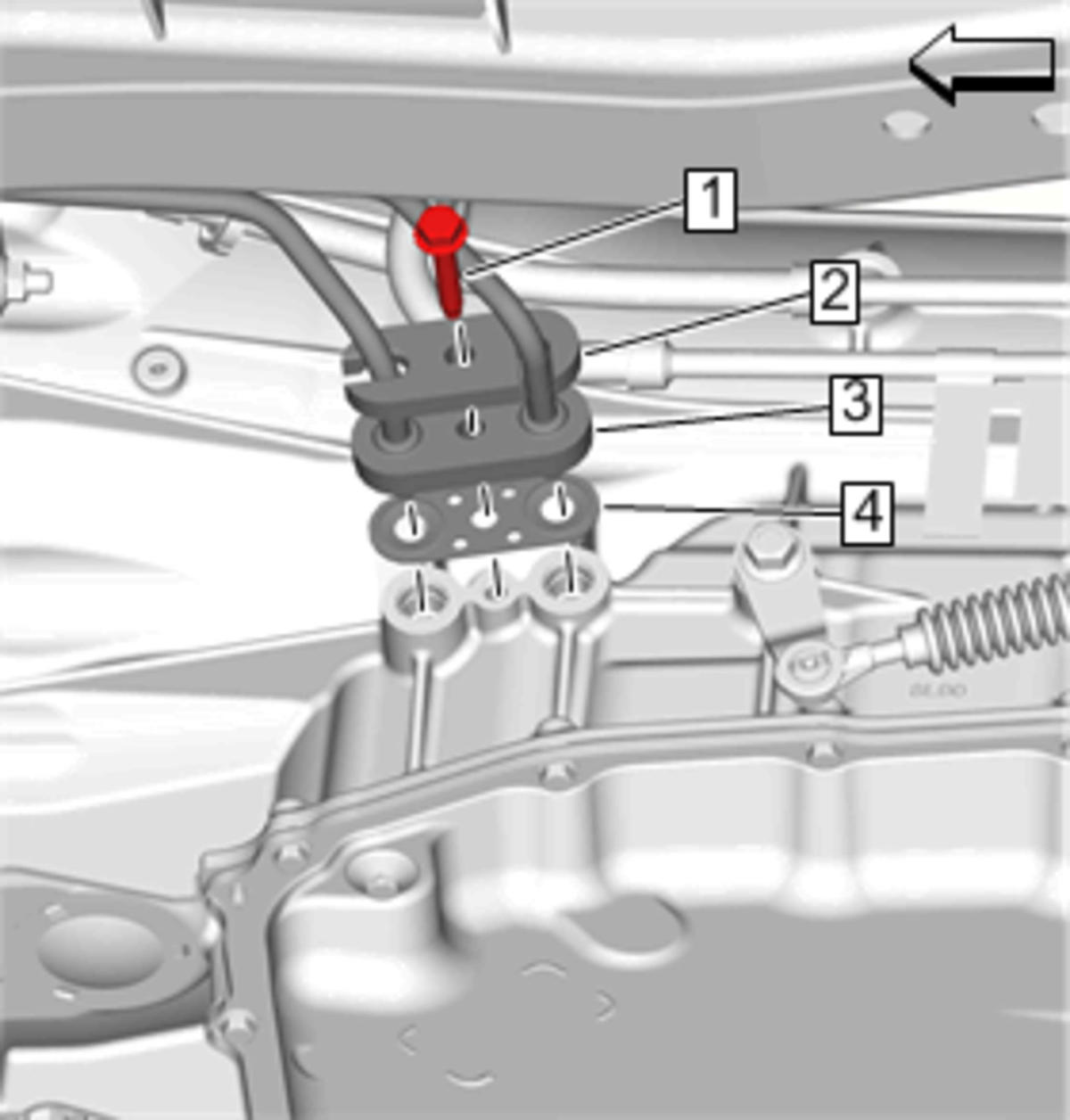

Disconnect the transmission oil cooler hose/pipe (2) from the transmission. Transmission Fluid Cooler Hose/Pipe Replacement (M5U)
Support the transmission with a transmission jack.
Remove the transmission mount. Transmission Mount Replacement
Secure the transmission to the transmission jack using a suitable strap or chain.
Lower the transmission to gain access to the top and sides of the transmission.
Courtesy of GENERAL MOTORS COMPANY

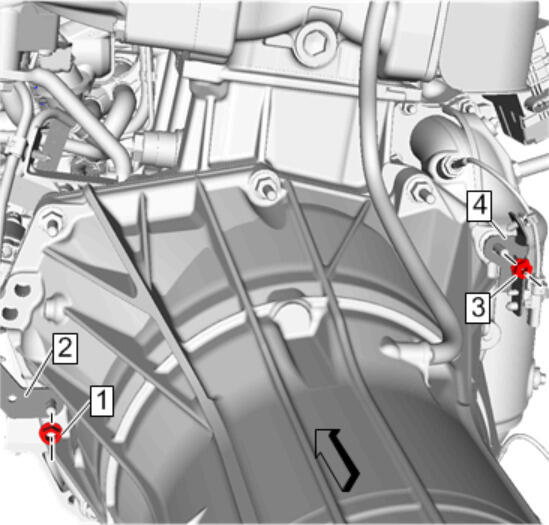

Remove the nuts (1, 4) then reposition the brackets (2, 3) out of the way.
Courtesy of GENERAL MOTORS COMPANY

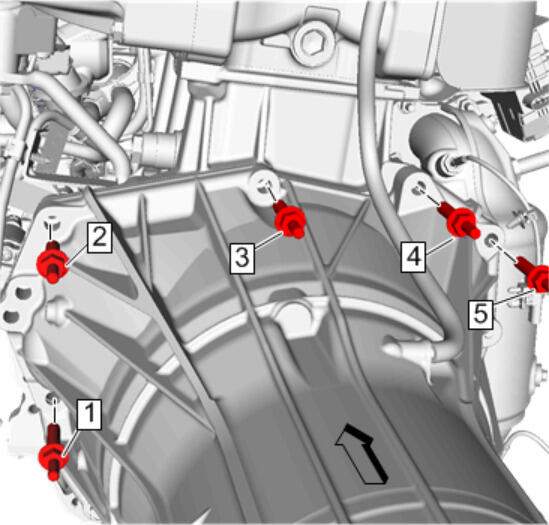

Remove the bolts (1, 2, 3, 4, 5) securing the transmission to the engine.
Courtesy of GENERAL MOTORS COMPANY

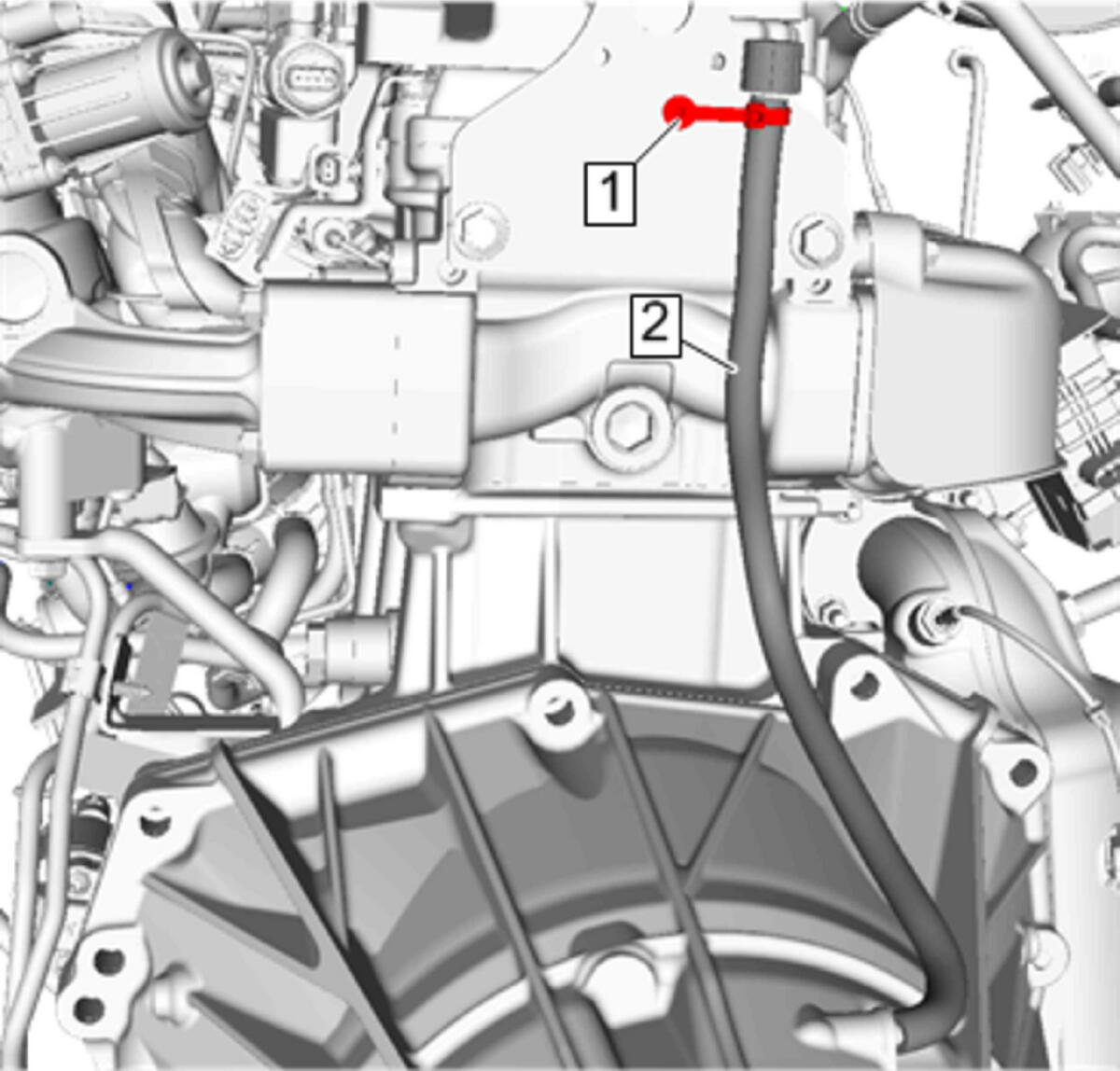

Disconnect the transmission vent hose (2) from the transmission.
Courtesy of GENERAL MOTORS COMPANY

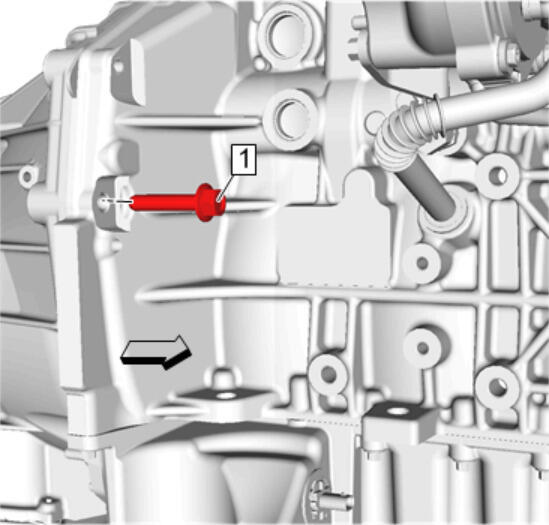

Remove the right side transmission bolt (1).
Courtesy of GENERAL MOTORS COMPANY

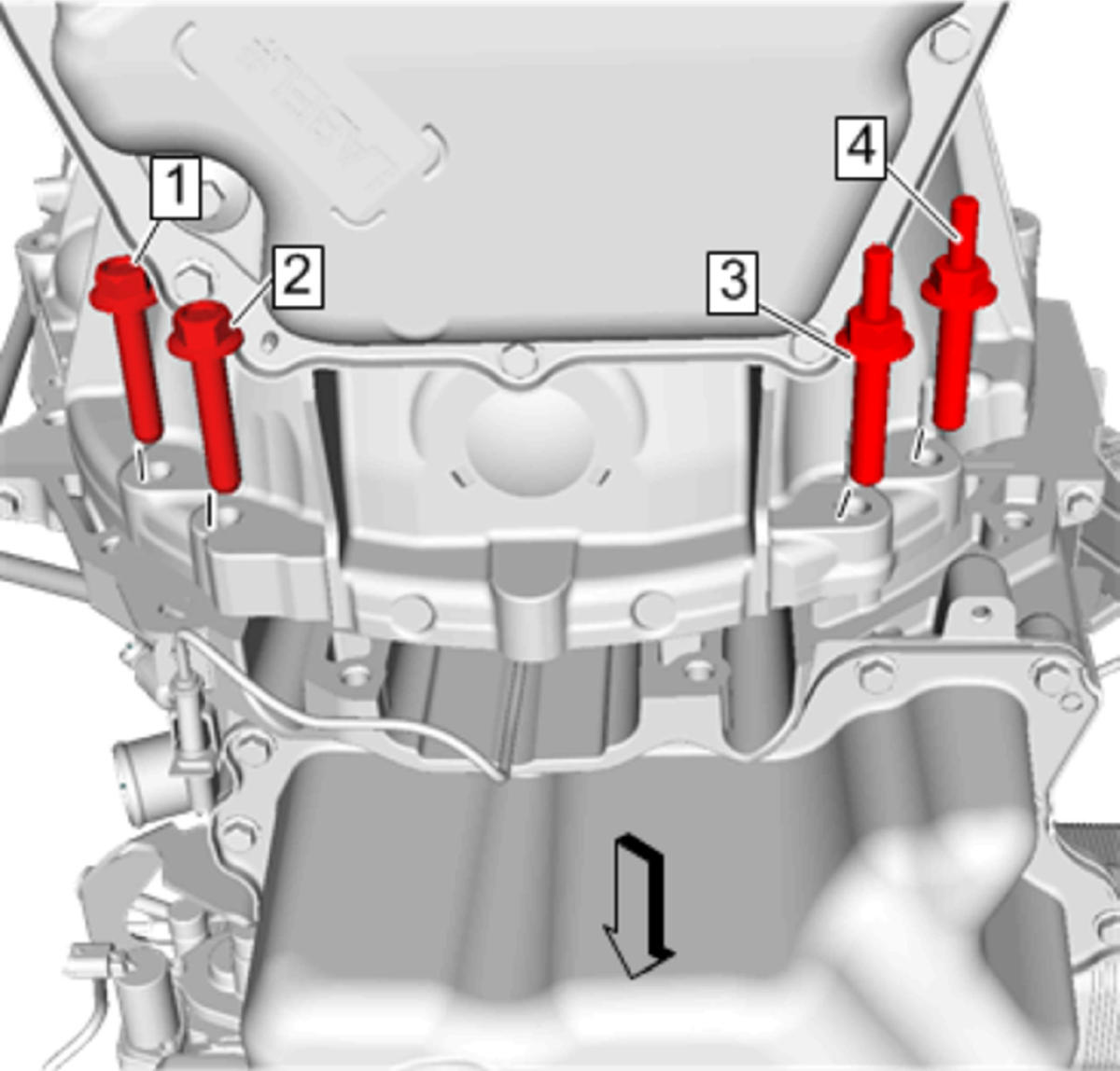

Remove the lower transmission bolts (1, 2, 3, 4).
Pull the transmission straight back.
Install the J-21366 converter holding strap onto the transmission bell housing to retain the torque converter.
Flush and flow test the transmission oil cooler and lines. Transmission Fluid Cooler Flow Test and Flushing
