Torque Converter Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure WARNING: The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage. Transmission Replacement (With LV1 Engine) , or Transmission Replacement (With LWN Engine)

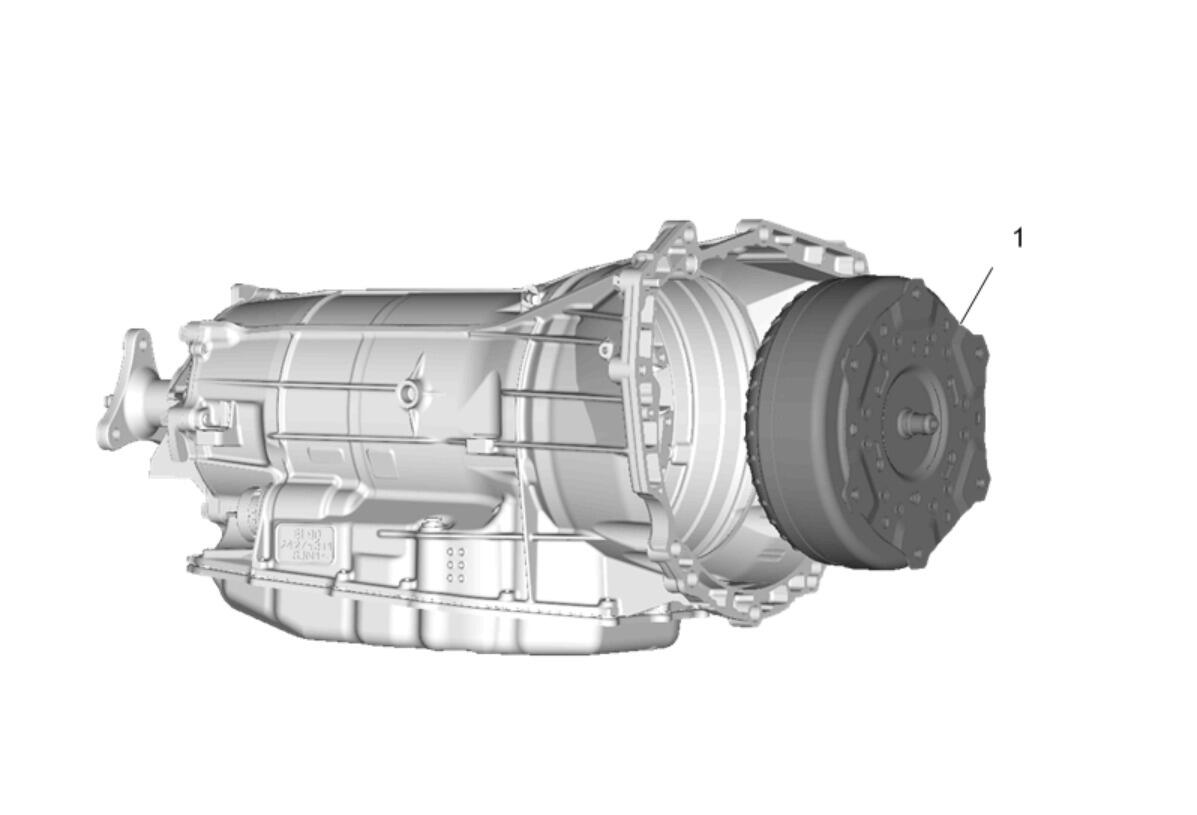

1	Torque Converter Assembly Procedure Place a drain pan under the front of the transmission. Use care not to damage the torque converter seal during the installation procedure. Spin the torque converter to engage the turbine shaft splines in the torque converter hub, the stator shaft splines in the stator race and to engage the drive flats on the converter pump hub with the oil pump drive gear. NOTE: Lubricate the converter pump hub OD and the torque converter seal with clean transmission fluid.

Callout

Component Name

Preliminary Procedure

WARNING:

The torque converter must be held to the torque converter housing by a retaining device such as shipping brackets. Without the retaining device, the torque converter may slide forward, disengaging the oil pump, or may fall completely out of the transmission causing personal injury and/or property damage.

Transmission Replacement (With LV1 Engine) , or Transmission Replacement (With LWN Engine)

Torque Converter Assembly

Procedure

Place a drain pan under the front of the transmission.
Use care not to damage the torque converter seal during the installation procedure.
Spin the torque converter to engage the turbine shaft splines in the torque converter hub, the stator shaft splines in the stator race and to engage the drive flats on the converter pump hub with the oil pump drive gear.

NOTE:

Lubricate the converter pump hub OD and the torque converter seal with clean transmission fluid.
