Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

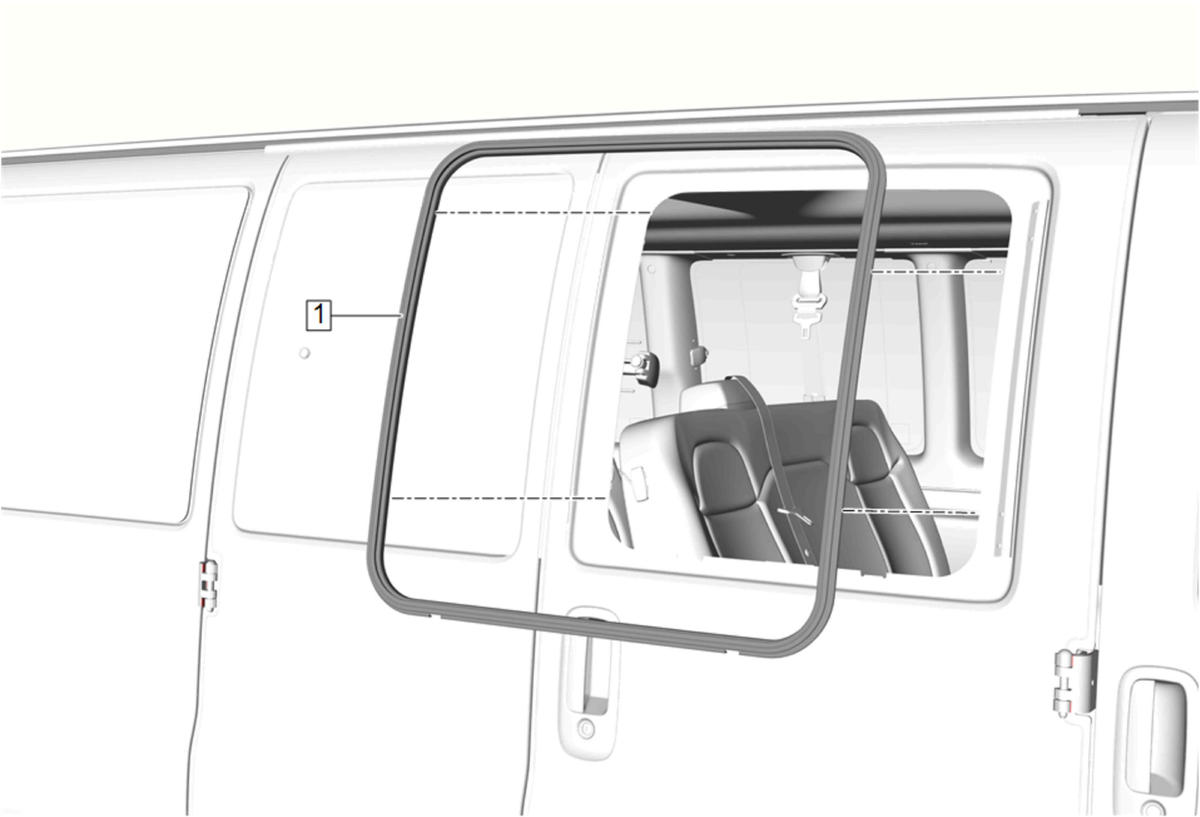

Install the side door window weatherstrip (1) to the window opening pinch-weld flange.
- Press the side door window weatherstrip (1) into place.
- Body Side Window - Install - Body Side Window Replacement (Stationary) , or Body Side Window Replacement (Swing out)
- Rear Side 60/40 Door Trim Panel - Install - Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door)
