Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel.

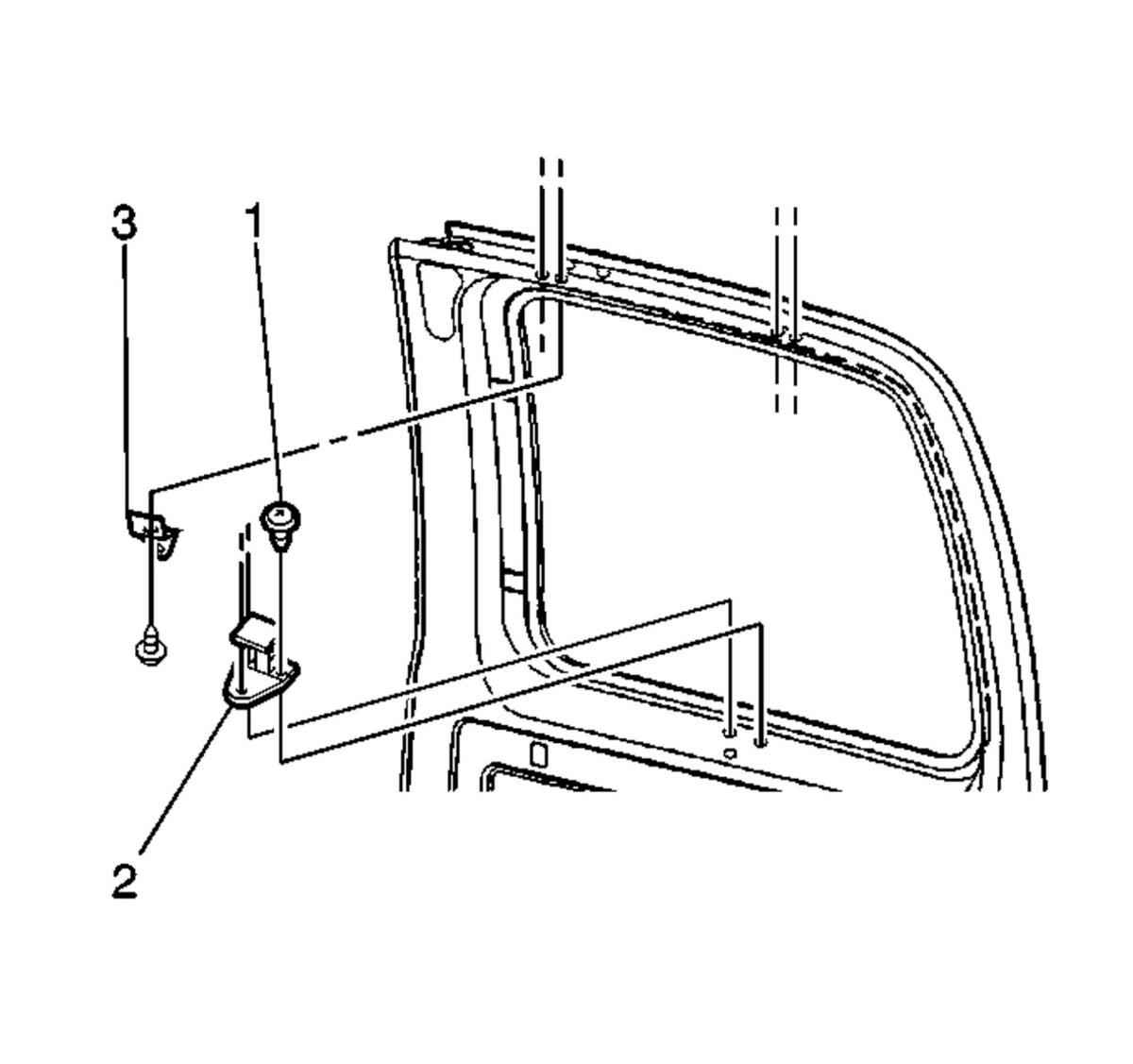

  2. GM326818Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Refer to Glass and Sheet Metal Handling Warning .

    Remove the screws (1) that retain the latch to the door.

  3. Remove the screws that retain the hinge (3) to the door.
  4. Remove the window assembly from the vehicle.
