Front Side Door Window Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

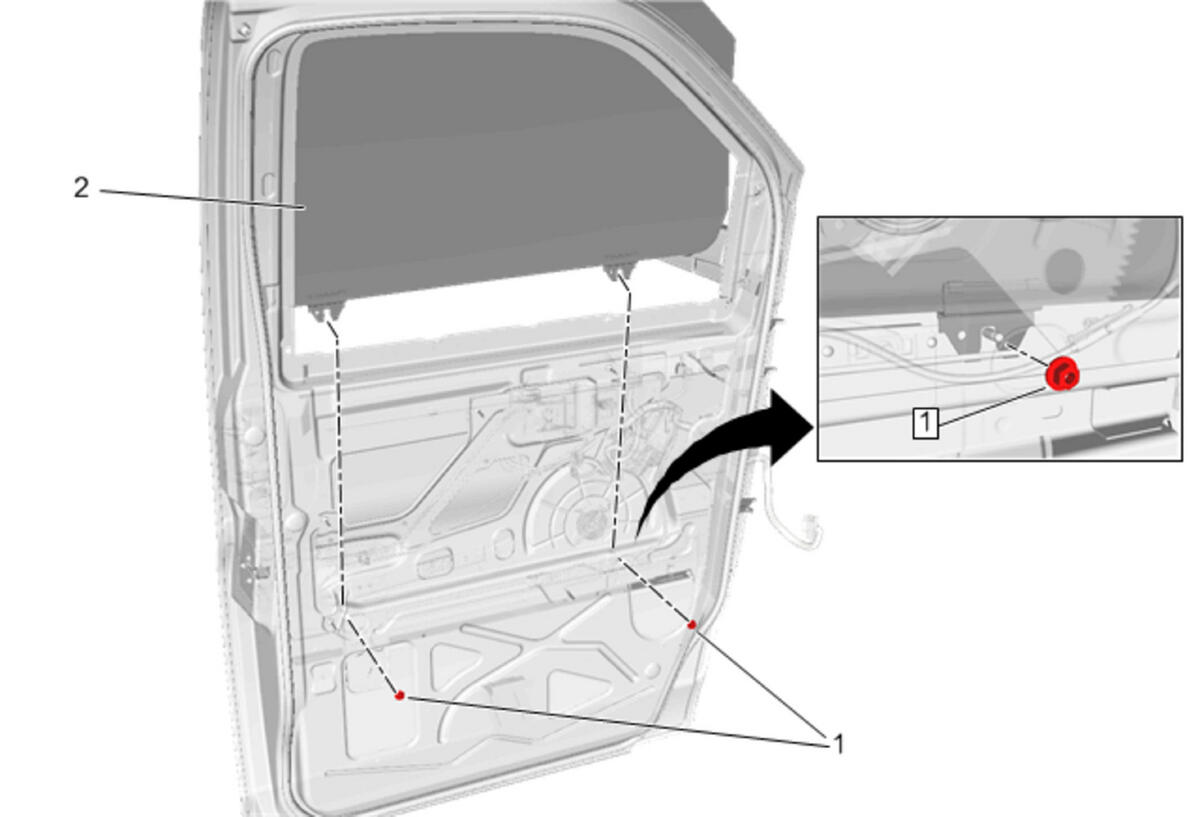

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedure Front Side Door Window Channel Replacement - Upper Front
1	Front Side Door Window Sash Nut [2x] Procedure Lower window to gain access to front side door window sash nuts. Tighten 10 N.m (88 lb in)
2	Front Side Door Window Procedure Lift window and remove from outside of vehicle. Inspect the door window for proper operation before installing the door trim panel.

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedure Front Side Door Window Channel Replacement - Upper Front

Front Side Door Window Sash Nut [2x]
Procedure
Lower window to gain access to front side door window sash nuts.
Tighten
10 N.m (88 lb in)

Front Side Door Window

Procedure

Lift window and remove from outside of vehicle.
Inspect the door window for proper operation before installing the door trim panel.
