Front Side Door Window Module Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

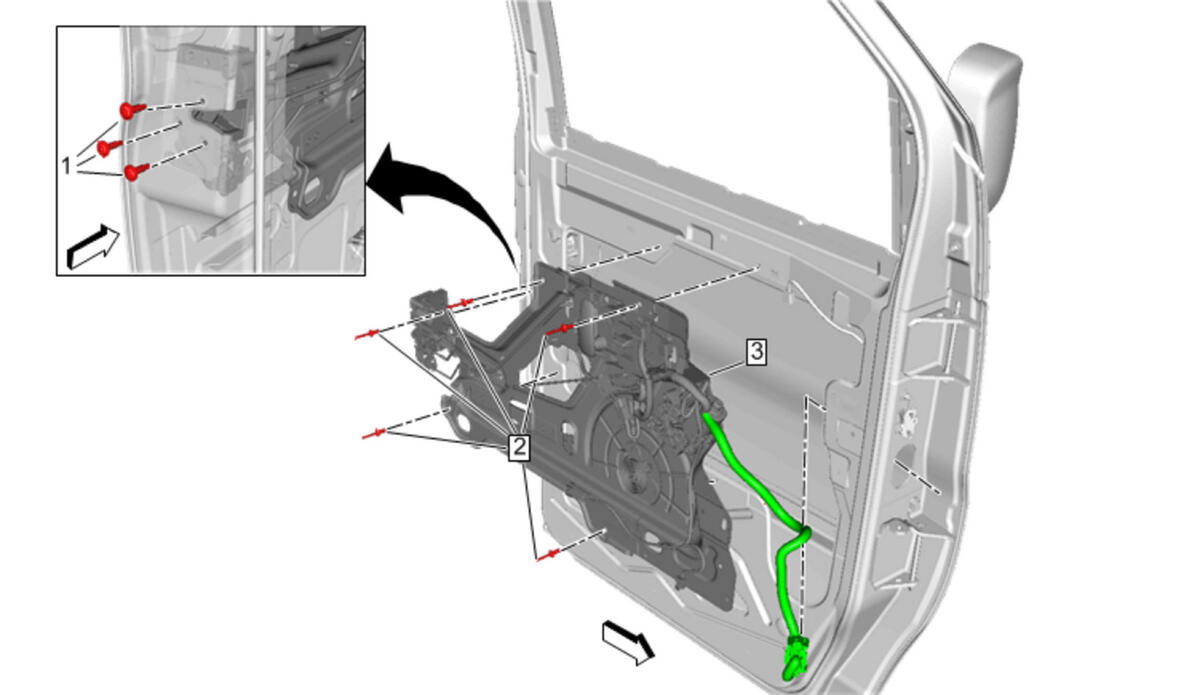

Callout	Component Name
Preliminary Procedure Body Hinge Pillar Trim Panel Replacement Front Side Door Window Channel Replacement - Lower Rear
1	Front Side Door Lock Screw [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Window Regulator Module Rivet [5x] CAUTION: Refer to Eye Protection Warning .
3	Front Side Door Window Regulator Module Procedure Front Side Door Lock Cylinder Rod - Disconnect Front Side Door Outside Handle Rod - Disconnect Disconnect all electrical connectors.
