Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Note the position of the door window regulator handle with the window in the full up position.
  2. Place the door window regulator handle in the upward position.

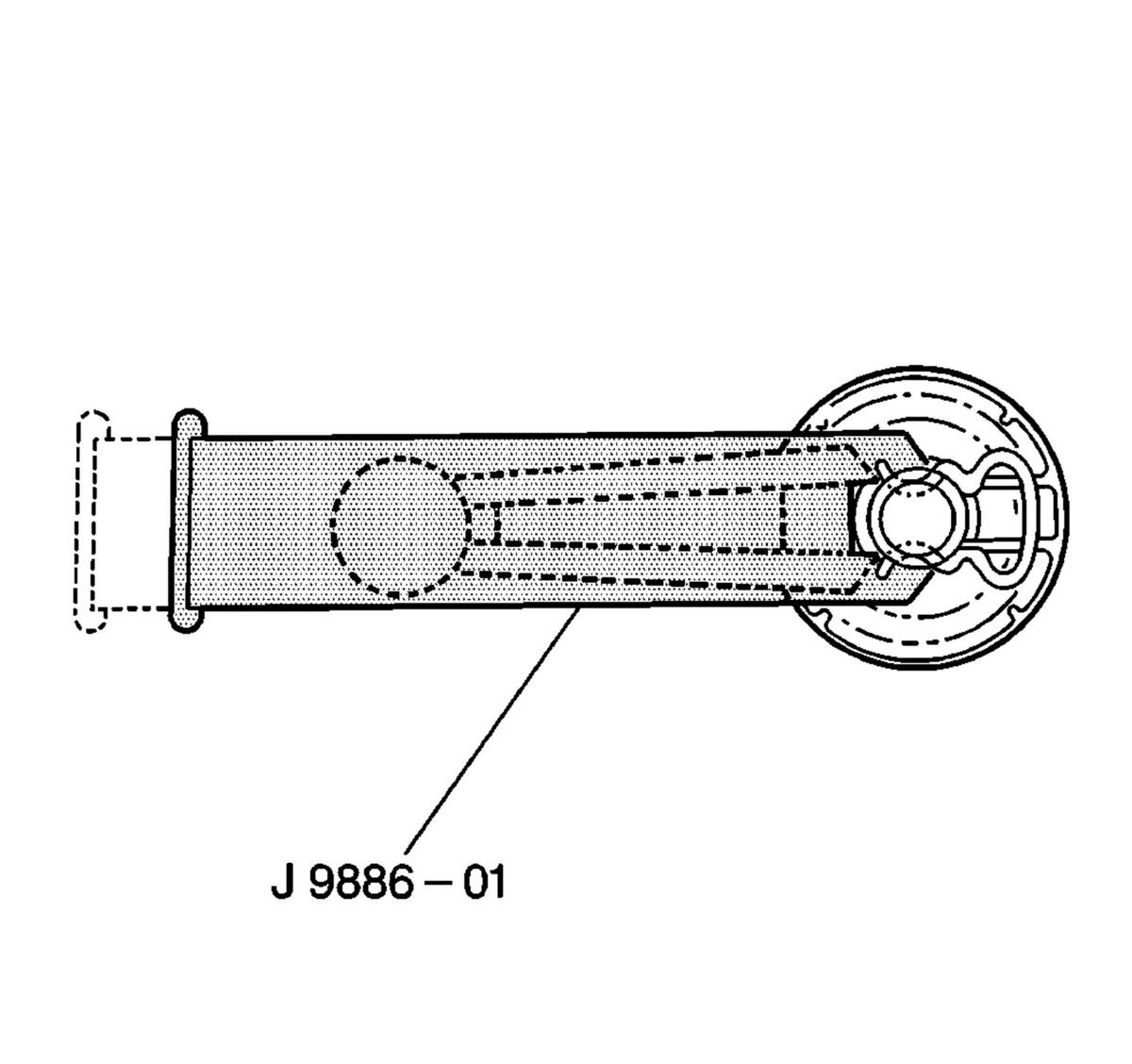

  3. GM5087Courtesy of GENERAL MOTORS COMPANY

    Remove the spring clip by inserting J 9886-01  door handle clip remover between the window regulator handle and the door window regulator handle bearing plate. Press down to remove the spring clip.

  4. Remove the window regulator handle.
  5. Remove the door window regulator handle bearing plate.
