Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the window to the full up position.

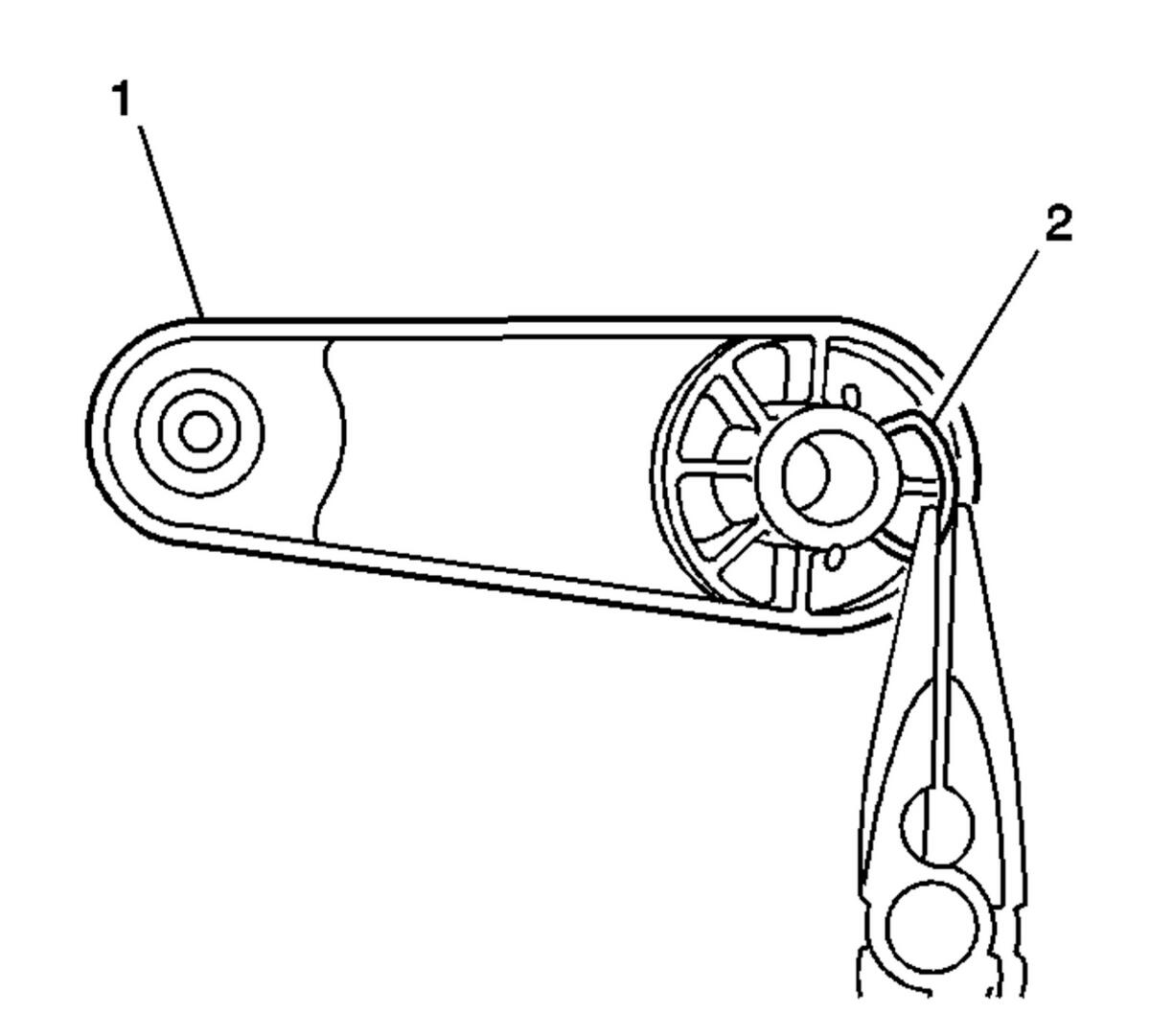

  2. GM748354Courtesy of GENERAL MOTORS COMPANY

    Install the spring clip (2) to the door window regulator handle (1).

  3. Install the door window regulator handle (1) bearing plate.
  4. Position the door window regulator (1) handle to the regulator.
  5. Install the door window regulator handle (1), press in until fully seated.
