Side Door Opening Weatherstrip Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

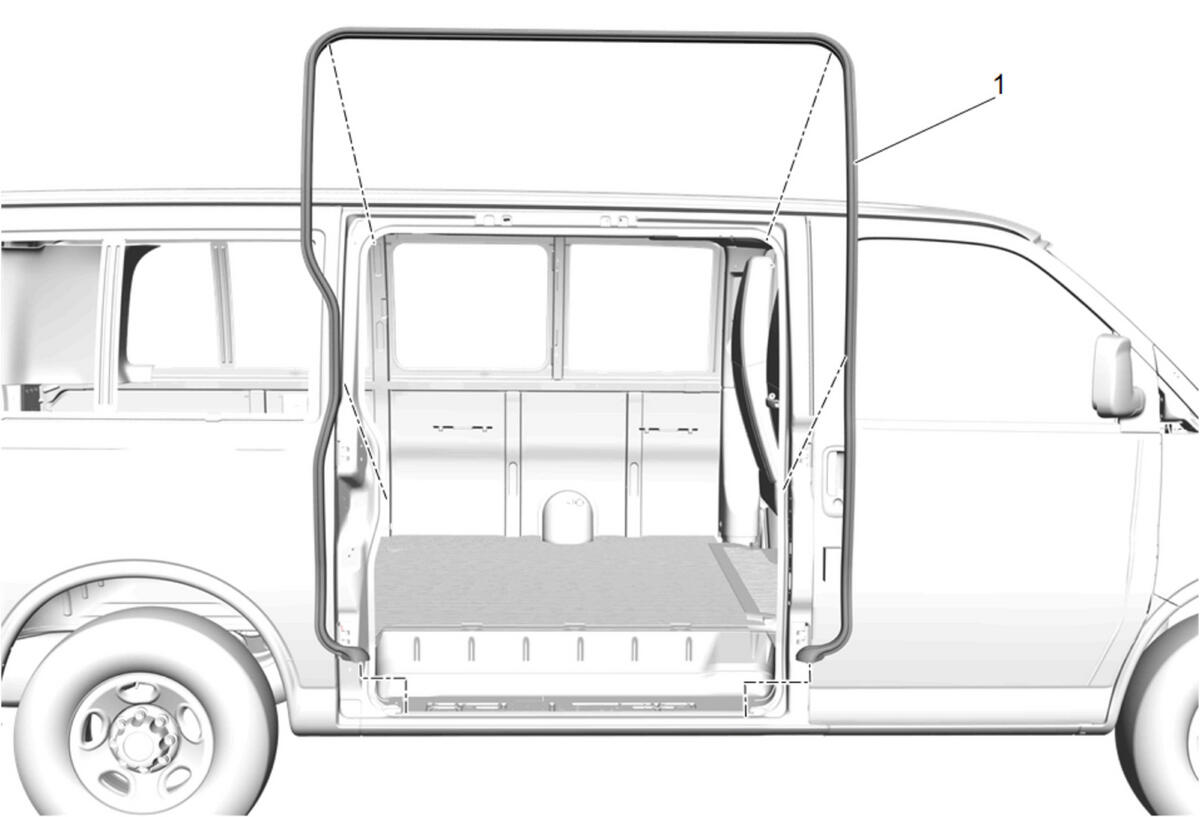

GM5126648Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Lower Pillar Garnish Molding Replacement
  2. Body Side Trim Panel Replacement - Right Side
  3. Rear Side Door Step Mat Replacement
1 Side Door Opening Weatherstrip
Procedure
Release the 2 side door opening weatherstrip retainers.
