Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

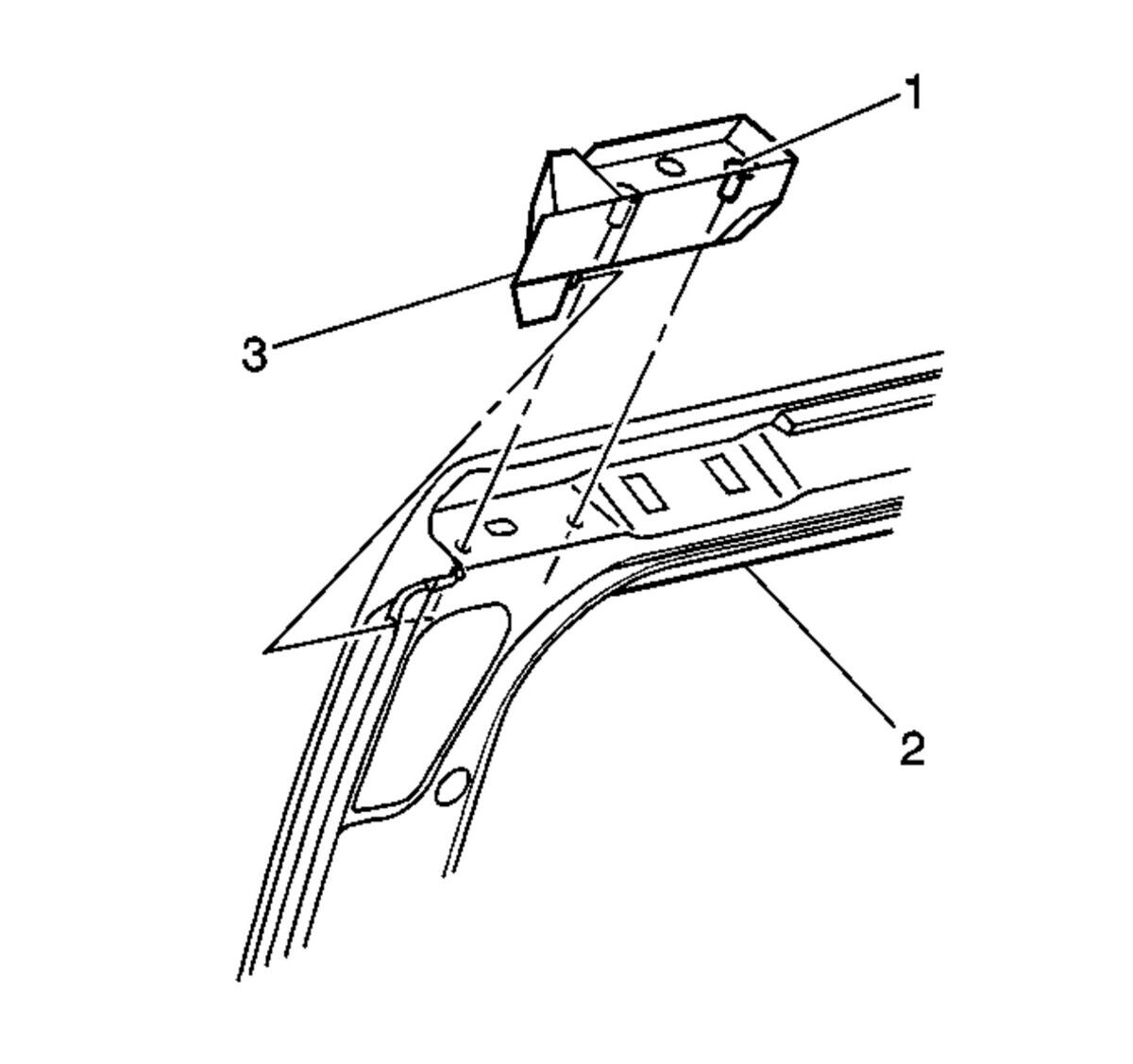

  1. GM442561Courtesy of GENERAL MOTORS COMPANY

    Remove peel-off liner from saturated foam.

  2. Spray 85 percent alcohol 15 percent water mixture per GM 9981293 on saturated foam patch.
  3. Locate the part by lining up the two pins (1) on the top of the weather-strip with the holes in the door sheet metal.
  4. Insert the pocket over the door flange and push down the pins until they are fully seated and there are no gaps between the door and the weather-strip (3).
  5. Insert the pin that is located on the pocket into the door sheet metal until it is fully seated and there is no gap between the door and the weatherstrip.
  6. Complete the installation by tucking the bottom inner edge of the weather-strip (3) into the top door flange.
