Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

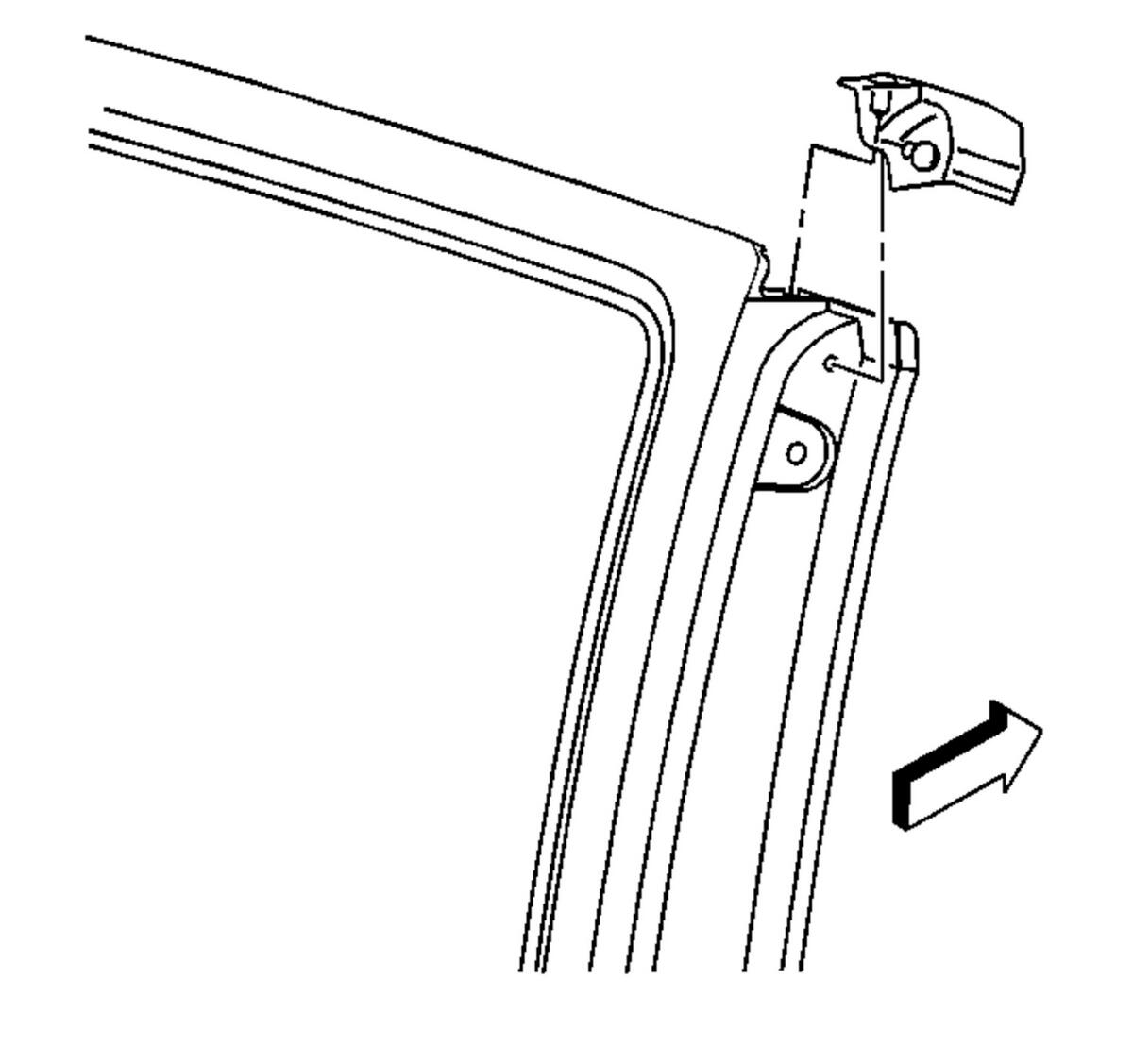

  1. GM334087Courtesy of GENERAL MOTORS COMPANY

    Use 3M® General Purpose Adhesive Cleaner 3M P/N 08987 or the equivalent, if needed, in order to remove the left side rear door upper weather-strip from the door.

  2. Remove the left side rear door upper weather-strip retainers from the holes in the door.
