Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

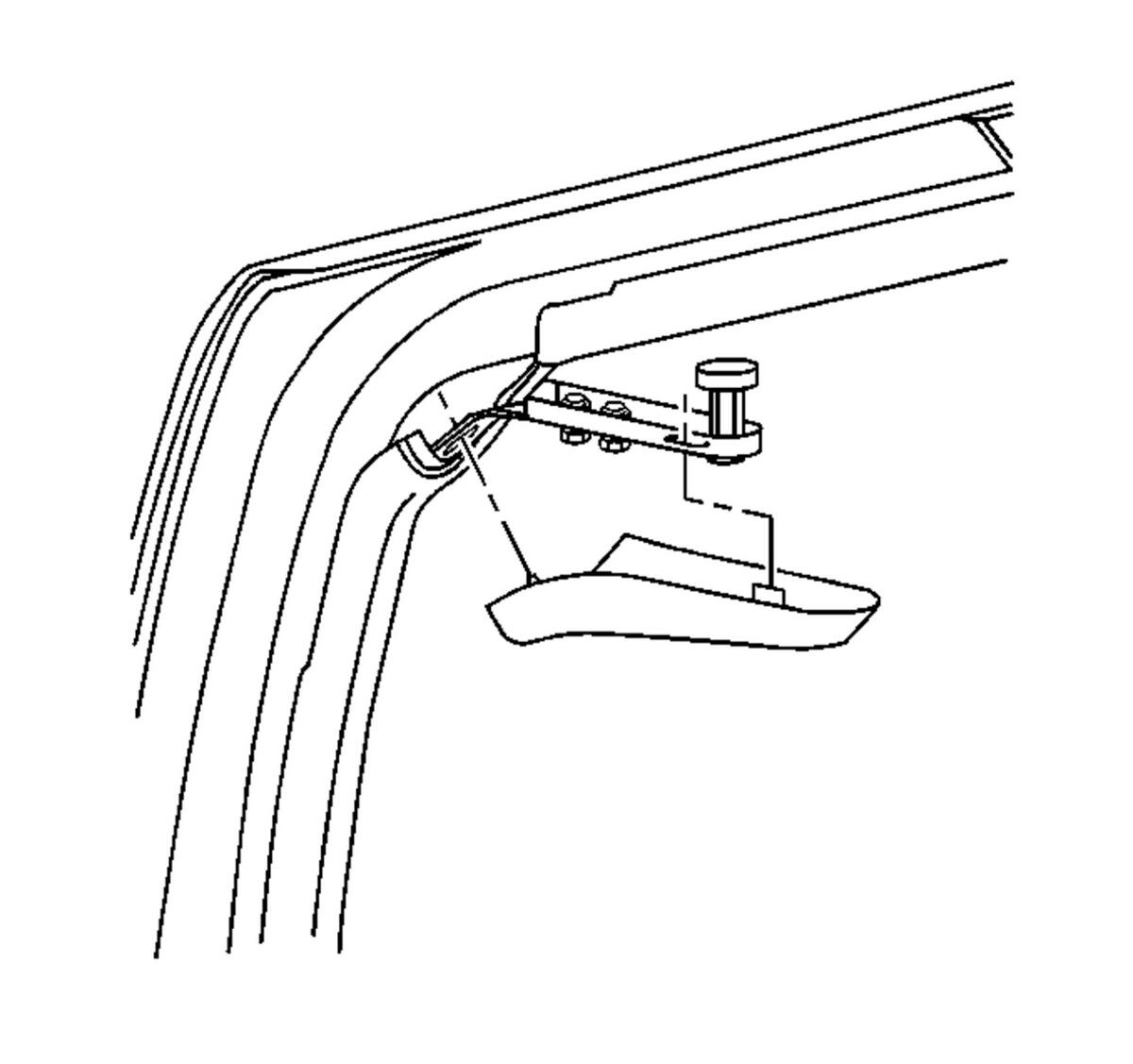

  1. GM334050Courtesy of GENERAL MOTORS COMPANY

    Install the upper roller bracket cover to the vehicle.

  2. Align the upper roller bracket cover into position.

    Press on the cover in order to engage the retaining clips.
