Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

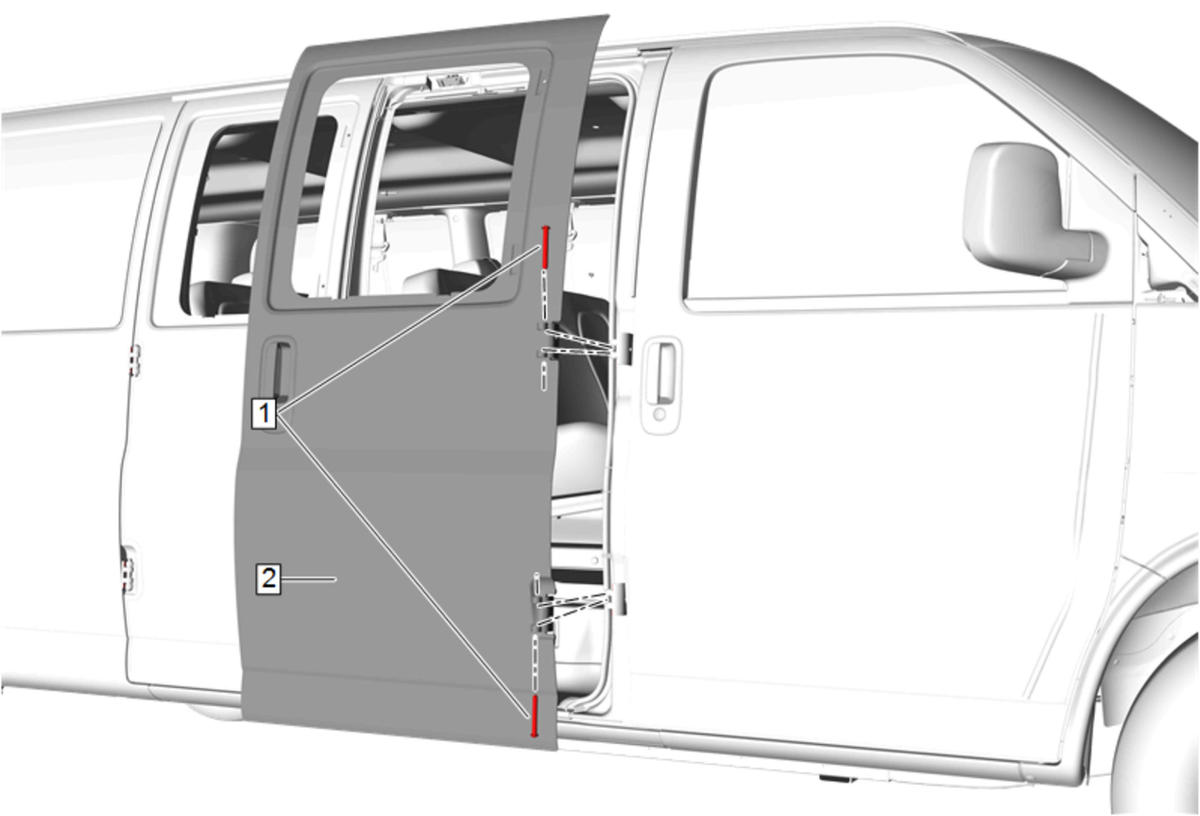

Install the side rear door (2) to the vehicle with an assistant.
- Install the side rear door hinge pins (1) using the J 41226 door hinge pin drillout kit and the J 41226-50 door hinge pin adapter kit.
- Install the latch striker. Rear Side Door Latch Striker Replacement - Lower
- Install the latch handle. Rear Side Door Latch Control Replacement
- Install the upper and the lower door latches. Rear Side Door Latch Replacement - Upper , and Rear Side Door Lower Latch Replacement
- Install the side rear door upper and lower door wedges to the door. Sliding Rear Side Door Locator and Door Side Wedge Replacement (Locator)
- Install the weatherstrips, if needed. Rear Side Door Lower Weatherstrip Replacement , or Intermediate Side Door Window Weatherstrip Replacement
- Install the hinged side window or the stationary side window. Body Side Window Replacement (Stationary)Body Side Window Replacement (Swing out)
- Install the side rear door trim panel. Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door)Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door)
