Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the sliding side door check assembly. Refer to Rear Side Door Check Replacement .
  2. Remove the sliding side door lower roller bracket. Refer to Rear Side Door Lower Roller Bracket Replacement .

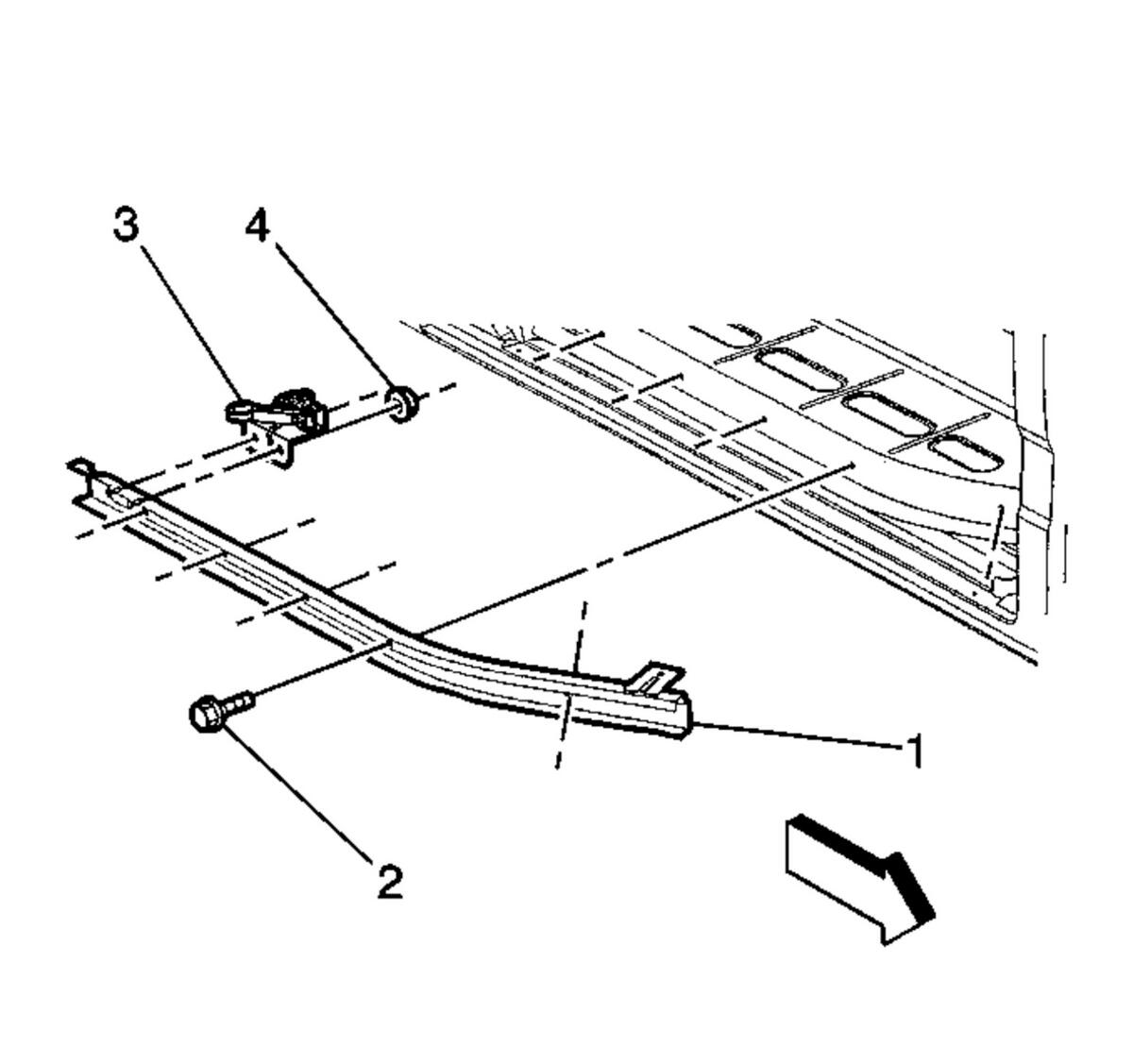

  3. GM334054Courtesy of GENERAL MOTORS COMPANY

    Remove the bolts (2) that retain the sliding side door lower track (1) to the vehicle.

  4. Remove the sliding side door lower track (1) from the vehicle.
