Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Support the bottom of the sliding door during lower roller bracket replacement.

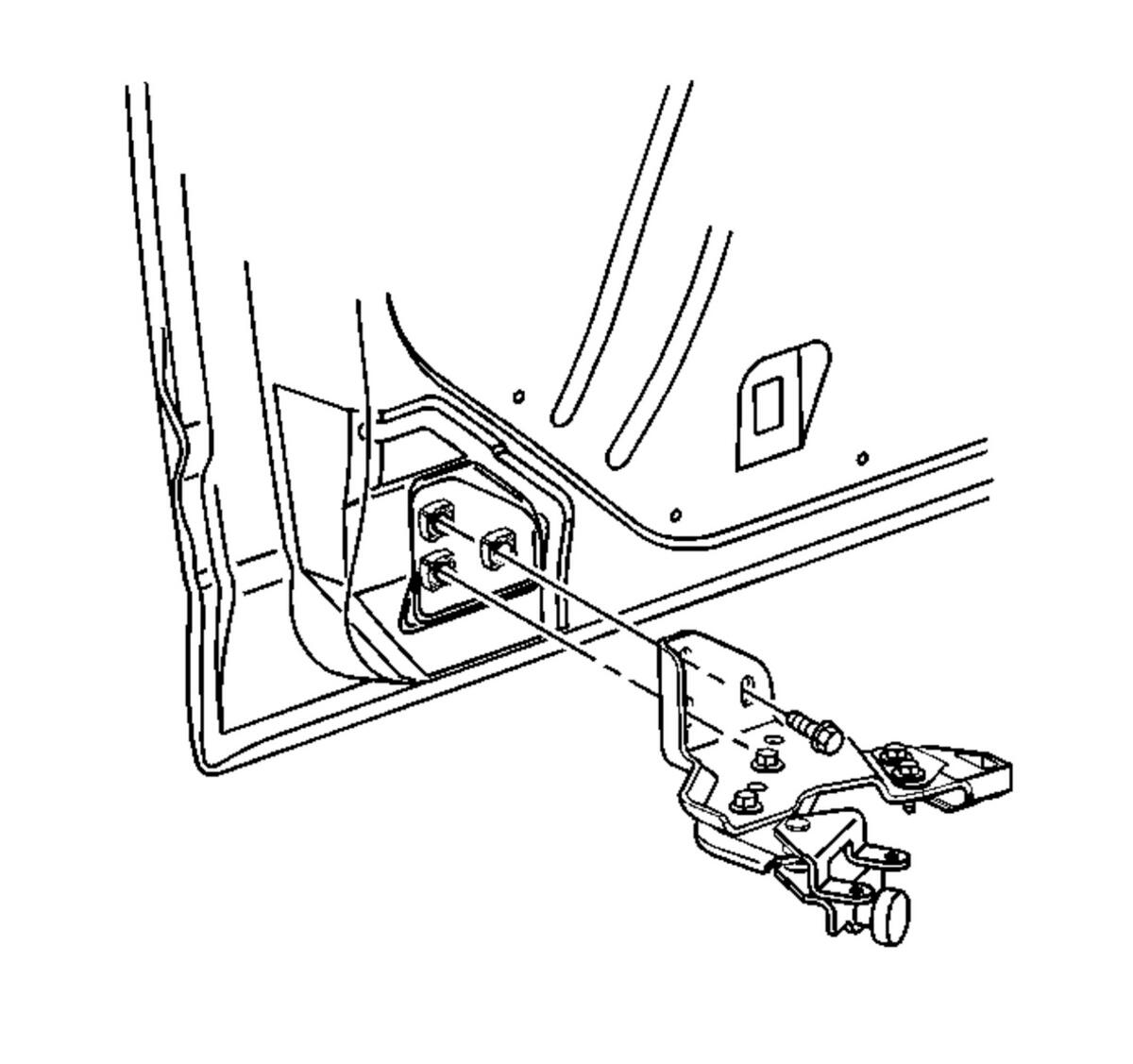

  2. GM334048Courtesy of GENERAL MOTORS COMPANY

    Remove the bolts that retain the sliding side door lower roller bracket to the door.

  3. Remove the sliding side door lower roller bracket from the track.
  4. Remove the sliding side door lower roller bracket from the vehicle.
