Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

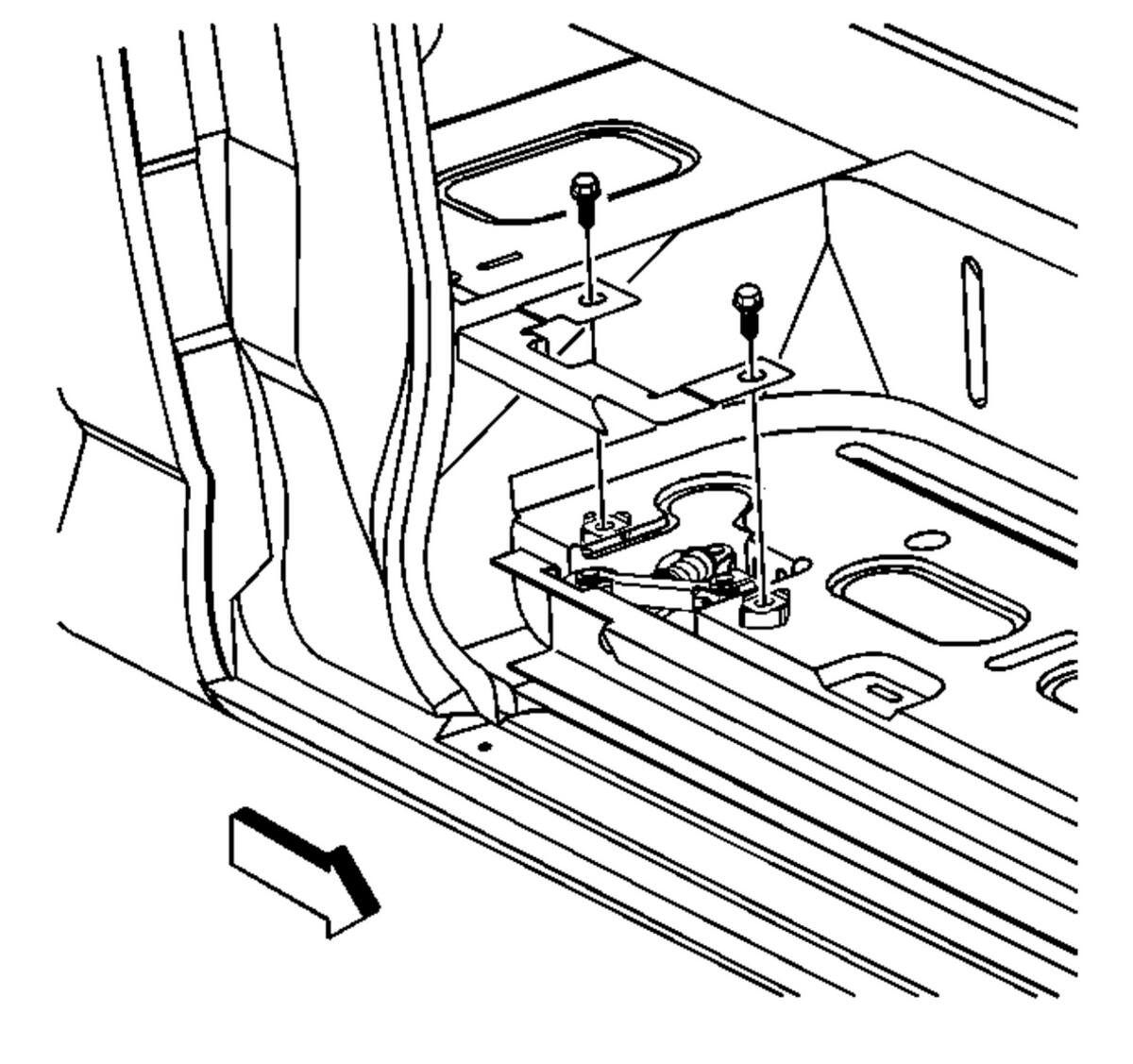

  1. GM334119Courtesy of GENERAL MOTORS COMPANY

    Remove the side door stepwell mat. Refer to Front Side Door Step Mat Replacement .

  2. Remove the bolts that retain the check assembly cover.
  3. Remove the check assembly cover from the stepwell.
  4. GM334116Courtesy of GENERAL MOTORS COMPANY

    Remove the nuts (2) that retain the check assembly (1) to the sliding side door lower track (3).

  5. Remove the check assembly (1) from the sliding side door lower track (3).
