Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

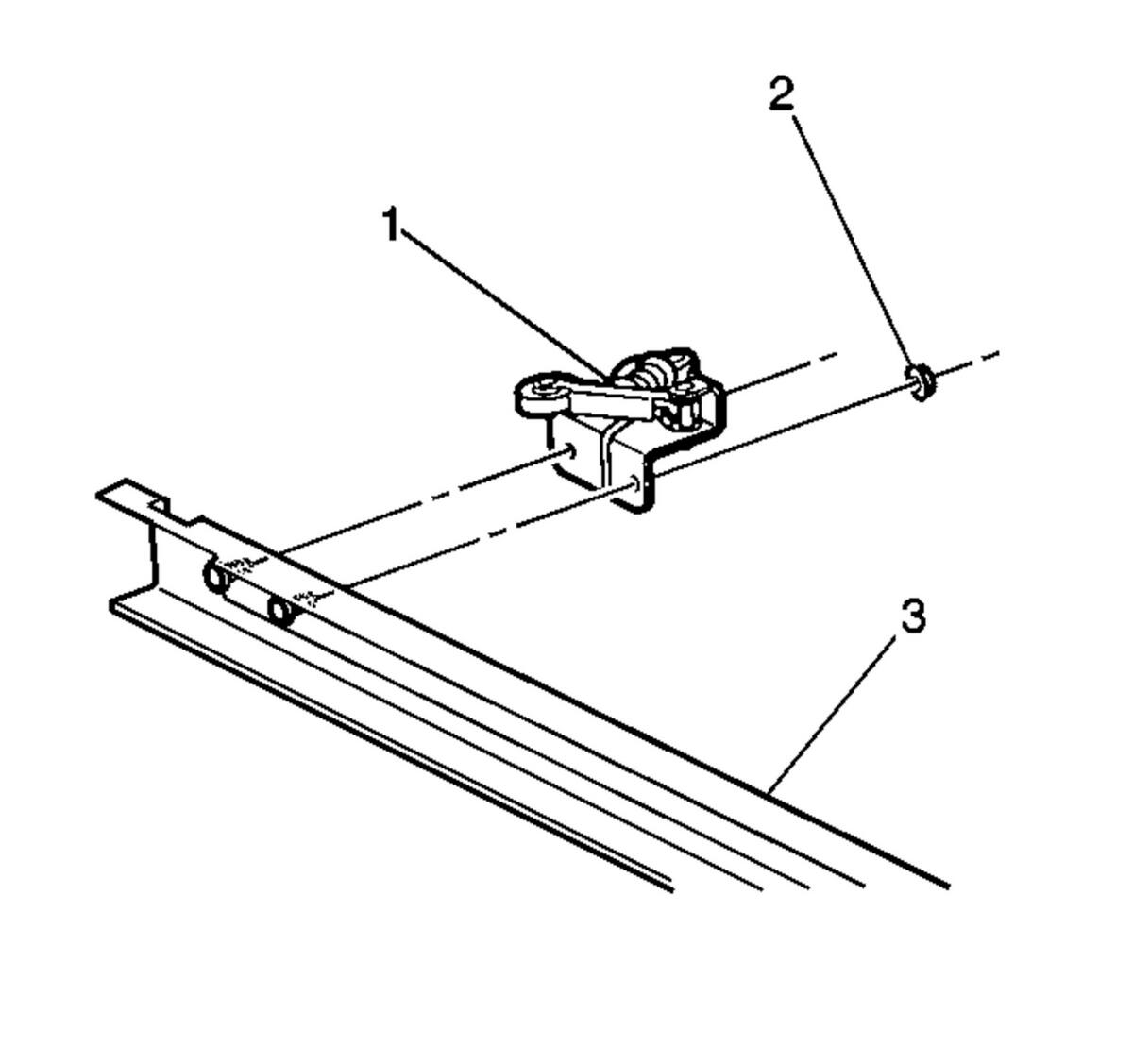

  1. GM334116Courtesy of GENERAL MOTORS COMPANY

    Install the check assembly (1) to the sliding side door lower track (3).

    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the nuts (2) in order to retain the check assembly (1) to the sliding side door lower track (3) and tighten to 10 N.m (89 lb in).
  3. Install the side door stepwell mat. Refer to Front Side Door Step Mat Replacement .
