Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

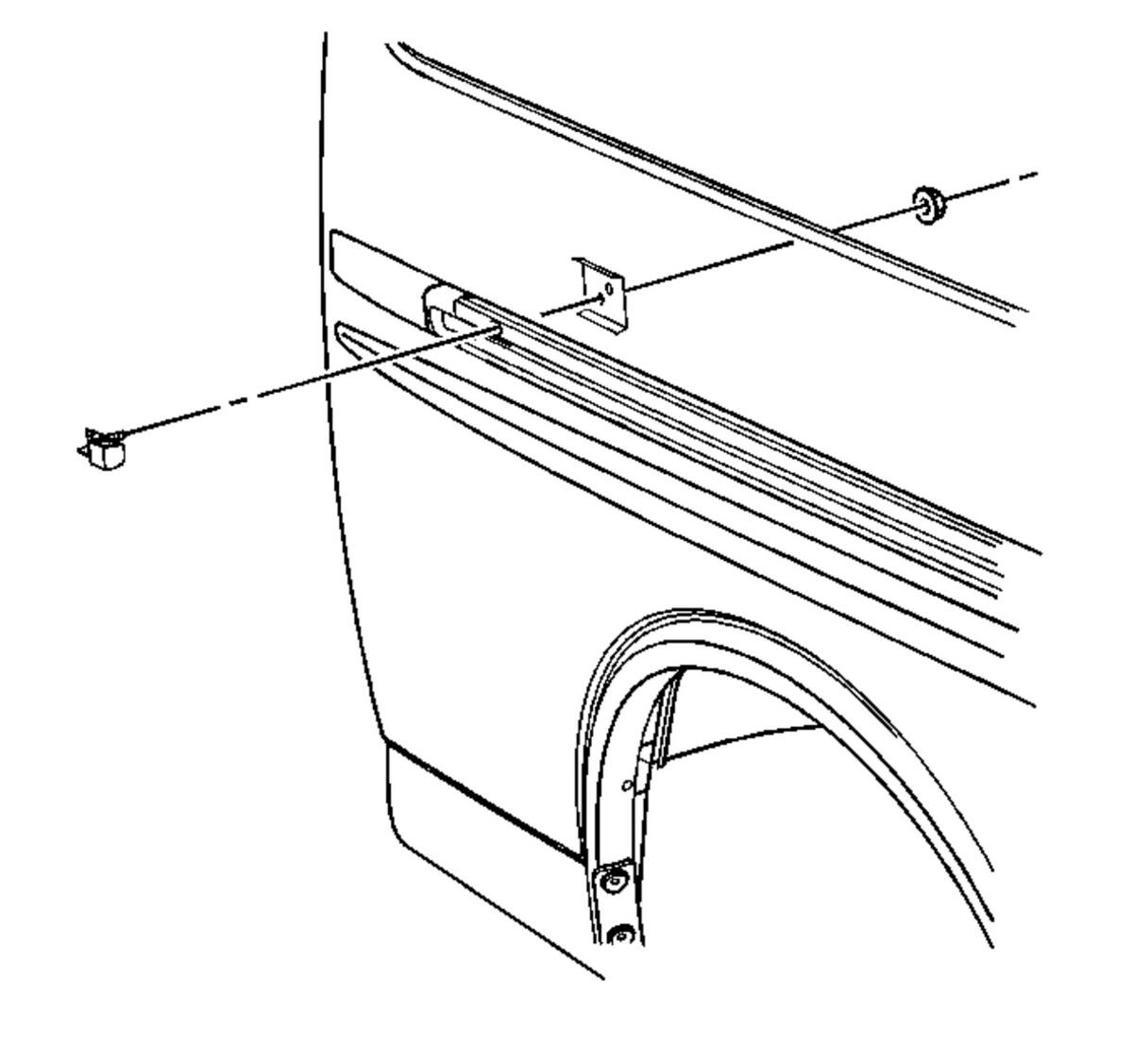

  1. GM334046Courtesy of GENERAL MOTORS COMPANY

    Remove the passenger side body side trim panel. Refer to Body Side Trim Panel Replacement - Right Side .

  2. Remove the nut that retains the sliding door stop to the body.
  3. Remove the sliding door stop from the vehicle.
