Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

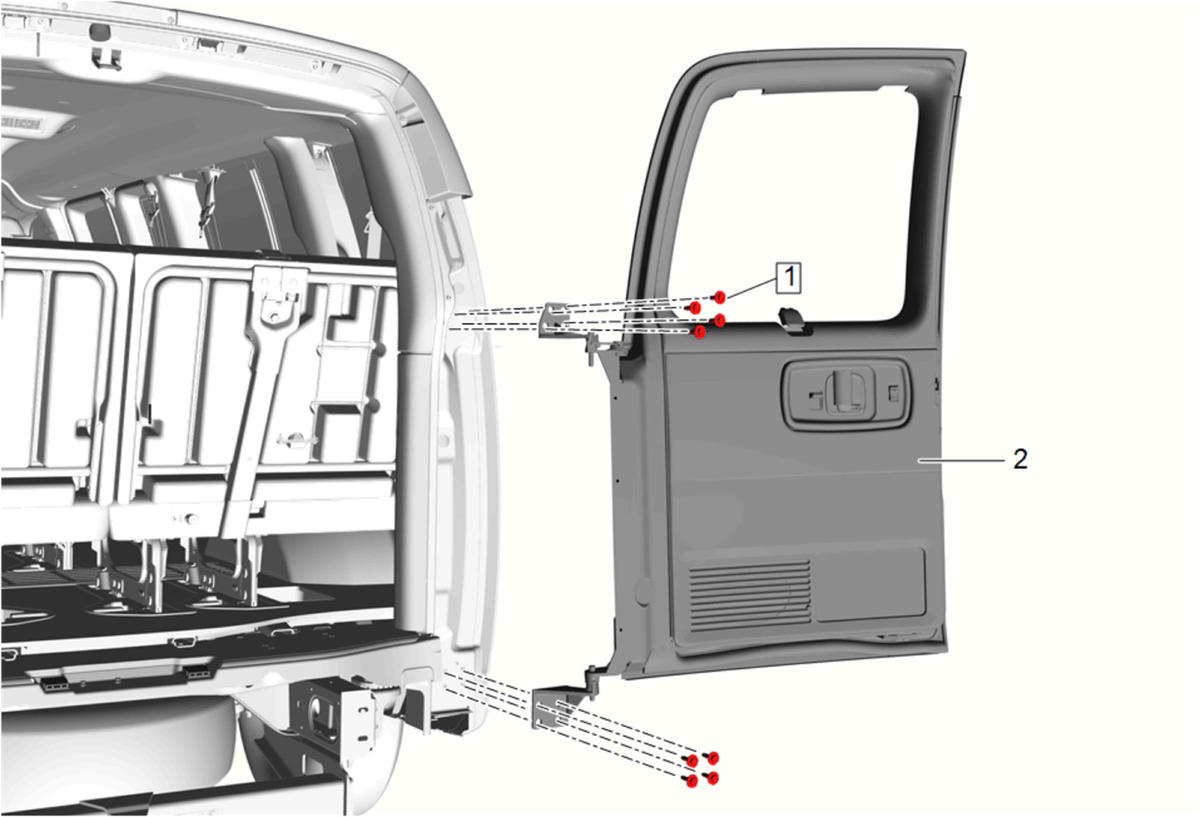

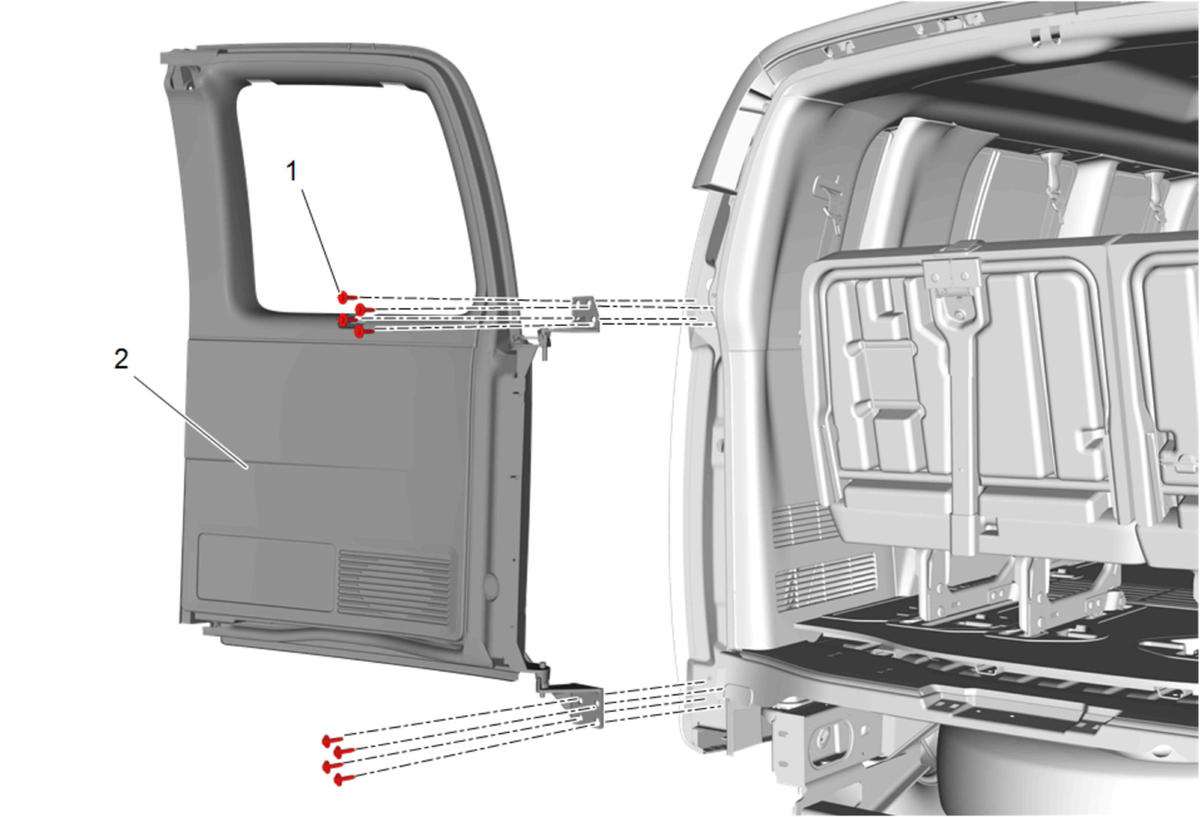

With the aid of an assistant, install the rear door (2).
- Connect all electrical connectors.
- Rear Door Hinge Bolt(1) - Install and tighten [8x]25 N.m (18 lb ft)

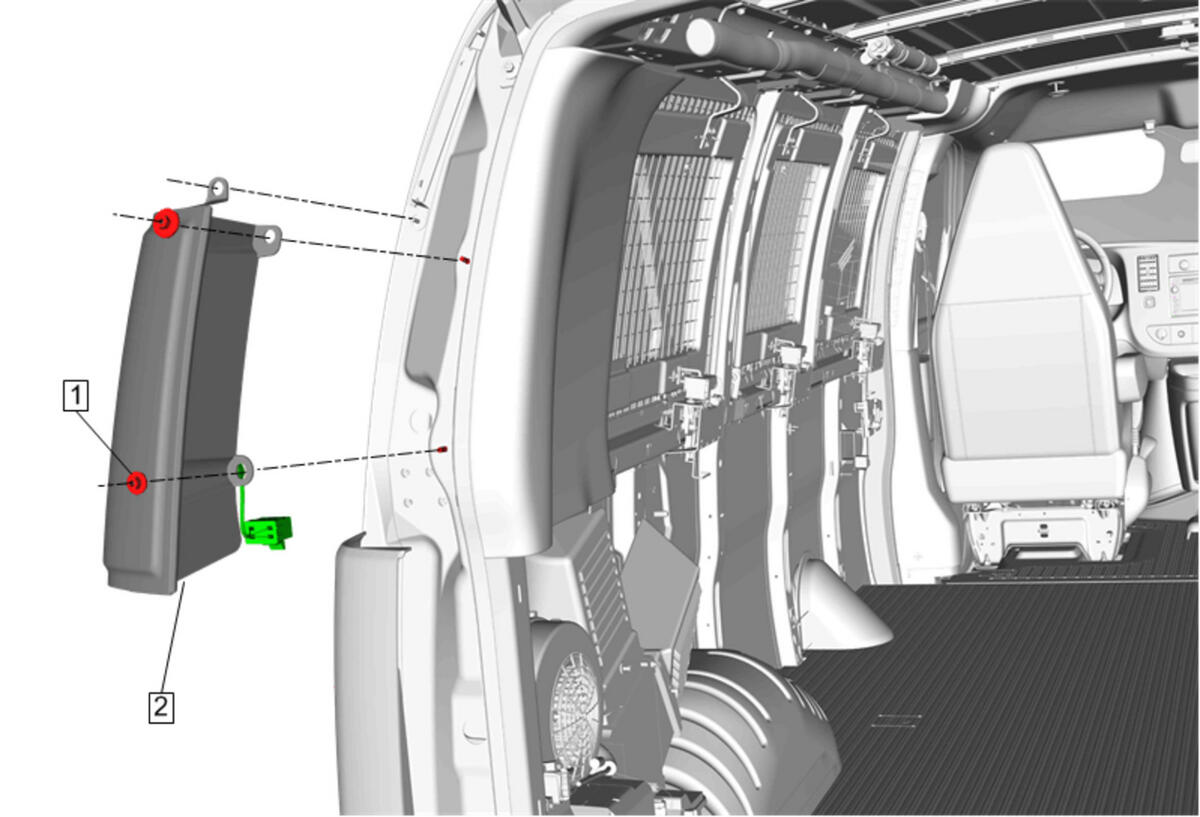

Tail Lamp Replacement (2) - Install - Tail Lamp Replacement
CAUTION:
Refer to Fastener Caution .
