Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

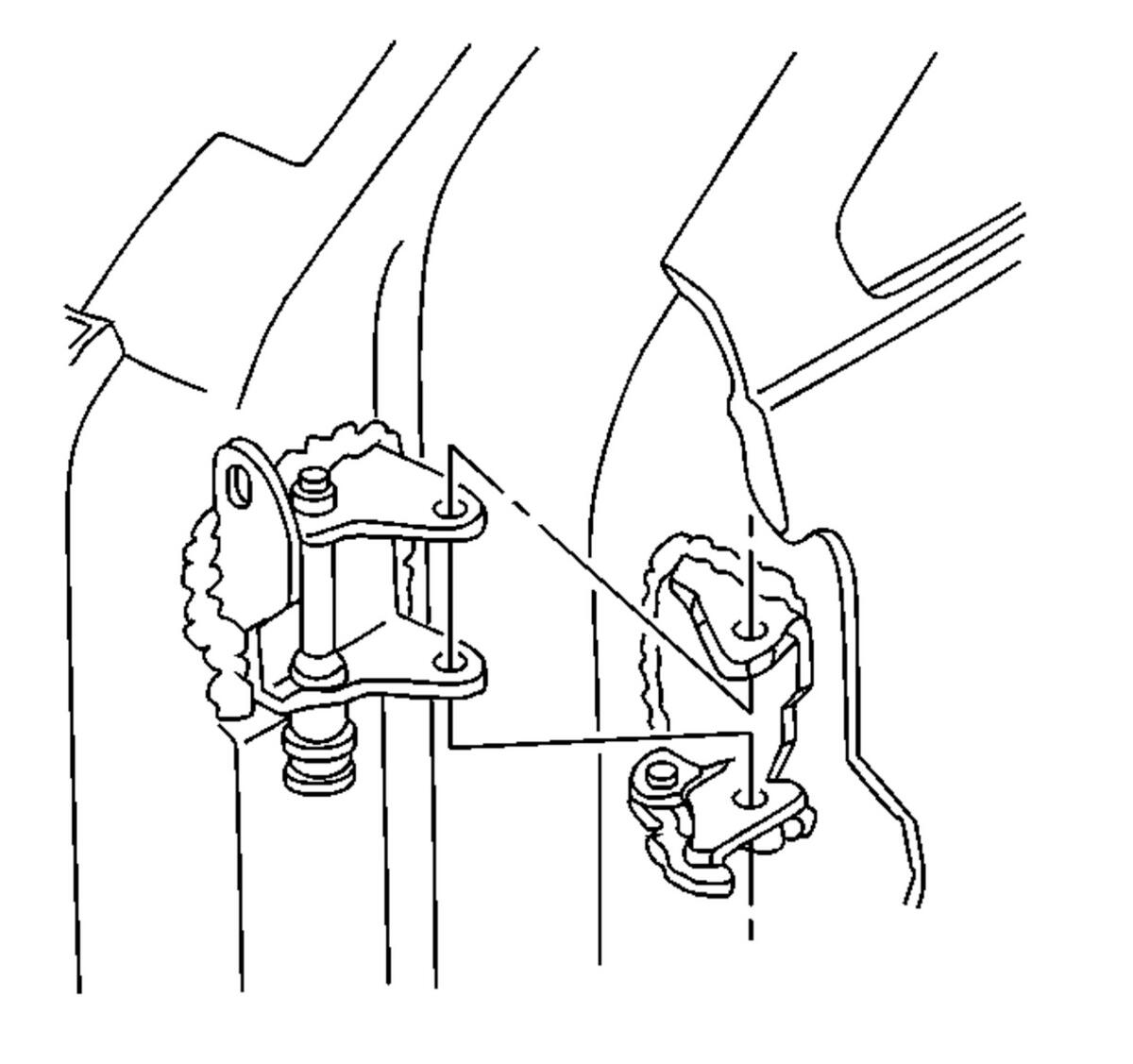

Deburr the holes on the inside of the hinge pillar or the door in order to insure the proper seating of the hinge and the backing plate. Inspect the body pillar and the door in order to ensure that the hinge seating zone on the body pillar or the door is flat.
- Paint the inner and the outer surfaces of the hinge pillar or the door at the hinge mounting zone.
- Coat the mating surface of the hinge with a medium bodied sealer.

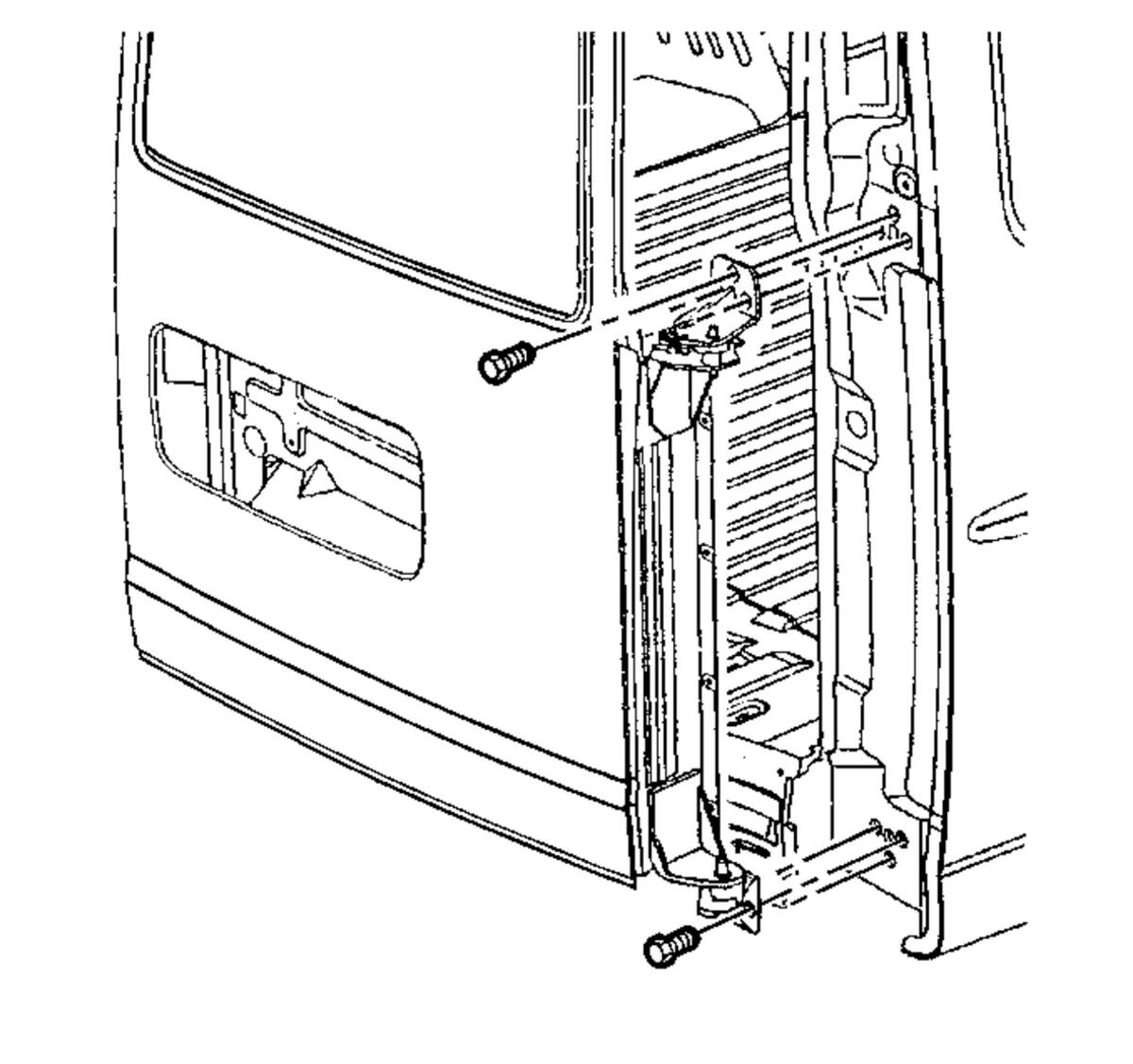

Position the bolt-on service replacement hinges within the scribe marks that were made on the body pillar or the door at the time of removal.
- Install the hinge to the body pillar or the door using the bolts and the tapping plate that is supplied with the service replacement kit.
- Tighten the bolts to the recommended preliminary torque to 5 N.m (44 lb in).
- Install the door to the body. Align the door as required. Do not close the door completely until you make a visual check in order to determine if the lock will correctly engage the striker and tighten to 25 N.m (18 lb ft).
Apply the sealer around the hinges.
- Paint the hinge assembly.
- Install the door to the vehicle. Refer to Rear Door Replacement - Left Side , or Rear Door Replacement - Right Side .
CAUTION:
Refer to Fastener Caution .
