Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Paint the service hinges body color.
- For forward most intermediate door (60 door) hinge replacement move the front seat forward, clear of B-pillar.
- Remove the door that requires hinge replacement. Refer to Intermediate Side Door Replacement .
- Remove interior trim at pillar. Refer to Upper Pillar Garnish Molding Replacement , Lower Pillar Garnish Molding Replacement , or Center Pillar Upper Garnish Molding Replacement - Right Side .

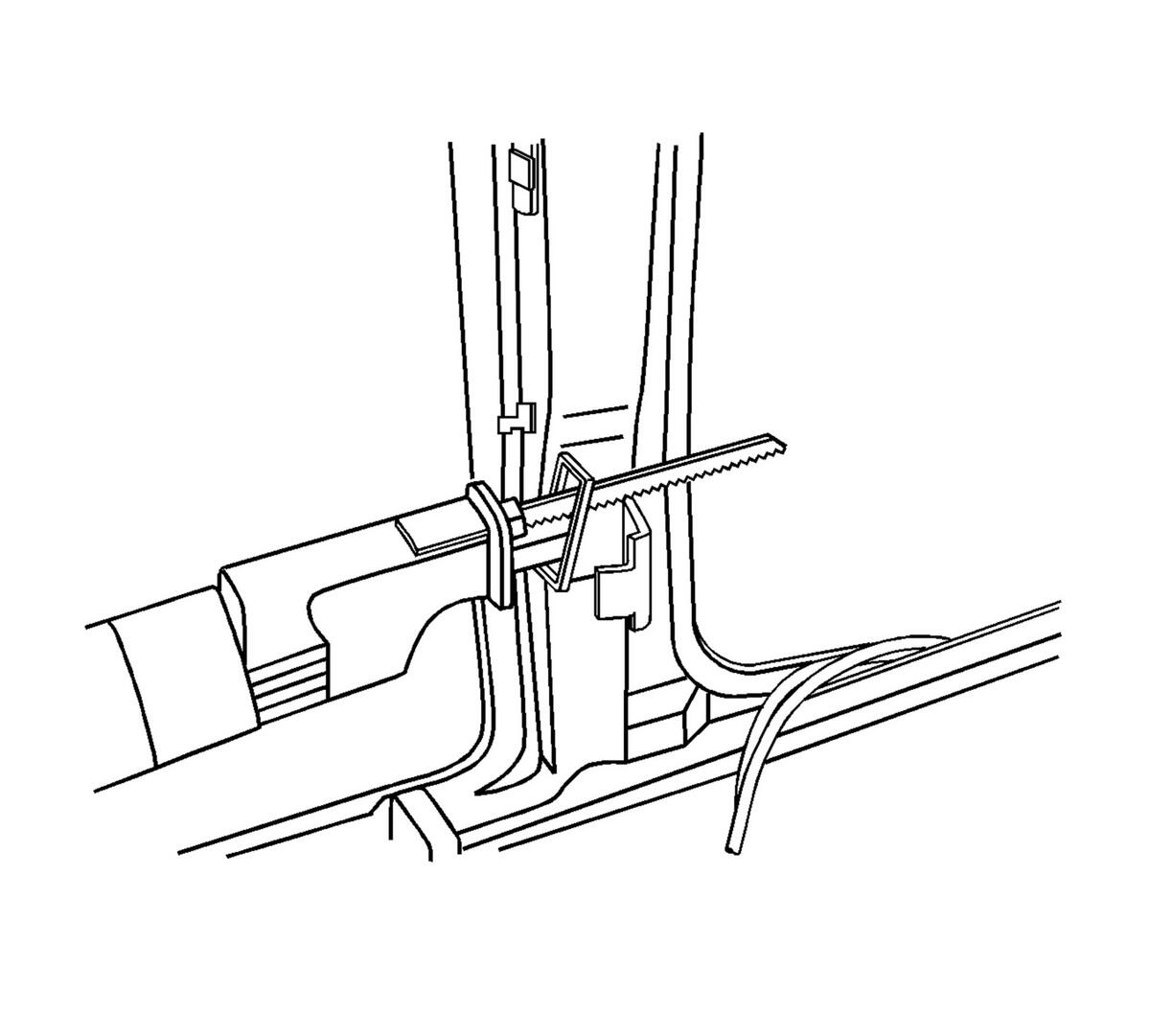

Cut the production body side door hinge. Use a reciprocating saw to gain access for drilling.

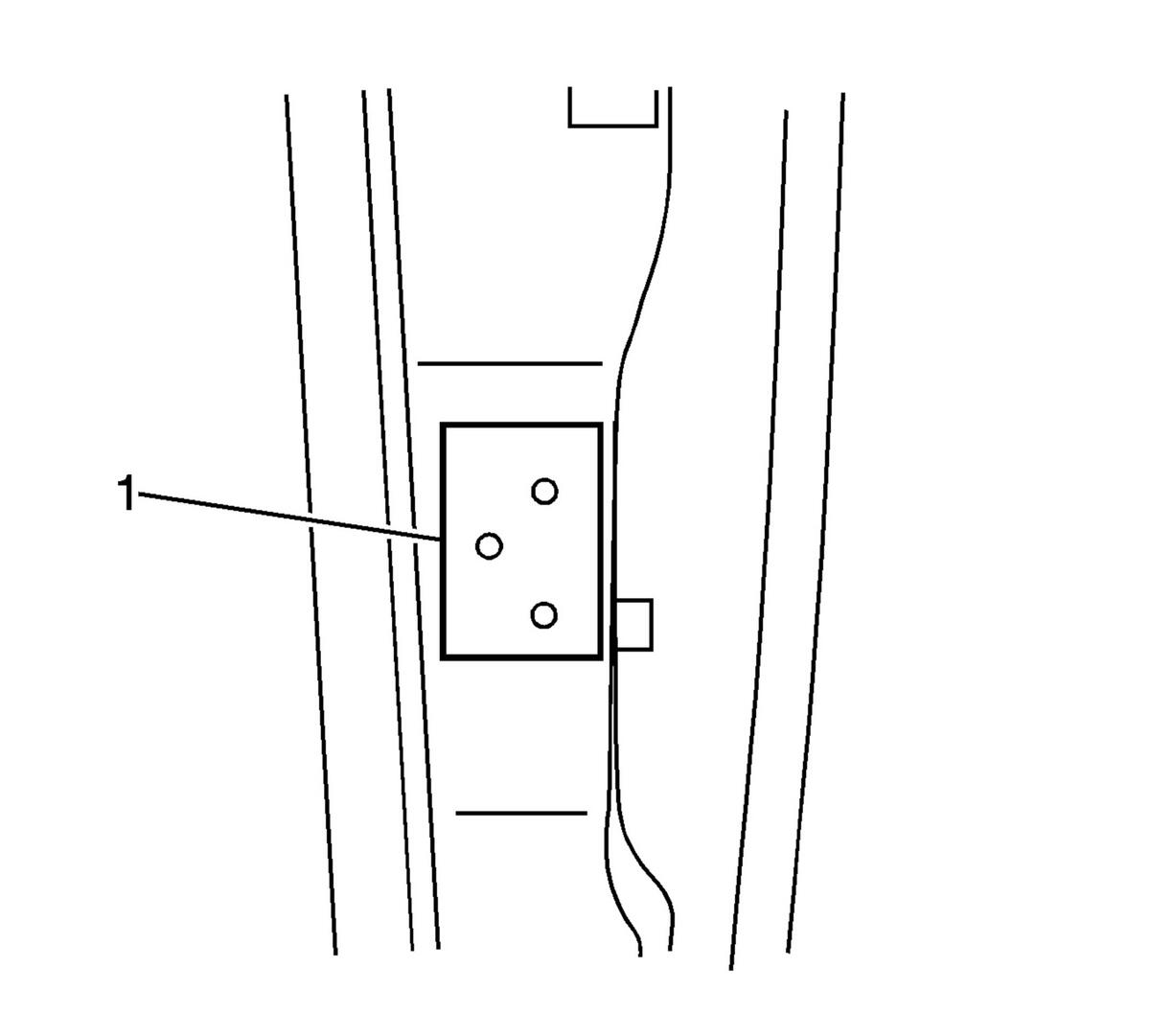

Tape around the periphery of the body side hinge to mark the hinge (1) location.
- NOTE:
For the forward most intermediate door (60 door), move the backing plate rearward 4 mm (0.16 in) before marking the 3-hole pattern.

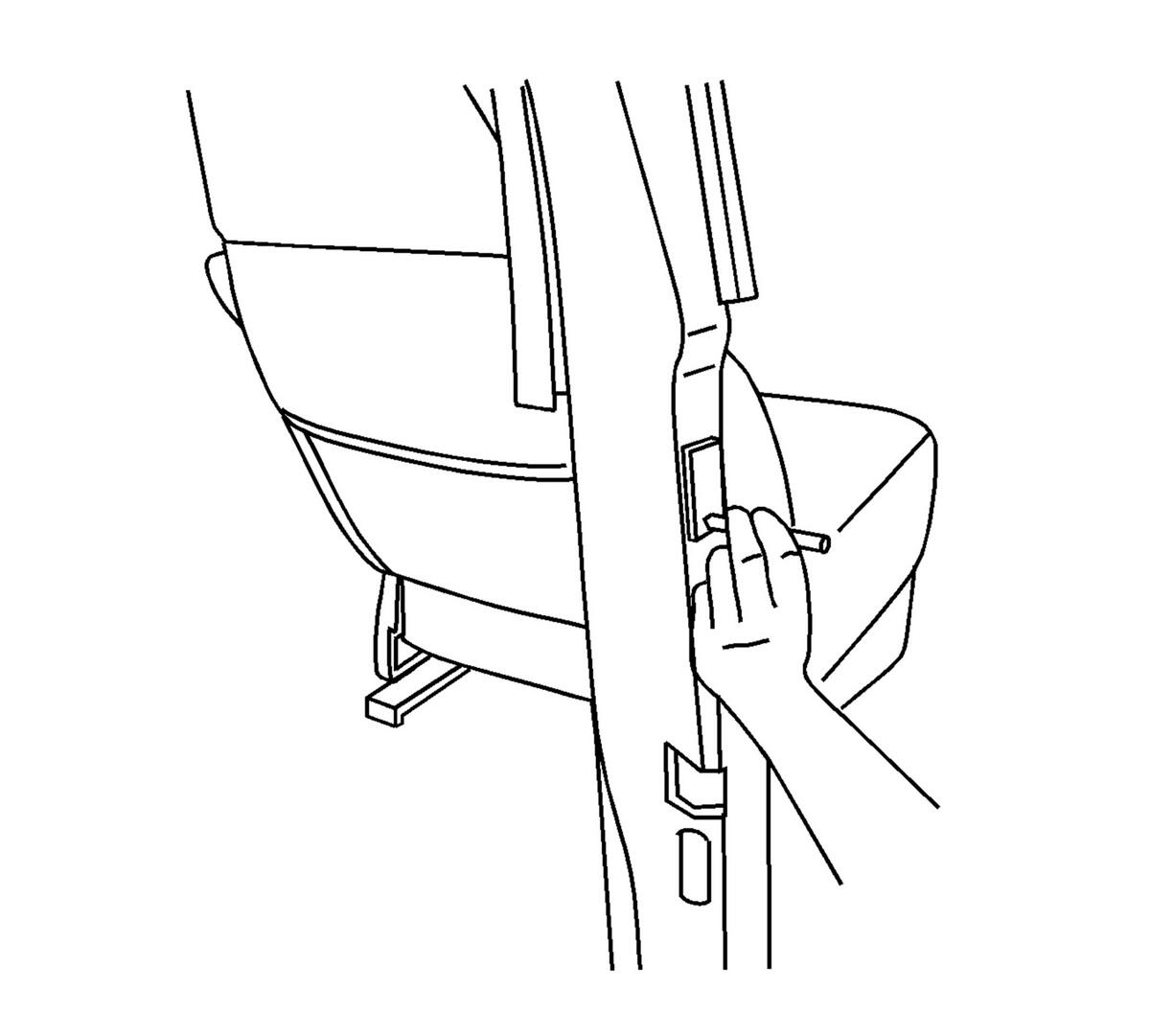

Place the service backing plate on the production hinge surface and mark the 3-hole pattern.

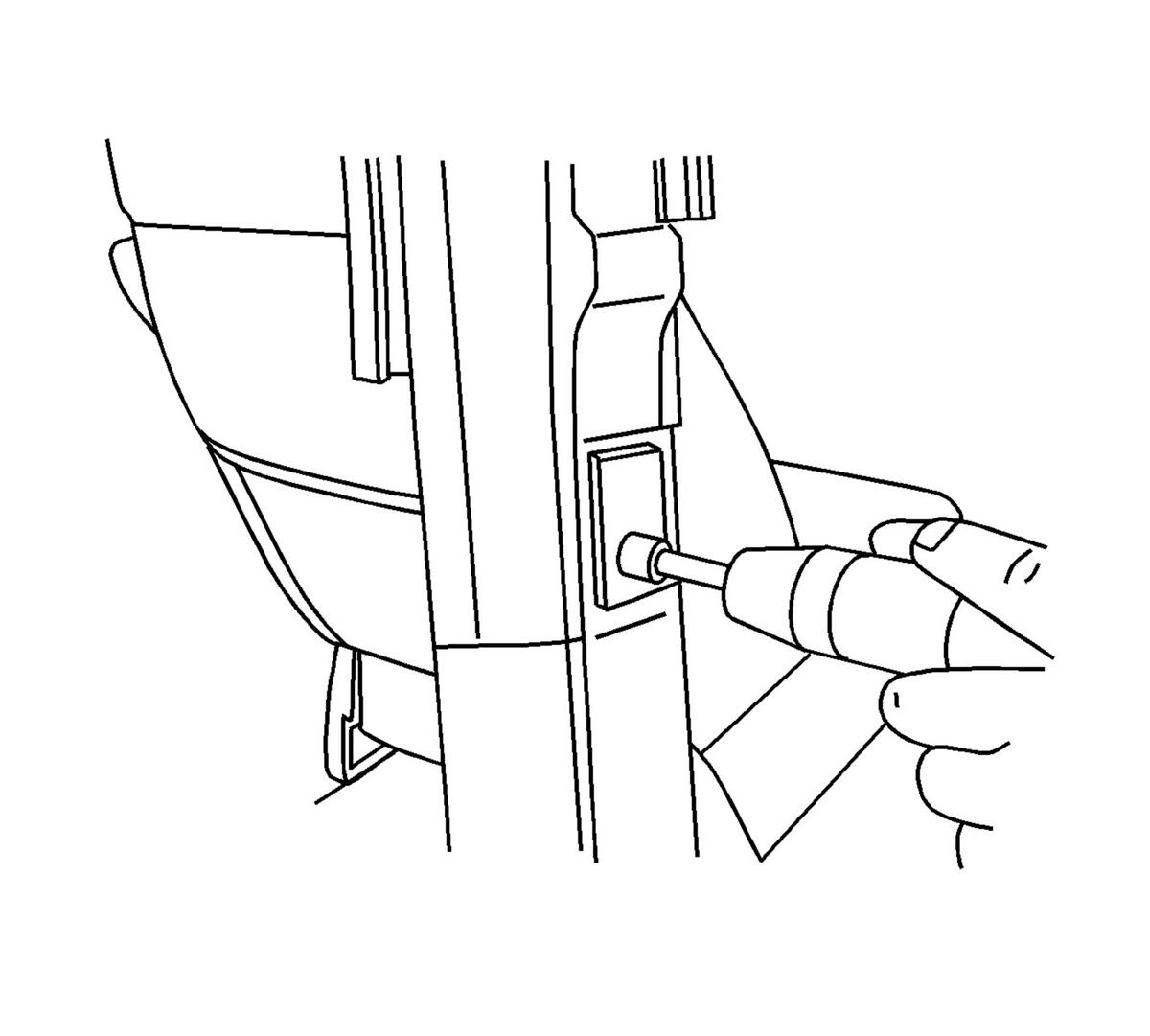

Center punch the marked 3-hole pattern.

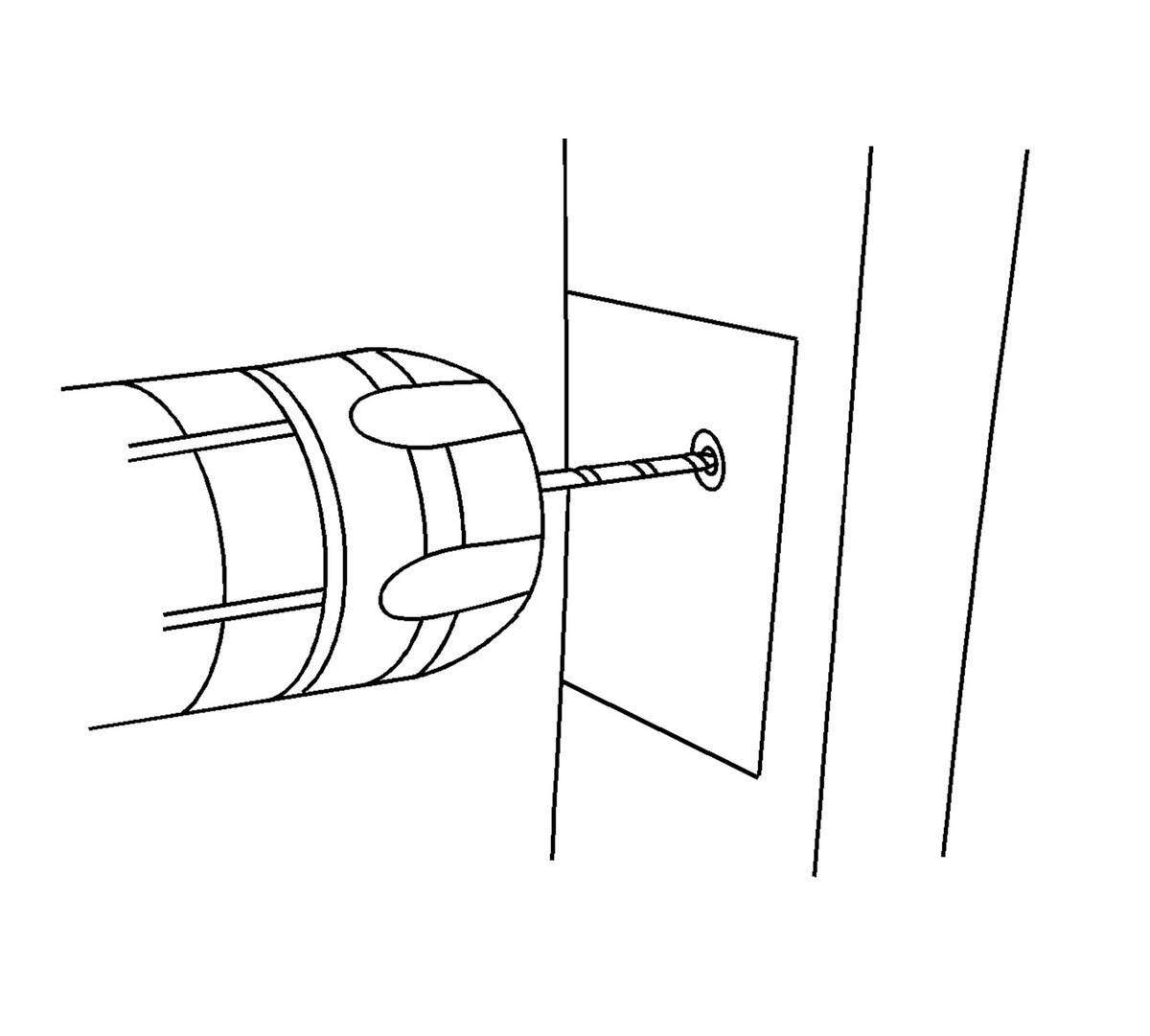

Drill pilot holes with a 3 mm (1/8 in) drill bit all the way through the production hinge and body pillar.
- Protect the interior of the vehicle and the adjacent door interior from potential metal grindings.
- Lightly sand the body side hinge surface to locate the 3 production welds, look for witness mark.

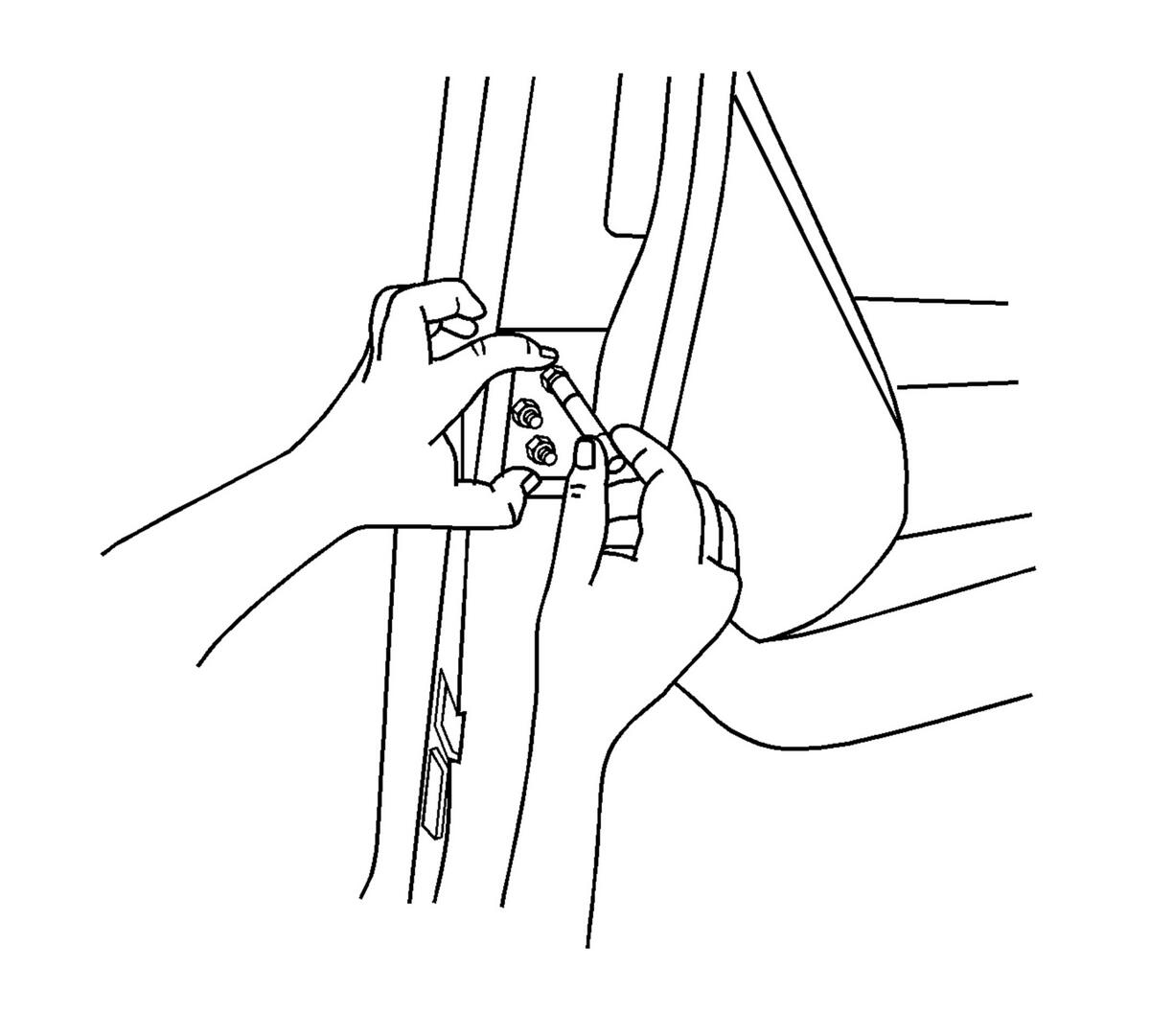

- Center punch the 3 production welds for locating drill bit.
Using the center punch locations, use a 19 mm (3/4 inch) rota-broach to drill out the remainder of the production hinge without drilling through the body side hinge pillar.
- Cut the hinge weld nuggets off.
- Grind the pillar hinge mating surface flush.
- Using the pilot holes drilled to center the drill bit, drill 13 mm (33/64 in) holes through the pillar.
