Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Prior to painting, refer to the publication GM 4901M-D-2000 GM Approved Refinish Materials for recommended products. Do not combine paint systems. Refer to paint manufacturer's recommendations.

Paint the bare surface of the pillar hinge mounting area according to GM refinish specification GM 4901M-D-2000.

CAUTION:

Refer to Fastener Caution .

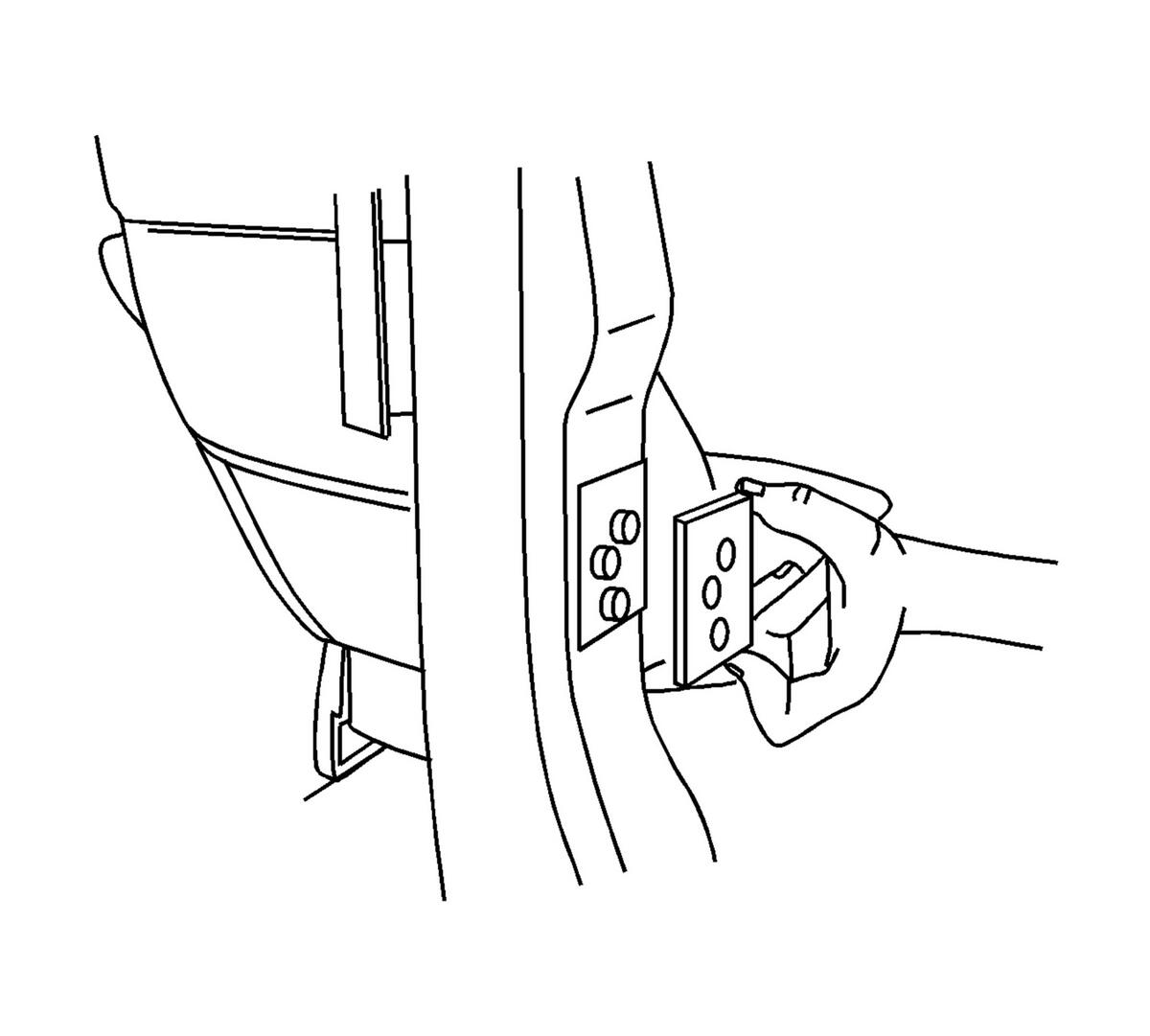

Install the service hinge and backing plate and tighten to 23 N.m (17 lb ft).
Apply clear silicone sealant around the entire edge of the service hinge to prevent water leaks.
Install the door. Refer to Intermediate Side Door Replacement .
Adjust adjacent front side door striker as necessary to achieve flushness between the two doors. Refer to Rear Side Door Latch Striker Adjustment - Front .
Install interior trim at pillar. Refer to Upper Pillar Garnish Molding Replacement , Lower Pillar Garnish Molding Replacement , or Center Pillar Upper Garnish Molding Replacement - Right Side .
