Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

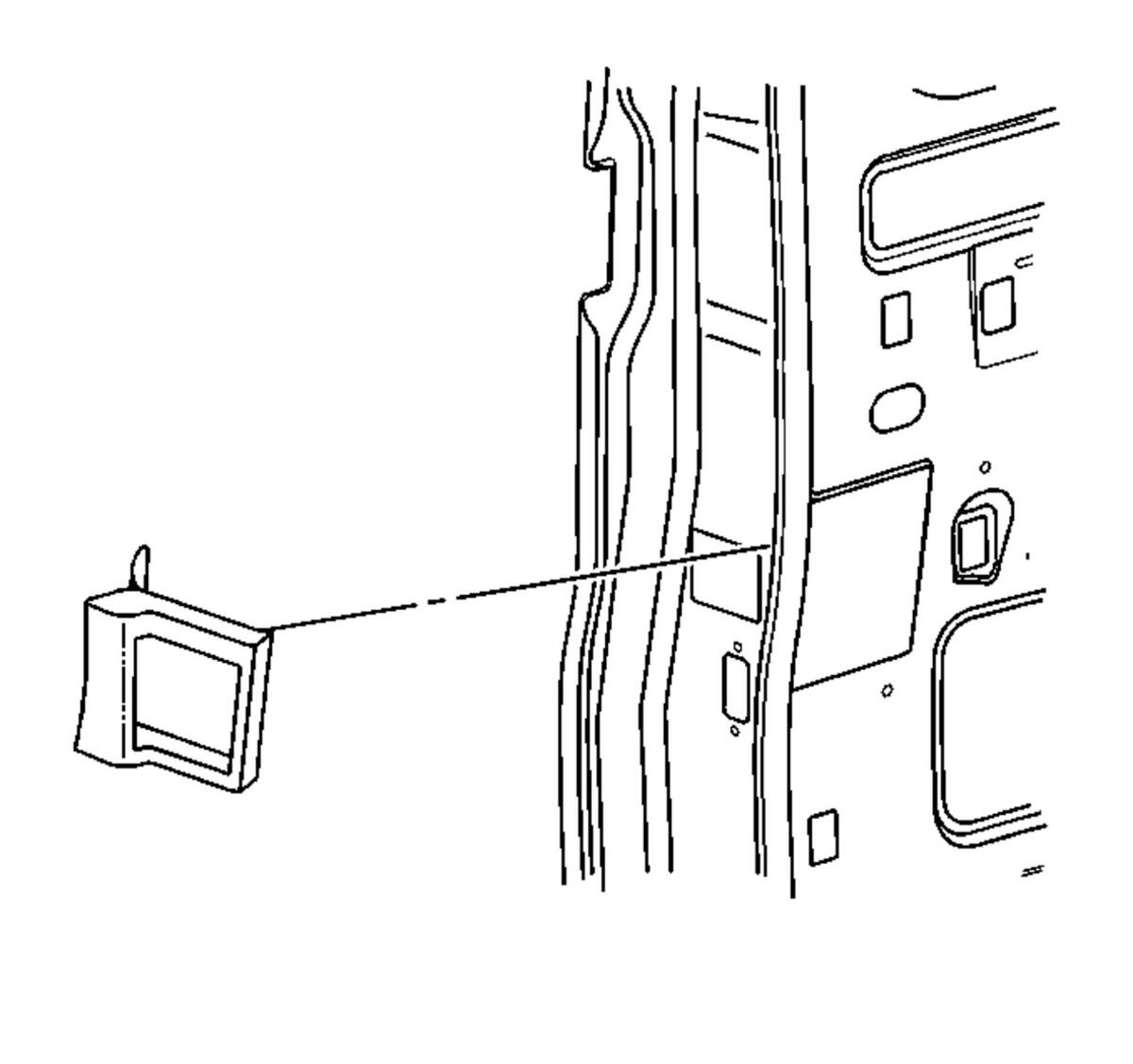

  1. GM333979Courtesy of GENERAL MOTORS COMPANY

    If you are reusing the check strap seal, apply weatherstrip adhesive to the check strap seal. Use GM Weatherstrip Adhesive GM P/N 12345097 (Canadian P/N 10953479), or the equivalent.

  2. Install the side rear door check strap seal to the door.
