Front Side Door Weatherstrip Replacement - Body Side
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|
| Callout |
Component Name |
|
Preliminary Procedures
- BODY HINGE PILLAR TRIM PANEL REPLACEMENT
- Front Side Door Step Mat Replacement
|

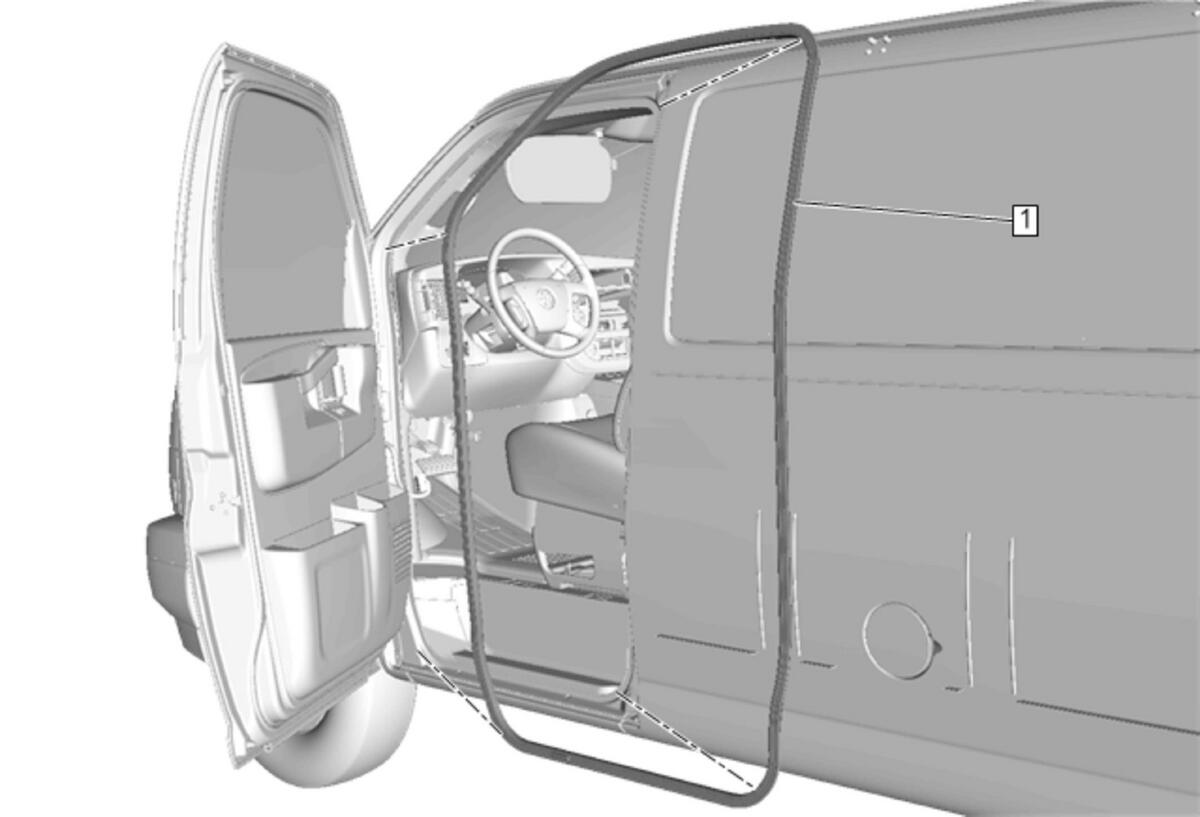

| 1 |
Front Side Door Weatherstrip - Body Side Procedure
- Start at the rear upper corner of the door opening and pull the weatherstrip away from the door opening flange.
- Position the weatherstrip in the upper corner of the center pillar.
- Working downward along the front edge, install the weatherstrip on the door opening flange ensuring that the carrier is fully seated in the corners.
|
