Front Side Door Check Strap Seal Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

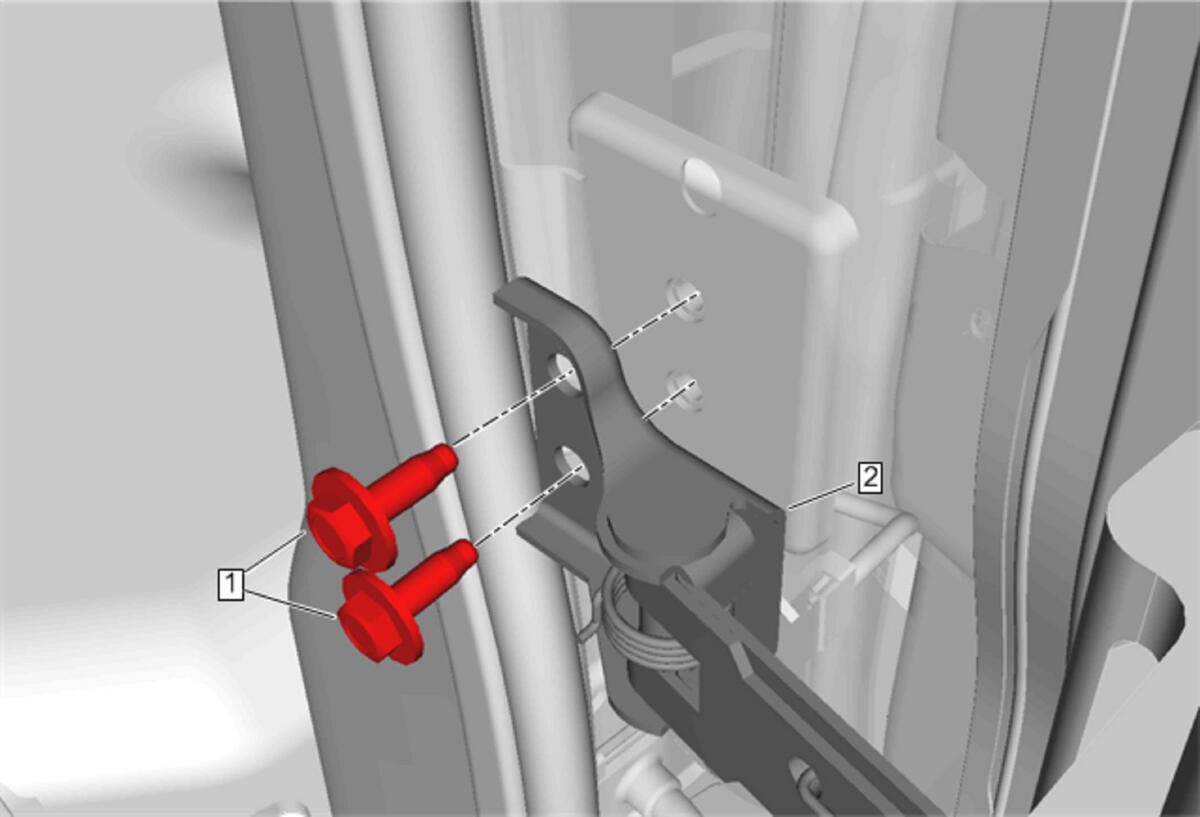

Callout	Component Name
1	Intermediate Side Door Check Strap Bracket Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Front Side Door Check Strap Seal Procedure Open the door approximately half way. Push check strap into door to release from pin. Remove check strap from door.

Callout

Component Name

Intermediate Side Door Check Strap Bracket Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)

Front Side Door Check Strap Seal

Procedure

Open the door approximately half way.
Push check strap into door to release from pin.
Remove check strap from door.
