Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Remove the replacement mirror back and glass sub-assembly from the package.
- Inspect the components for any damage. Ensure that the mirror back and the glass sub-assembly have all the snap-fit hooks in place.
- If the mirror has the heated feature, plug in the 2 electrical connectors to the back of the mirror back.

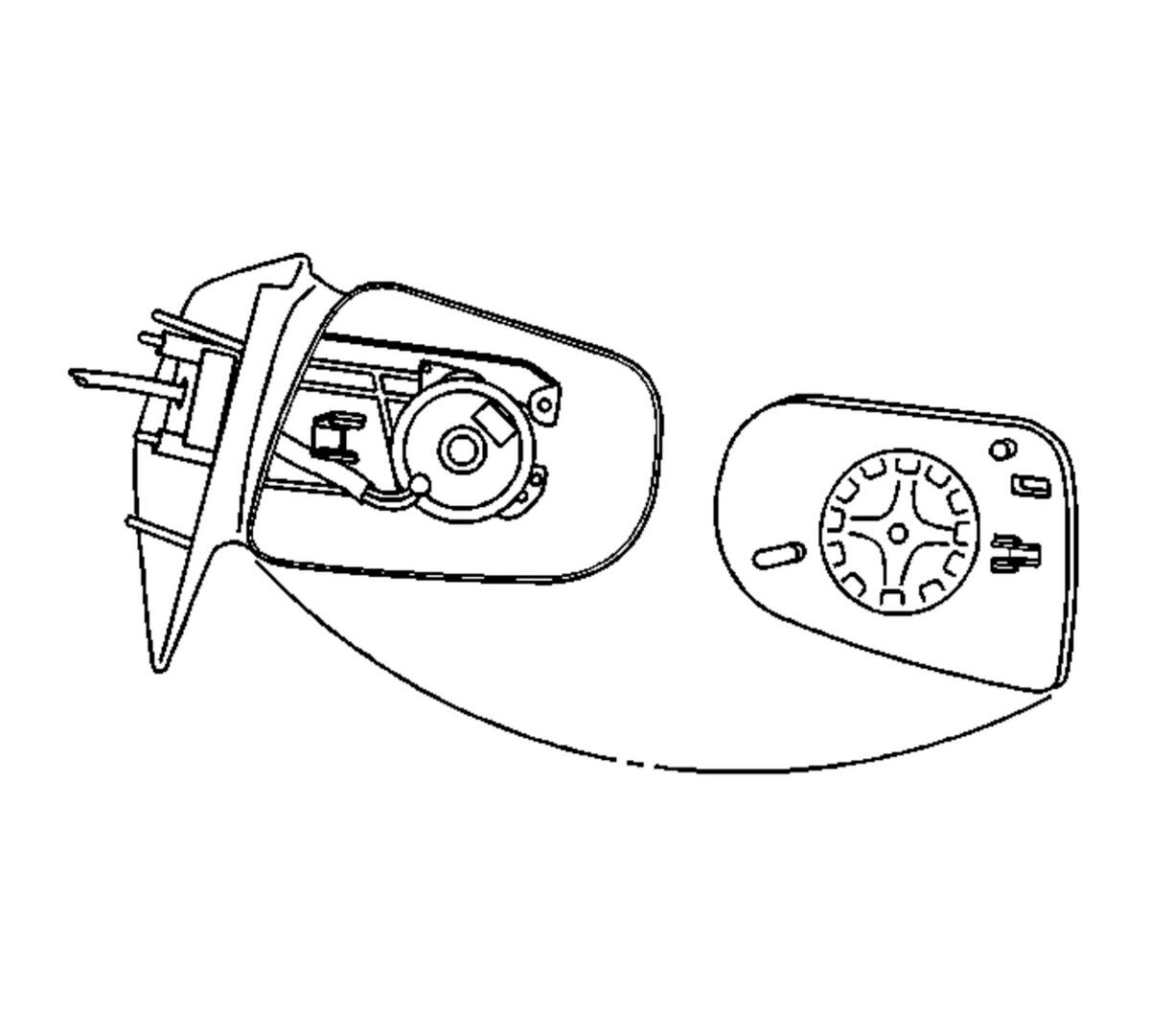

- Align the mirror back snap-fit hooks with the adjuster mechanism ramps.
- Gently press the mirror back into the adjuster mechanism with the palm of the hand on the center of the glass. Use the palm of the hand to rotate the glass about the glass pivot until the engagement of the snap-fit hooks.
- Perform the following procedure in order to ensure that the mirror glass is fully installed:
- Place foam below the mirror assembly to catch the glass if it should fall.
- Hold the assembly so that the mirror glass is face down, while taking care that the mirror hosing is not scratched, slap the upward surface of the housing. The mirror glass should stay retained in the housing.
- Observe the following conditions that indicate a successful installation:
- The mirror back remains firmly attached to the motor pack.
- Electrical/Manual action of the mirror is possible.
