Manual Mirror Replacement (DHC)

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

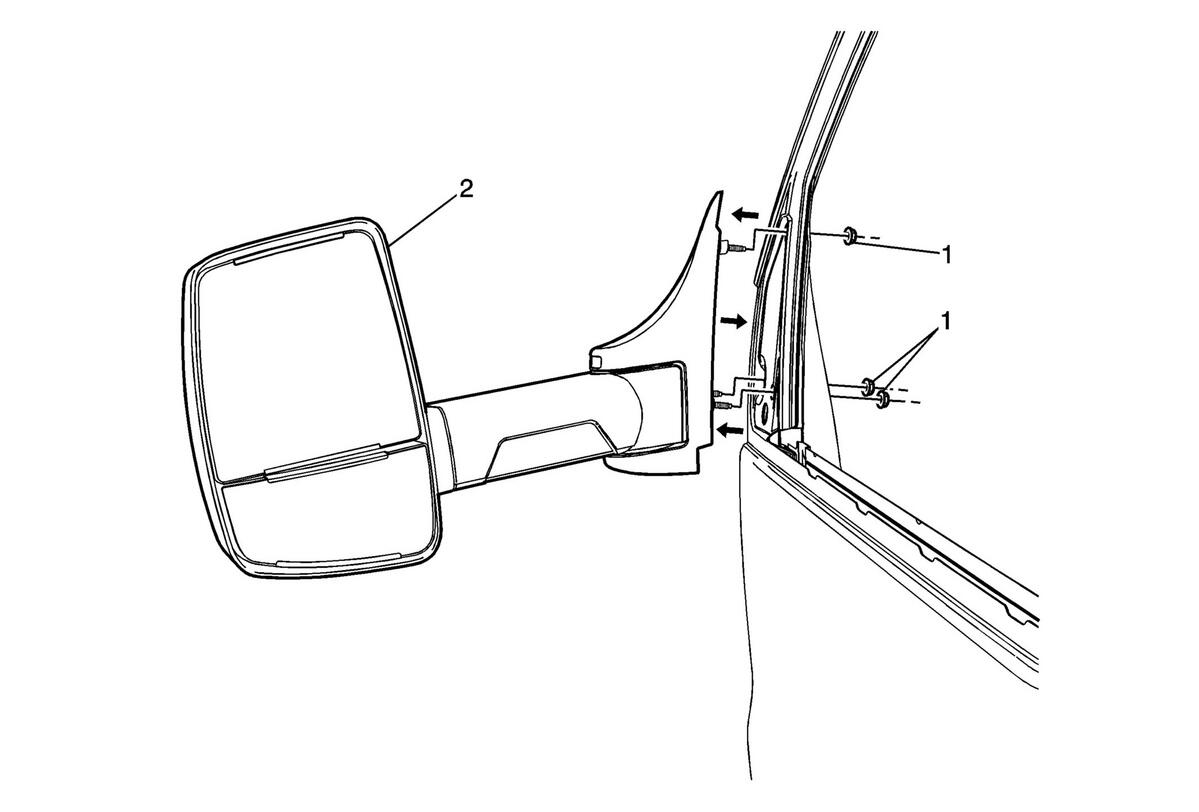

Callout	Component Name
Preliminary Procedures Place the window in the fully down position. Remove front door trim panel. Refer to Front Door Trim Plate Replacement .
1	Outside Rearview Mirror Nut (Qty: 3) CAUTION: Refer to Fastener Caution Fastener Caution. Procedure Take the weight off the three mirror studs using an aid to assist in holding the mirror in place, then follow the torque sequence steps below. Torque the front nut first. Torque the top nut second. Torque the rear nut last. Check static torque (should be no less then 8 Nm). Tighten 10 N.m (89 lb in).
2	Outside Rearview Mirror

Callout

Component Name

Preliminary Procedures

Place the window in the fully down position.
Remove front door trim panel. Refer to Front Door Trim Plate Replacement .

Outside Rearview Mirror Nut (Qty: 3)

CAUTION:

Refer to Fastener Caution Fastener Caution.

Procedure

Take the weight off the three mirror studs using an aid to assist in holding the mirror in place, then follow the torque sequence steps below.
Torque the front nut first.
Torque the top nut second.
Torque the rear nut last.
Check static torque (should be no less then 8 Nm).

Tighten
10 N.m (89 lb in).

Outside Rearview Mirror
