Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

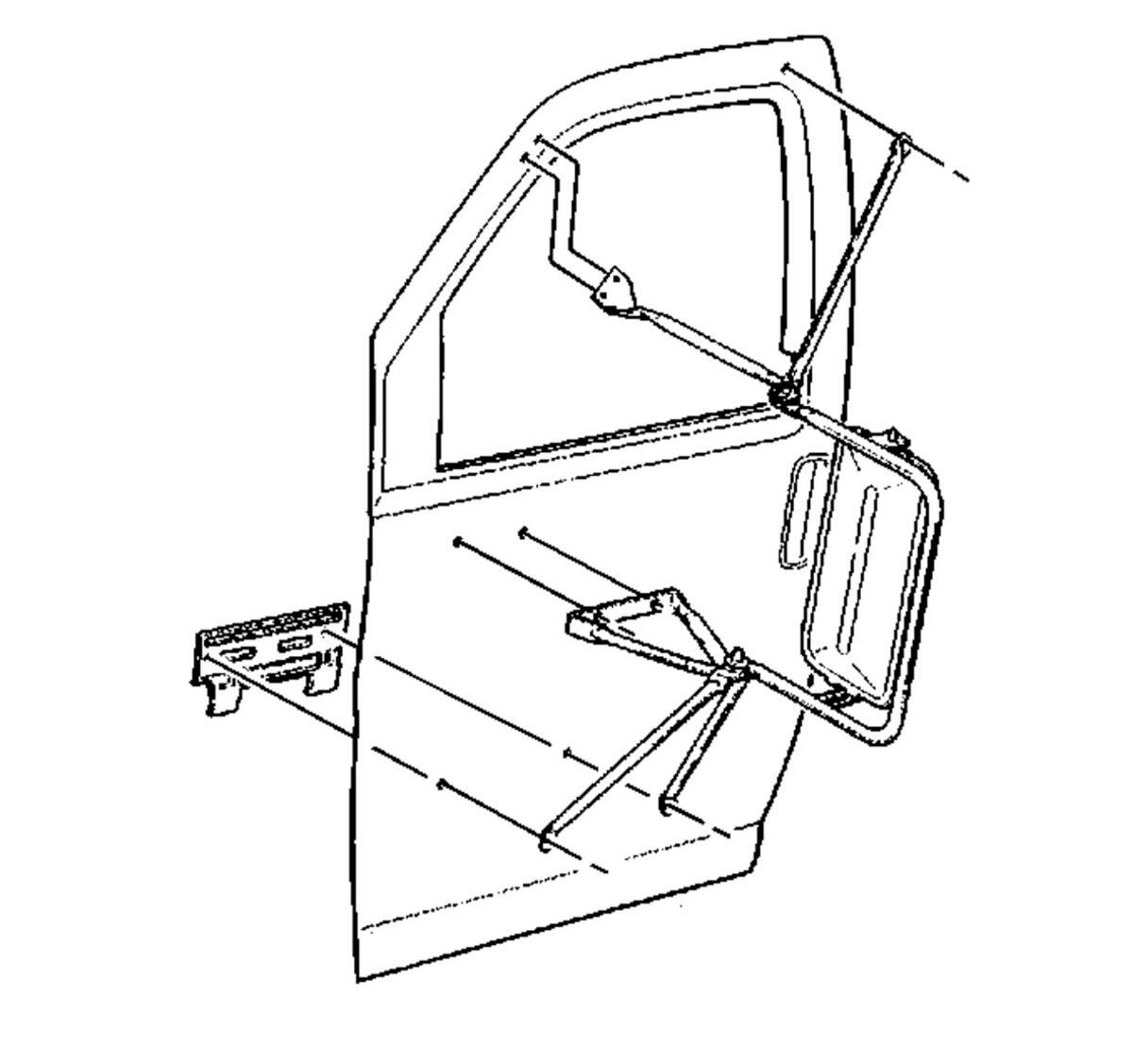

Install the commercial outside rearview mirror braces to the vehicle.
- Align the holes in the commercial outside rearview mirror braces with the studs on the door.
- Install the nuts that retain the commercial outside rearview mirror braces to the door.
Do not tighten the nuts.
- Install the commercial outside rearview mirror head to the vehicle. Tighten the retaining nuts to 4 N.m (35 lb in).
- Perform the following procedure when the mirror installation is complete:
- Position the mirror support arm approximately 90 degrees to the door panel.
- Torque the following pivot nuts:
- The upper brace
- The lower brace
- The mirror support arm
Tighten the pivot nuts to 12 N.m (106 lb in).
CAUTION:
Refer to Fastener Caution .
