Seat Riser Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

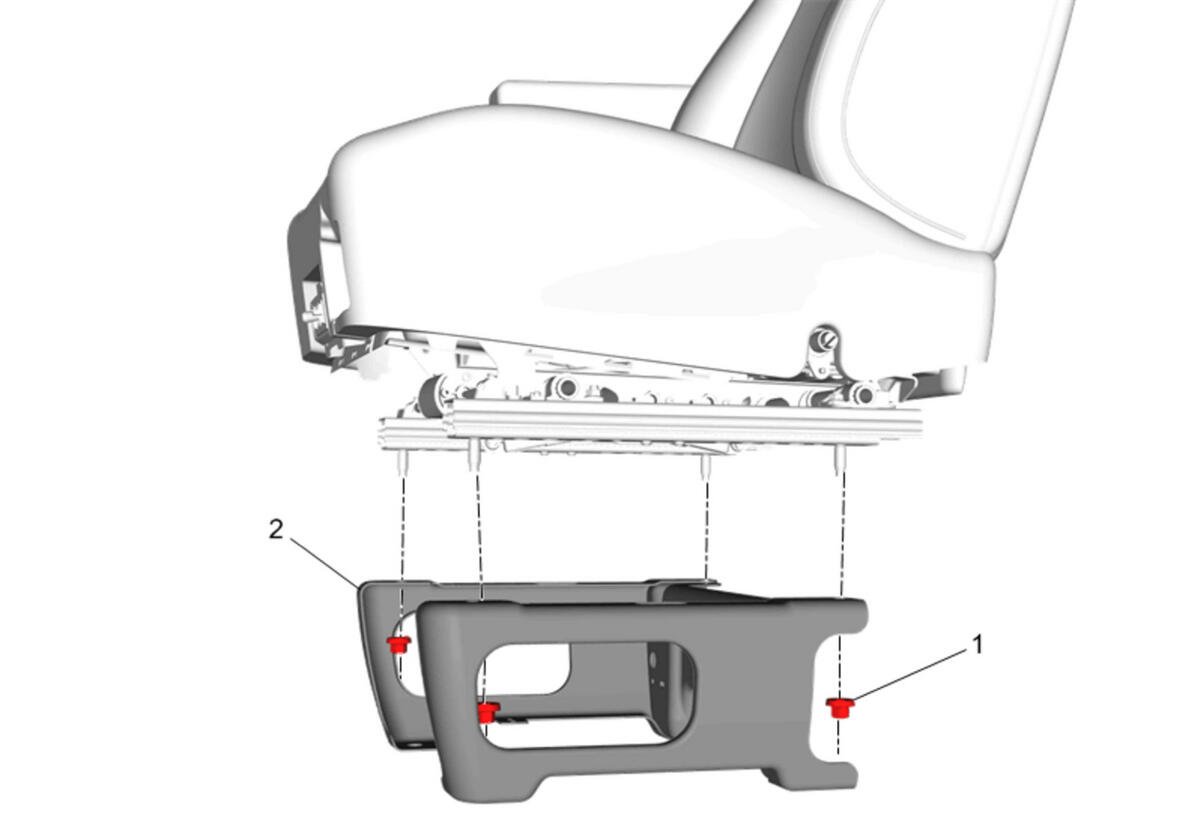

GM4848137Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Seat Removal and Installation
1 Driver or Passenger Seat Nut [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
60 N.m (44 lb ft)
2 Seat Riser
Procedure
Disconnect the electrical connector.
