Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rear Bench Seat (2) - Remove - Rear Bench Seat Removal and Installation (With Bench Seat) , or Rear Bench Seat Removal and Installation (With Split Bench)

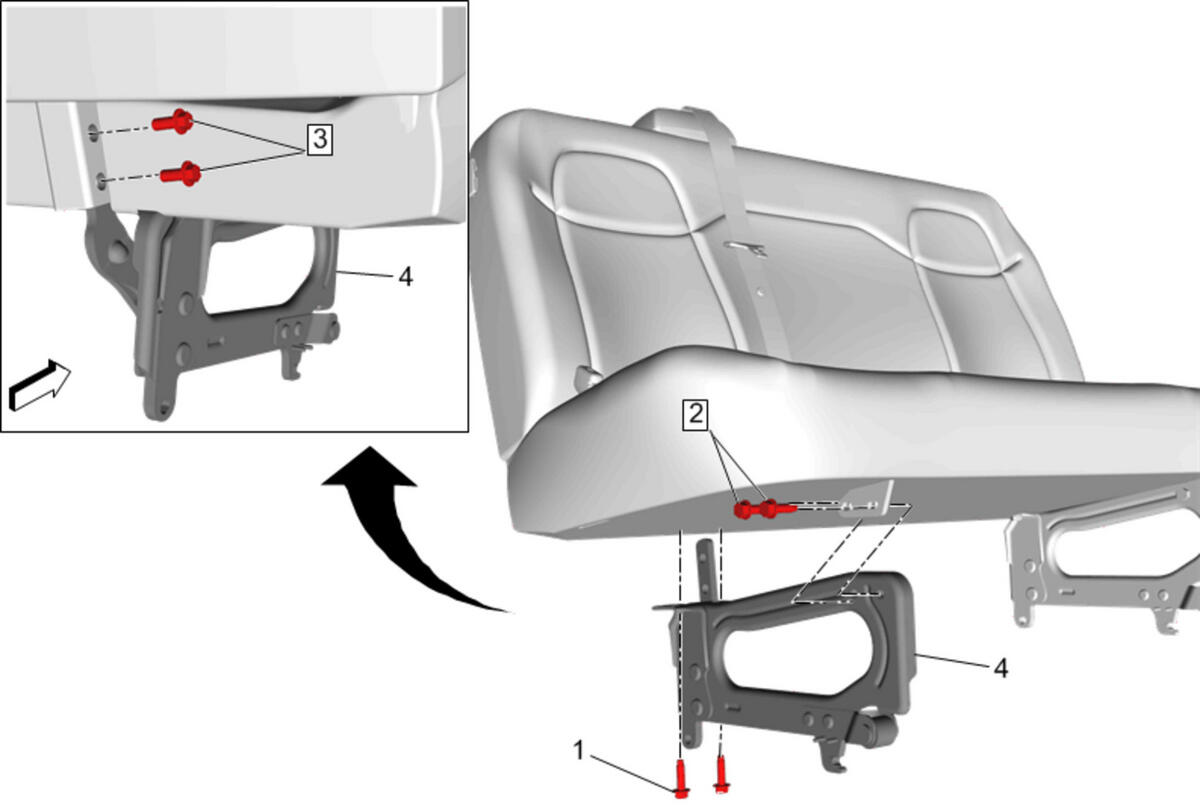

  2. GM4852506Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser- right Side (4) - Remove - Rear Seat Riser Replacement (With Bench Seat - Right Side) , or Rear Seat Riser Replacement (With Split Bench)

  3. GM4852502Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Riser- Left Side (3) - Remove - Rear Seat Riser Replacement (With Bench Seat - Left Side) , or Rear Seat Riser Replacement (With Split Bench)

  4. GM4856109Courtesy of GENERAL MOTORS COMPANY

    Remove the rear seat center buckle side belts (2). Rear Seat Center Buckle Side Belt Replacement

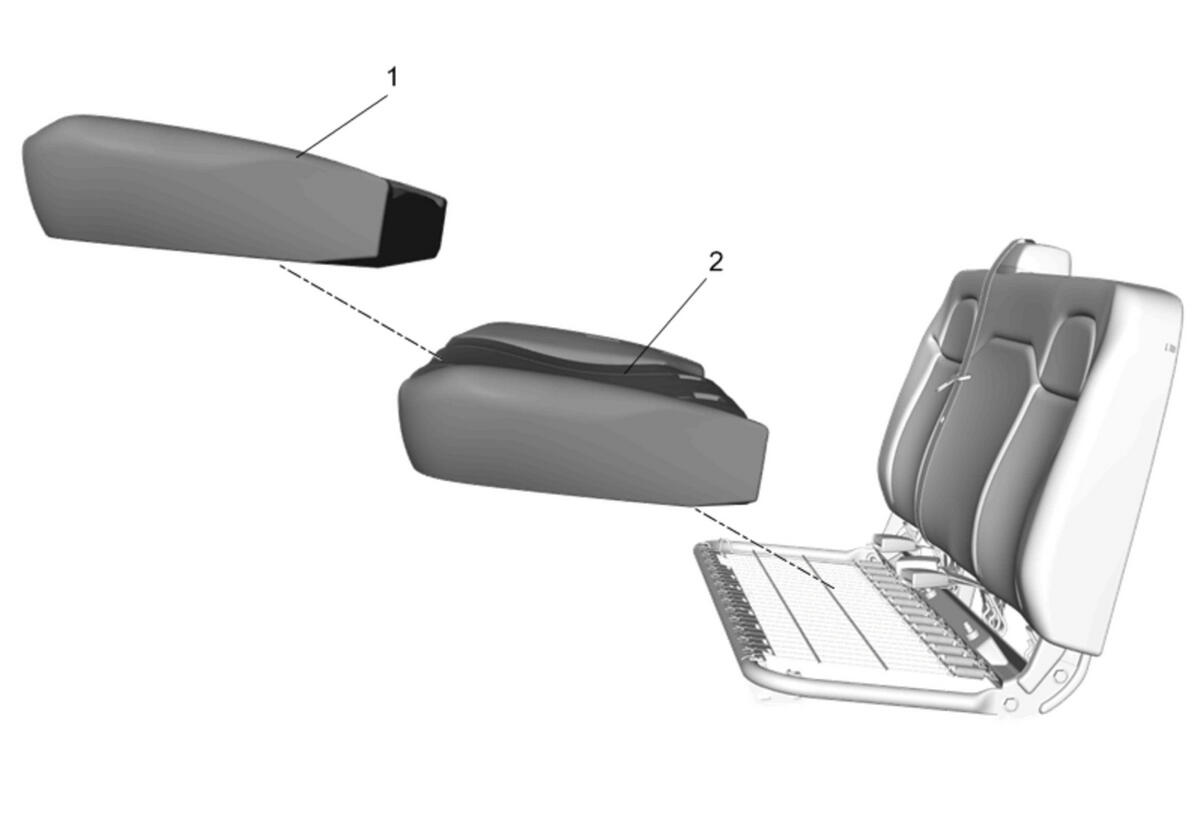

  5. GM4854486Courtesy of GENERAL MOTORS COMPANY

    Rear Seat Cushion Cover (1) - Remove

  6. Rear Seat Cushion Pad (2) - Remove
