Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

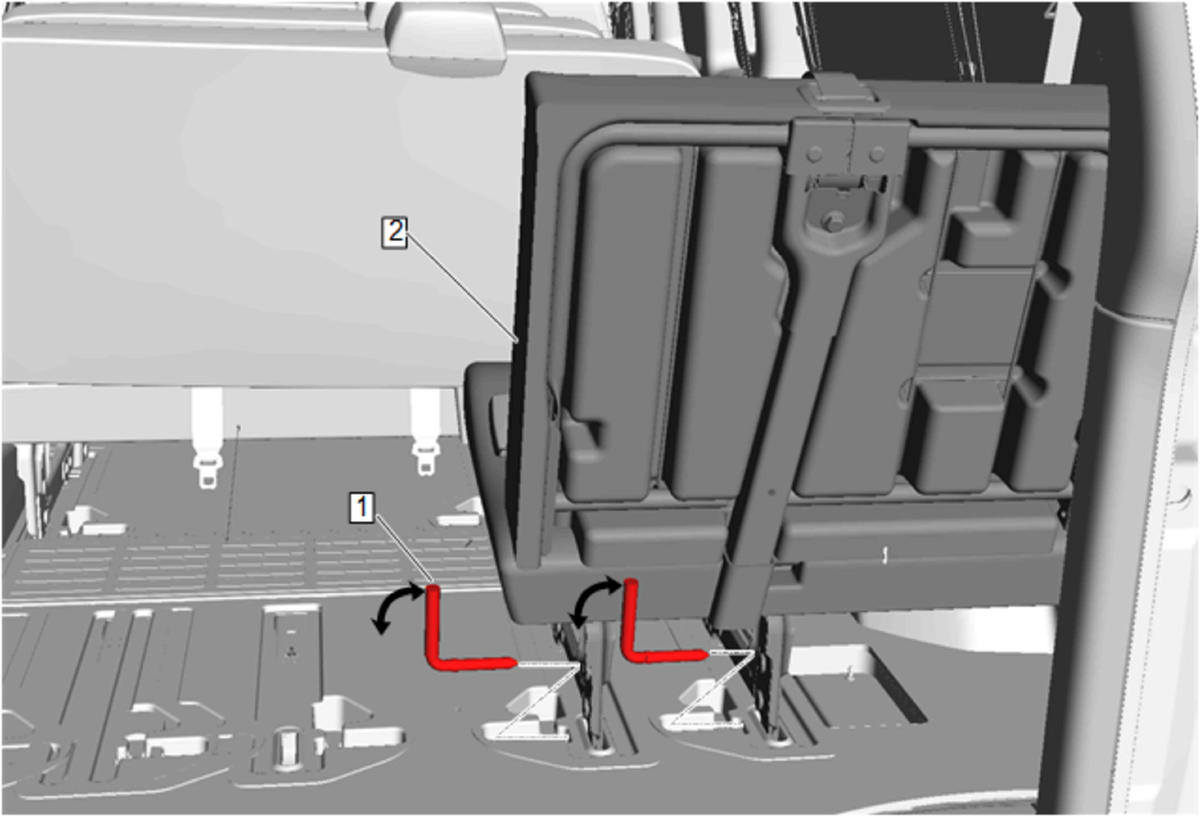

  1. GM5151804Courtesy of GENERAL MOTORS COMPANY

    Install the right rear split bench seat (2) into the floor rails.

  2. Install the 2 seat locking pins (1).

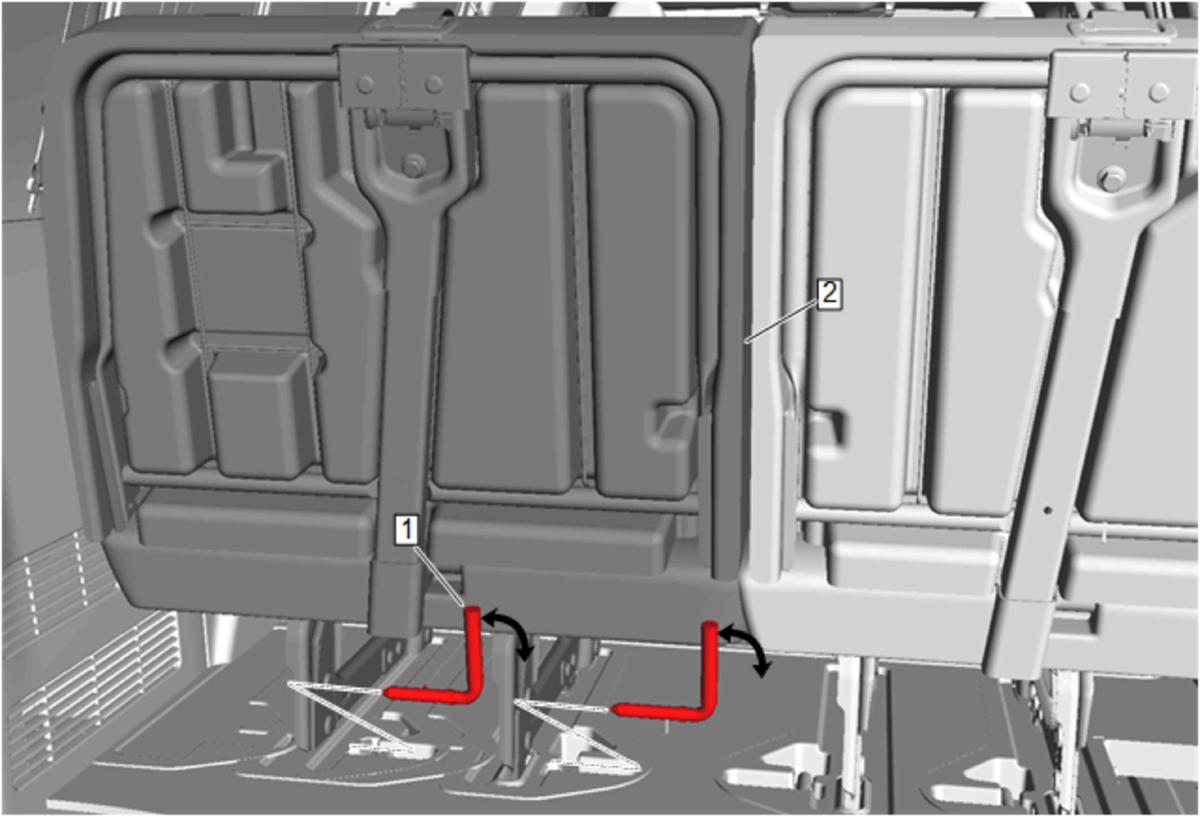

  3. GM5151803Courtesy of GENERAL MOTORS COMPANY

    Install the left rear split bench seat (2) into the floor rails.

  4. Install the 2 seat locking pins (1).
  5. Connect the seat belts.
