Front Seat Riser Finish Cover Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

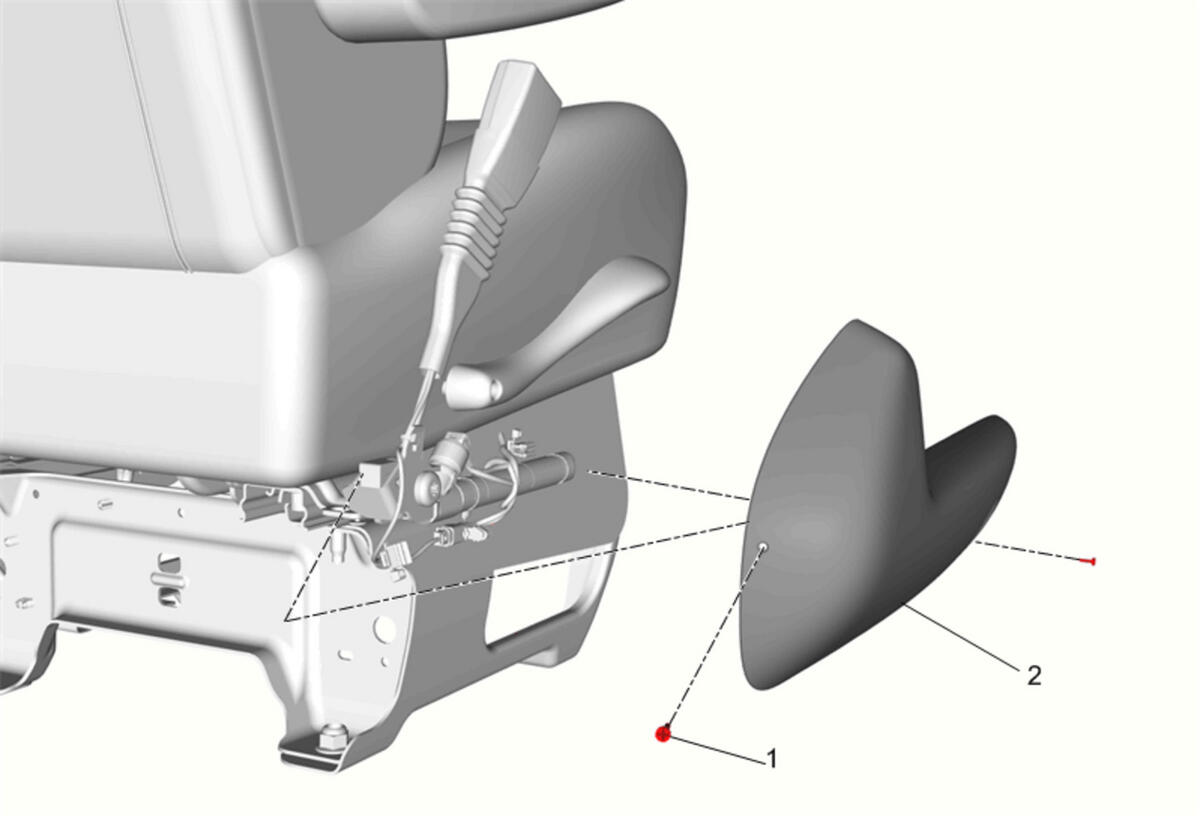

GM4847572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Riser Finish Cover Screw [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Front Seat Riser Finish Cover

Procedure

  1. Pull outward and slide forward to remove the cover from the seat.
  2. Release the wiring harness.
