Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

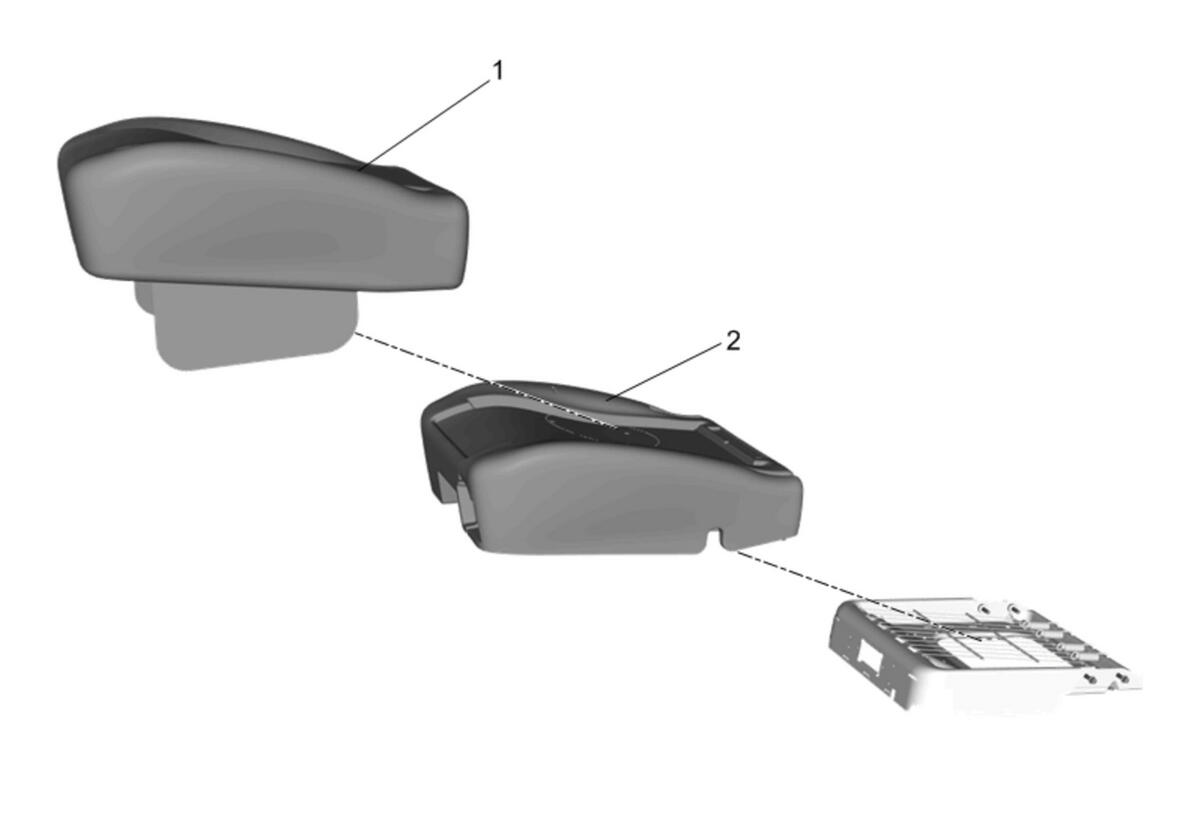

Front Seat Cushion Pad (2) - Install
Front Seat Cushion Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Power Seat Switch (2) - Install - Power Seat Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

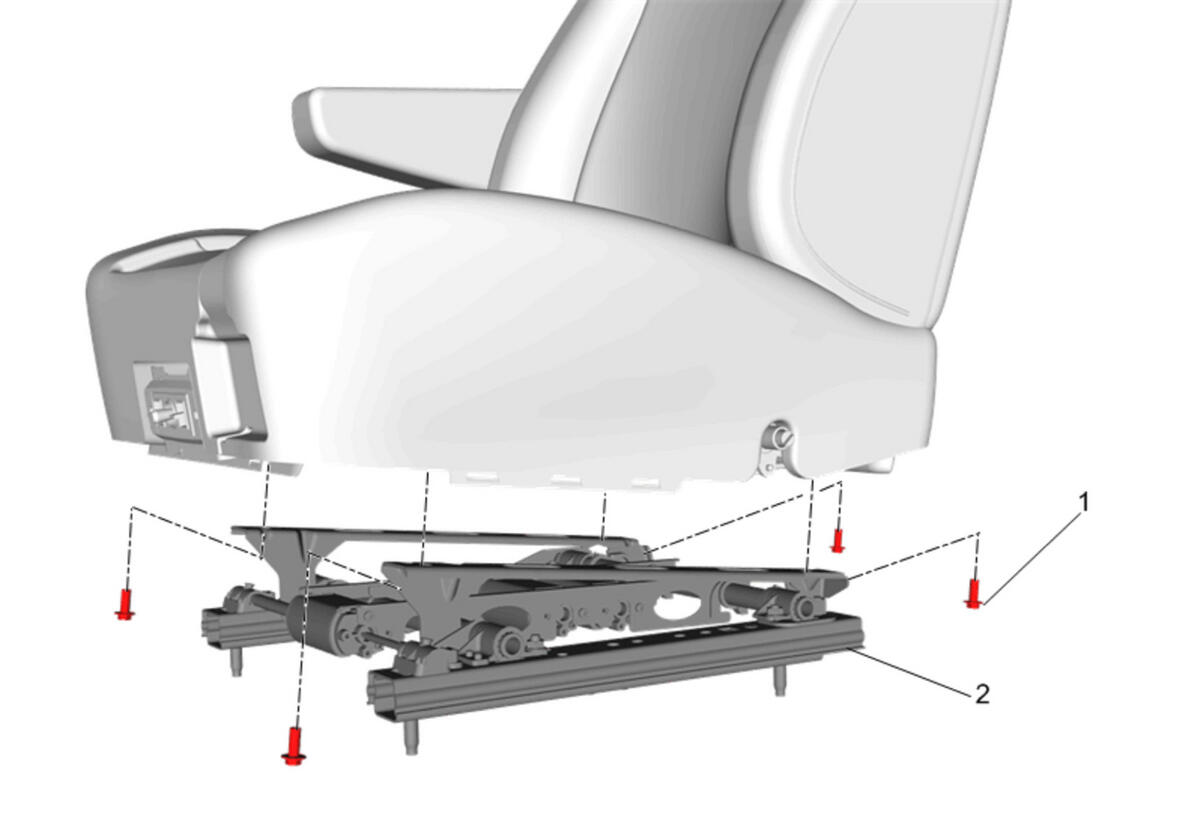

Front Seat Adjuster Bolt (1) - Install [4x] - Front Seat Adjuster Replacement
Courtesy of GENERAL MOTORS COMPANY

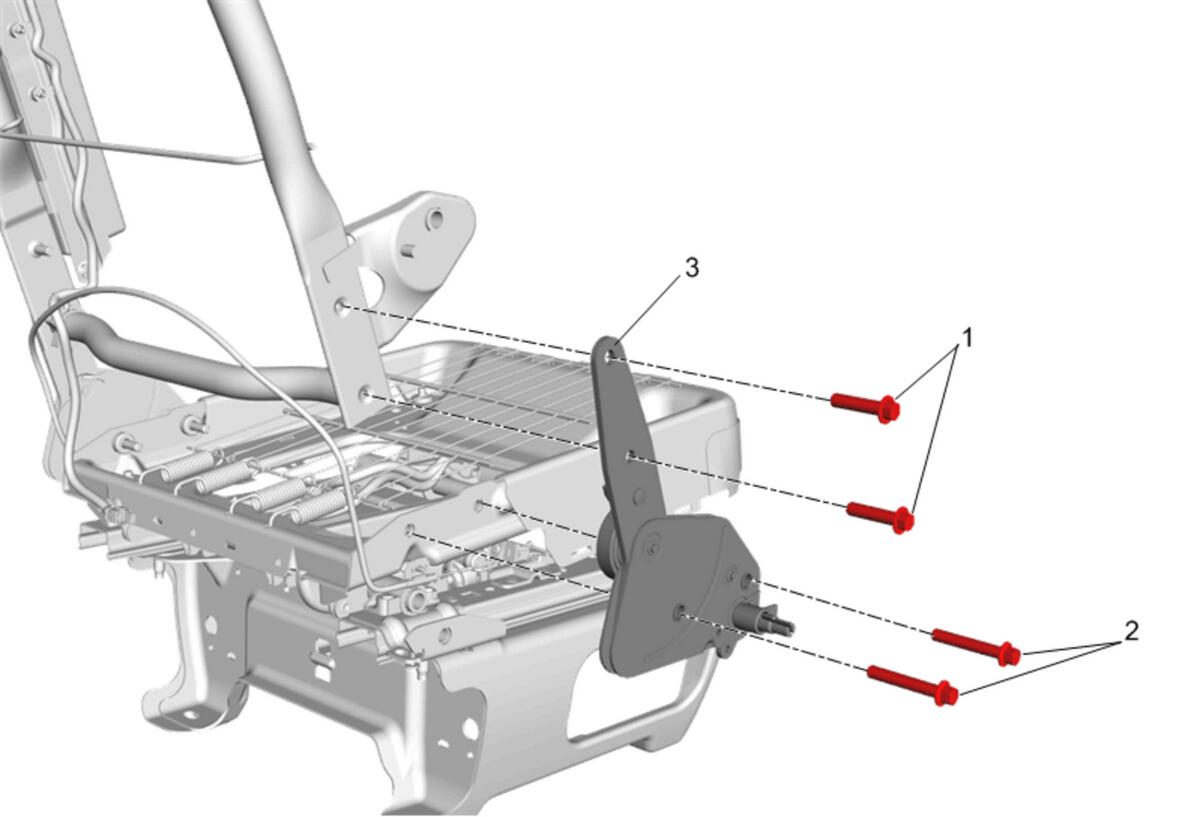

Front Seat Recliner Bolt - Lower (2) - Install [4x] - Front Seat Back Hinge and Recliner Mechanism Replacement
Courtesy of GENERAL MOTORS COMPANY

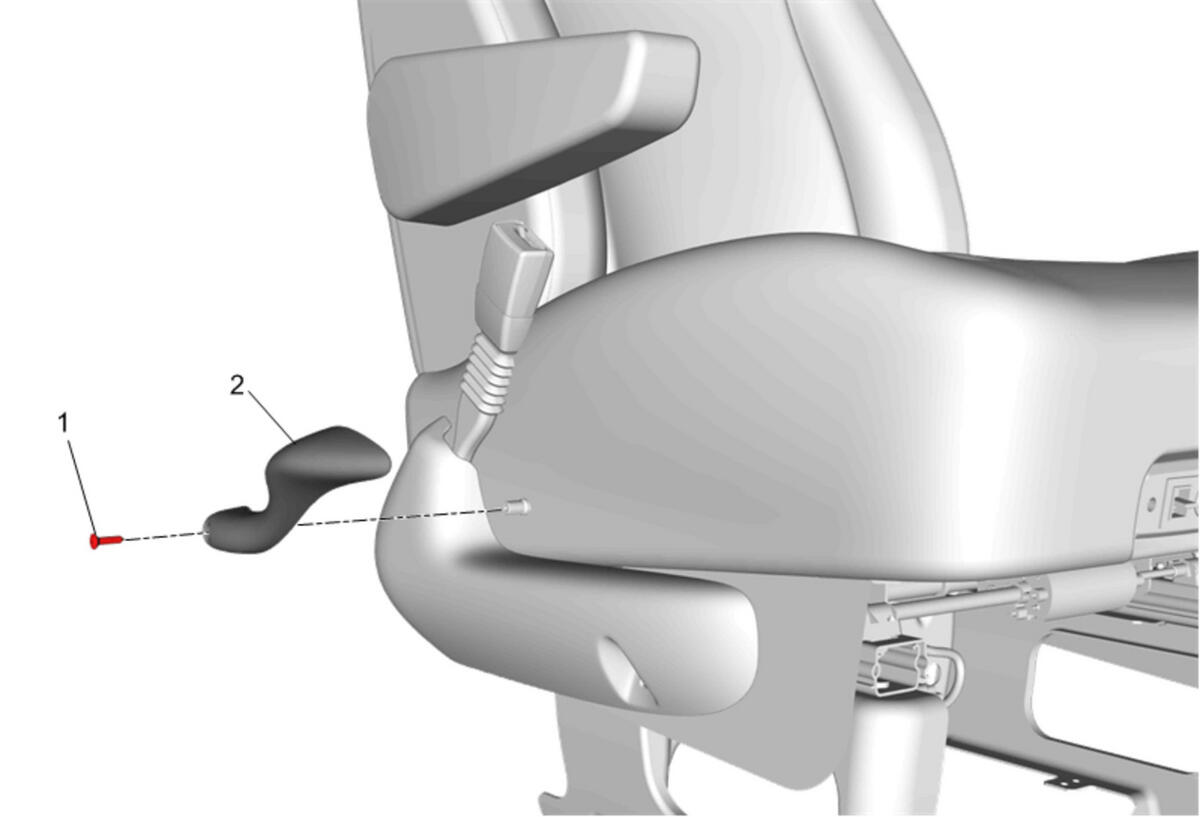

Front Seat Back Recliner Handle (2) - Install - Front Seat Back Recliner Handle Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Seat (2) - Install - Front Seat Removal and Installation
Enable the SIR System. SIR Disabling and Enabling
