Front Seat Back Frame Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

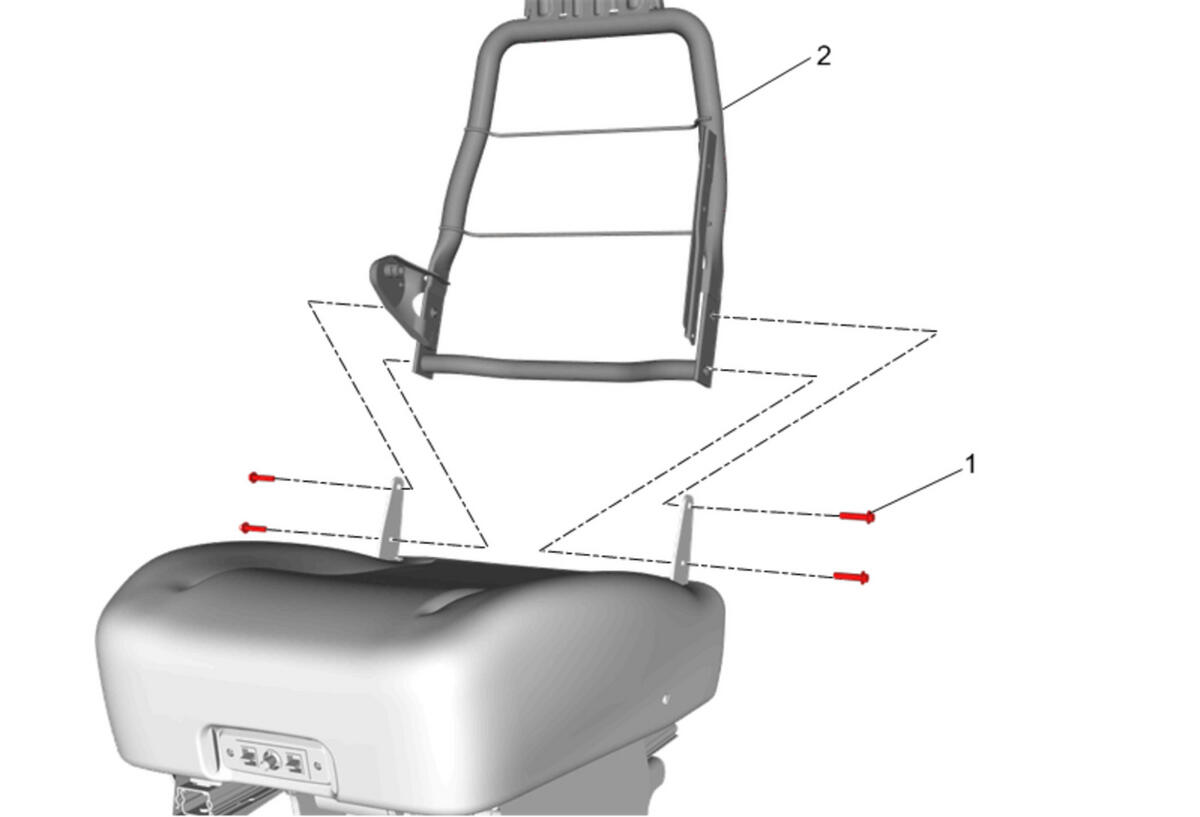

GM4849216Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to SIR Warning .

Preliminary Procedure Front Seat Back Cover and Pad Replacement
1 Front Seat Recliner Bolt - Upper [4x]
CAUTION:

Refer to Fastener Caution .


Tighten
32 N.m (24 lb ft)
2 Driver or Passenger Seat Back Cushion Frame

Procedure

  1. Disconnect the electrical connector.
  2. Transfer components as necessary.
