Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine oil. Engine Oil and Oil Filter Replacement
Courtesy of GENERAL MOTORS COMPANY

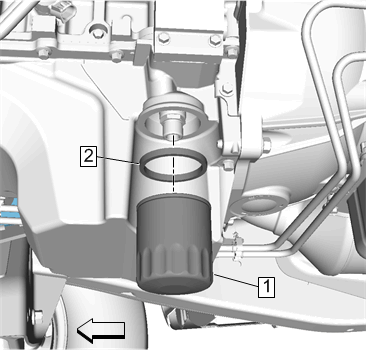

Oil Filter (1) - Remove and DISCARD - Engine Oil and Oil Filter Replacement
Courtesy of GENERAL MOTORS COMPANY

Front Suspension Crossmember (1) - Remove - Front Suspension Crossmember Replacement
Courtesy of GENERAL MOTORS COMPANY

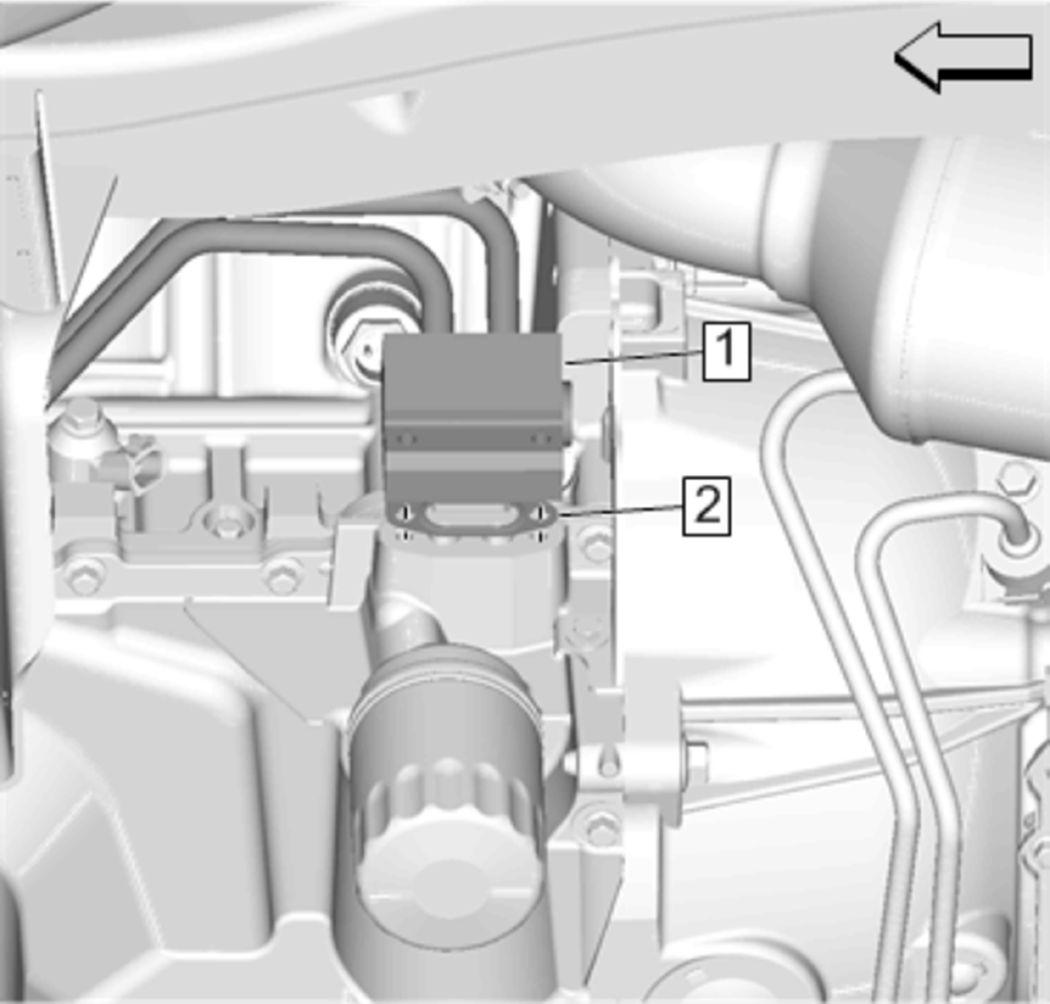

Engine Oil Cooler Hose (1) - Remove - Engine Oil Cooler Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

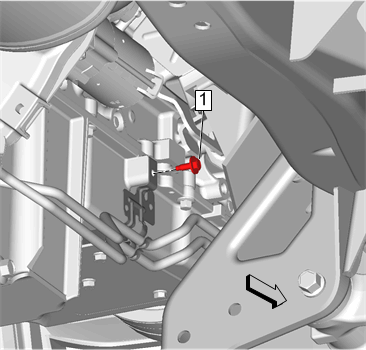

Transmission Fluid Cooler Pipe Clip Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

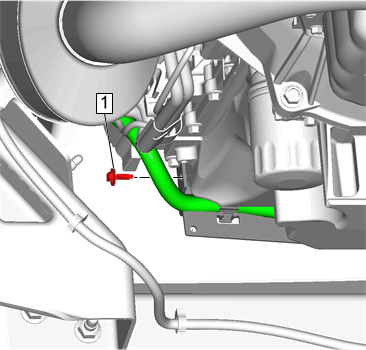

Engine Wiring Harness Clip Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

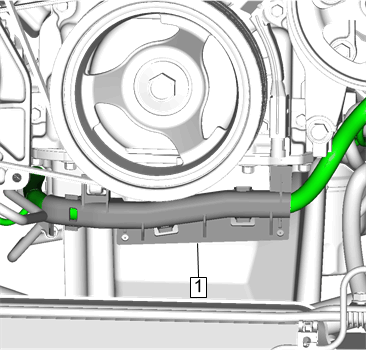

Engine Wiring Harness Channel (1) @ Oil Pan - Separate
Courtesy of GENERAL MOTORS COMPANY

Transmission Converter Cover (2)- Left Side - Remove - Transmission Converter Cover Replacement (Left Side)
Courtesy of GENERAL MOTORS COMPANY

Transmission Converter Cover (2)- Right Side - Remove - Transmission Converter Cover Replacement (Right Side)
Courtesy of GENERAL MOTORS COMPANY

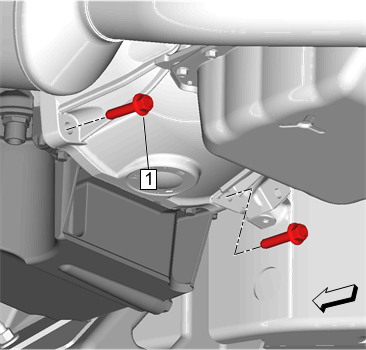

Transmission Bolt (1) @ Oil Pan - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

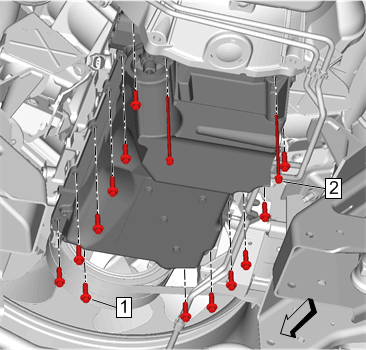

Oil Pan-to-Block and Oil Pan-to-Front Cover Bolts (1) - Remove [13x]
Oil Pan-to- Rear Cover Bolts (2) - Remove [2x]
Courtesy of GENERAL MOTORS COMPANY

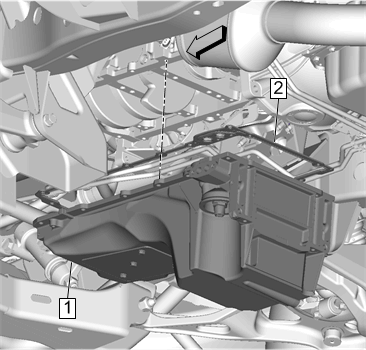

Oil Pan (1) - Remove
Oil Pan Gasket (2) - Remove and DISCARD
Transfer components as necessary.
For oil pan cleaning and inspection, refer to Oil Pan Cleaning and Inspection .
