Oil Pan Cover Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

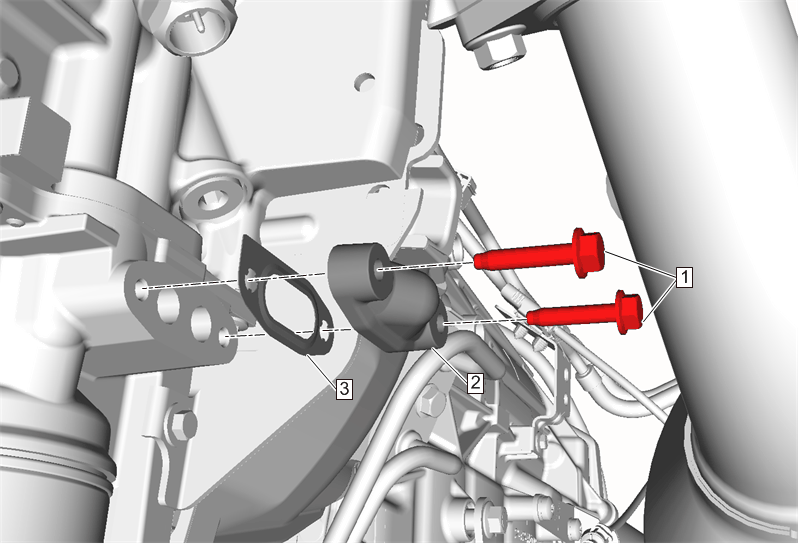

GM4865754Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Oil Pan Cover Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Oil Pan Cover
3 Oil Pan Cover Gasket
Procedure
A NEW gasket must be used when installing the oil pan cover.
