Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4589005Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Splash Shield- Right Side (3) - Remove - Wheelhouse Splash Shield Replacement (Right Side)

  2. GM4861104Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube- Upper - Remove - Oil Level Indicator Tube Replacement (Upper)

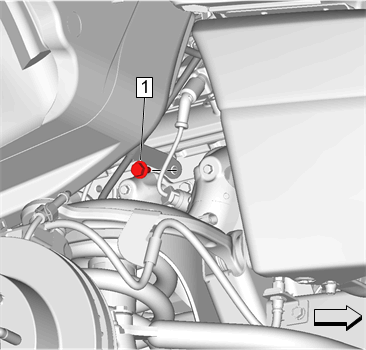

  3. GM4861216Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bracket Bolt (1) @ Cylinder Head - Remove

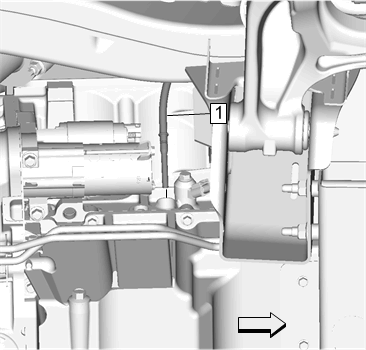

  4. GM4861223Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) - @ Engine Block - Remove

  5. GM4861243Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube O- Ring (1) - Remove and DISCARD
