Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

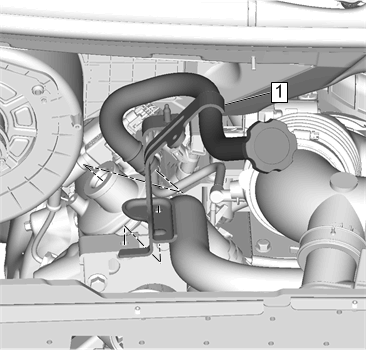

Oil Filler Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

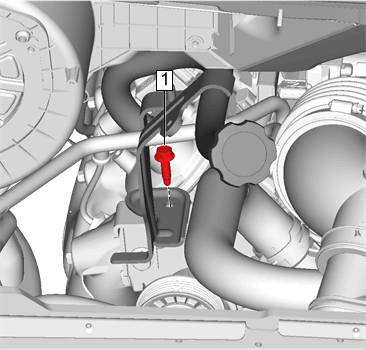

Oil Filler Tube Bracket Bolt (1) - Install and tighten 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

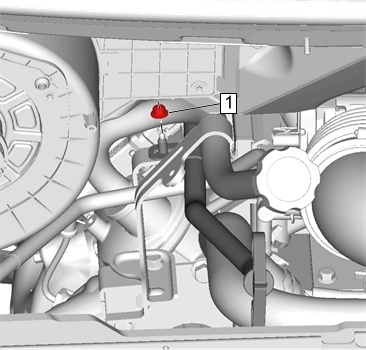

Transmission Fluid Filler Tube Nut (1) - Install - Transmission Fluid Filler Tube and Seal Replacement
Courtesy of GENERAL MOTORS COMPANY

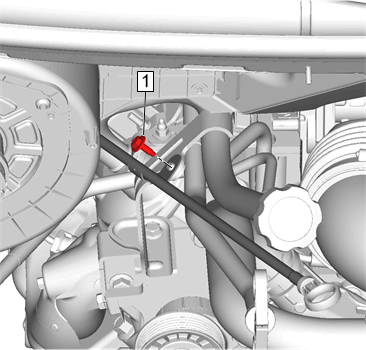

Oil Level Indicator Tube Bolt (1) - Install - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir (1) - Install - Coolant Recovery Reservoir Replacement (L96, LC8)
