Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4859617Courtesy of GENERAL MOTORS COMPANY

    Fuel Injection Fuel Rail Assembly (1) - Remove - Fuel Injection Fuel Rail Assembly Replacement (L96)

  2. Engine Oil Pressure Sensor - Remove - Engine Oil Pressure Sensor and/or Switch Replacement
  3. Generator - Remove - Generator Replacement (L96, LC8)
  4. GM4856791Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Throttle Body - Disconnect

  5. GM4856800Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Manifold Absolute Pressure Sensor - Disconnect

  6. GM4862203Courtesy of GENERAL MOTORS COMPANY

    Vacuum Hose (1) @ Intake Manifold - Disconnect

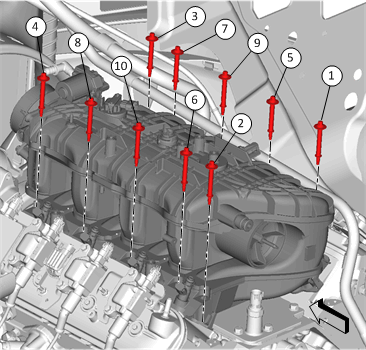

  7. Fig 1: Intake Manifold Bolts With Removal Sequence
    GM4862208Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Bolt (1) - Remove the bolts in sequence. [10x]

  8. GM4862232Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Remove

  9. Intake Manifold Gasket (2) - Remove and DISCARD [2x]
  10. Transfer components as necessary.
