Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the left front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Wheelhouse Splash Shield - Left Side - Remove - Wheelhouse Splash Shield Replacement (Left Side)

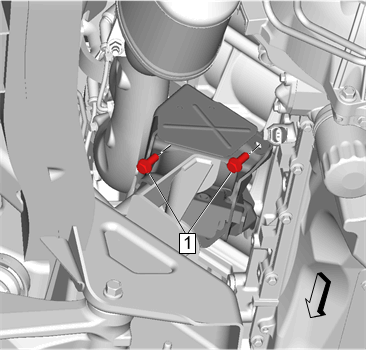

Engine Mount Bolt- Left Side (1) @ Frame - Remove [2x]

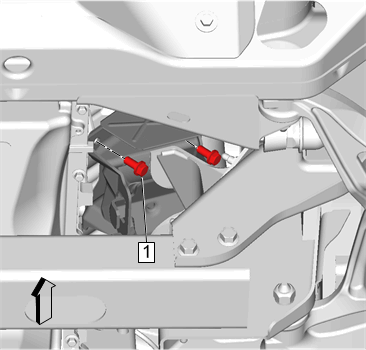

Engine Mount Bolt- Left Side (1) @ Frame - Remove
- Raise and suitably support the engine using adjustable (screw type) jackstands.

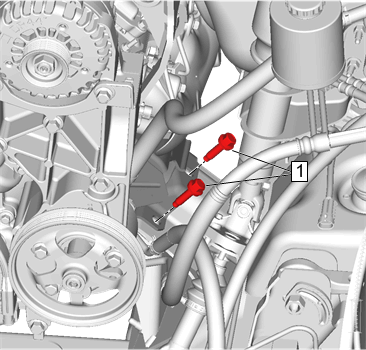

Engine Mount Bolt- Left Side (1) @ Engine Block - Remove [2x]

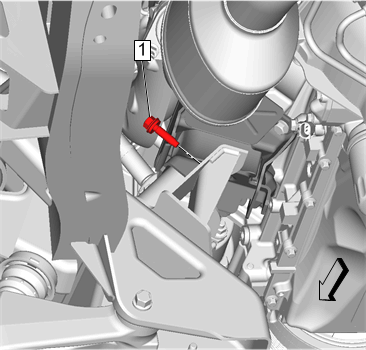

Engine Mount Bolt- Left Side (1) @ Engine Block - Remove [2x]

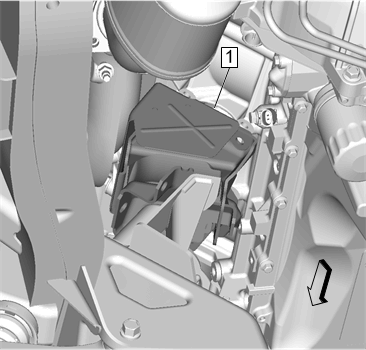

Engine Mount- Left Side (1) - Remove
CAUTION:
When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or crankshaft balancer. Jacking against the oil pan may cause it to crack or break.
NOTE:
Raise the engine only enough to permit removal of the engine mount.
