Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

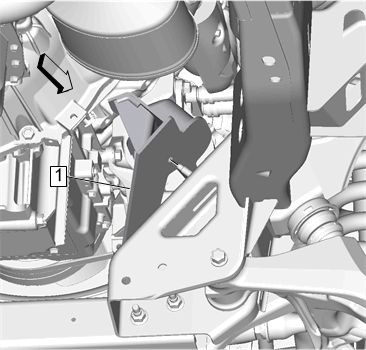

  1. GM4860319Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Frame Side Bracket - Right Side (1) - Install

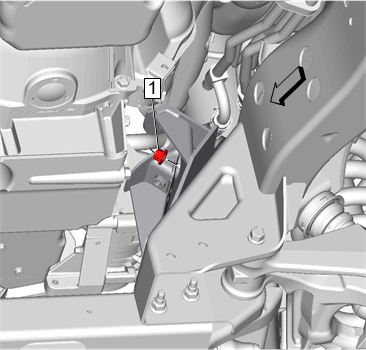

  2. GM4860318Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

    Engine Mount Frame Side Bracket Nut - Right Side (1) - Install and tighten 50 N.m (37 lb ft)

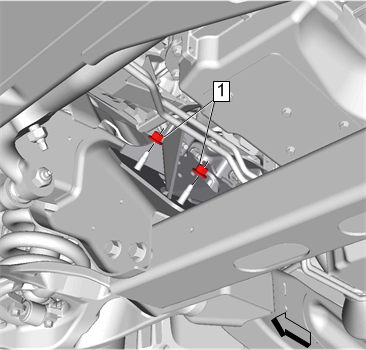

  3. GM4860317Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Frame Side Bracket Nut - Right Side (1) - Install and tighten [2x] 50 N.m (37 lb ft)

  4. Engine Mount- Right Side - Install - Engine Mount Replacement - Right Side
