Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine Mount- Left Side - Remove - Engine Mount Replacement - Left Side

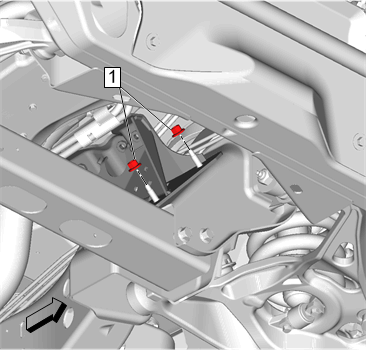

  2. GM4857605Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Frame Side Bracket Nut - Left Side (1) - Remove [2x]

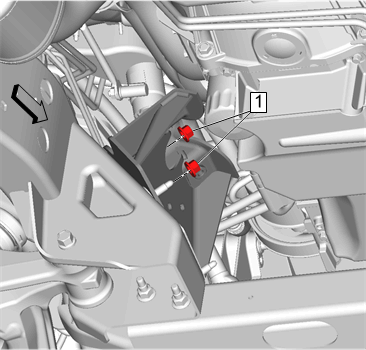

  3. GM4857607Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Frame Side Bracket Nut - Left Side (1) - Remove [2x]

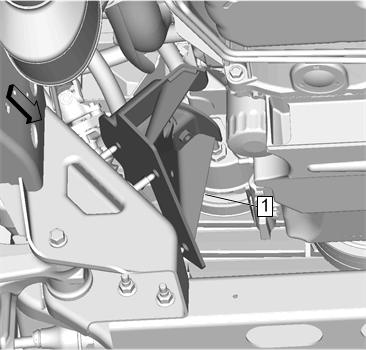

  4. GM4857614Courtesy of GENERAL MOTORS COMPANY

    Engine Mount Frame Side Bracket - Left Side (1) - Remove
