Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Water Pump (1) - Remove - Water Pump Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Oil Pan (1) - Remove - Oil Pan Replacement
Courtesy of GENERAL MOTORS COMPANY

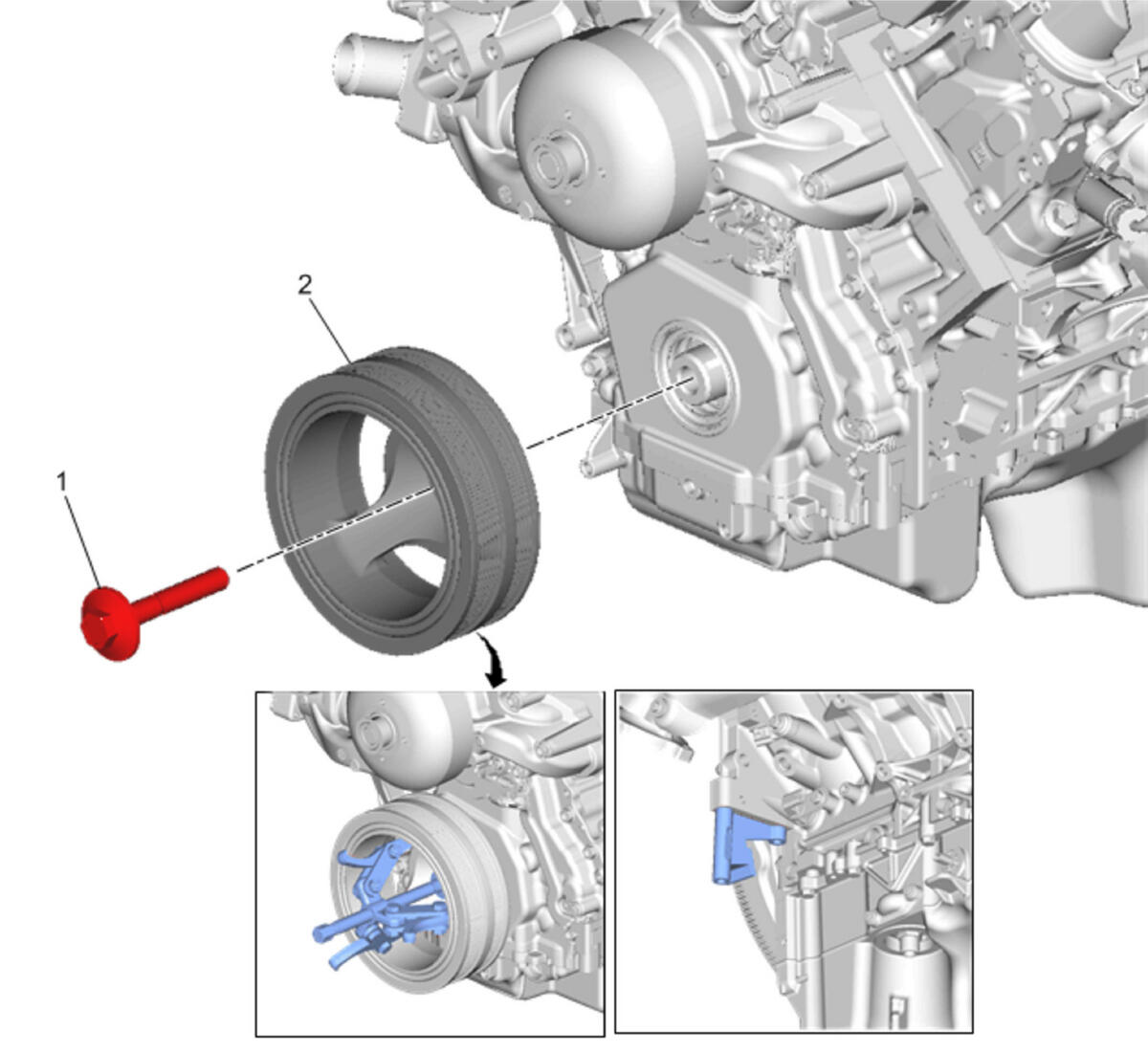

Crankshaft Balancer (2) - Remove - Crankshaft Balancer Replacement
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Camshaft Position Sensor Wiring Assembly - Disconnect
Courtesy of GENERAL MOTORS COMPANY

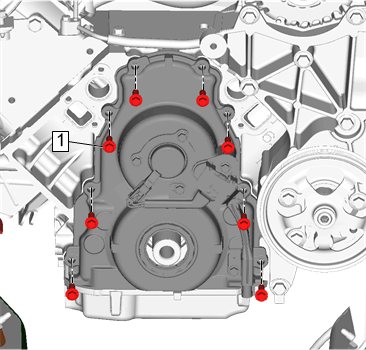

Engine Front Cover Bolt (1) - Remove [8x]
Courtesy of GENERAL MOTORS COMPANY

Engine Front Cover (1) - Remove
Engine Front Cover Gasket (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

NOTE:
If replacement of the engine front cover is necessary, perform the following steps.

Camshaft Position Sensor Wiring Assembly Bolt (1) - Remove [3x]
Camshaft Position Sensor Wiring Assembly (2) - Remove
Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor (1) - Remove
Camshaft Position Sensor O- Ring (2) - Remove and DISCARD
Courtesy of GENERAL MOTORS COMPANY

Camshaft Position Sensor Actuator Magnet Bolt (1) - Remove [2x]
Camshaft Position Sensor Actuator Magnet (2) - Remove
Camshaft Position Sensor Actuator Magnet Gasket (3) - Remove and DISCARD
Clean and inspect the engine front cover. Engine Front Cover Cleaning and Inspection
