Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
If replacement of the engine front cover is not necessary, proceed to step 9.

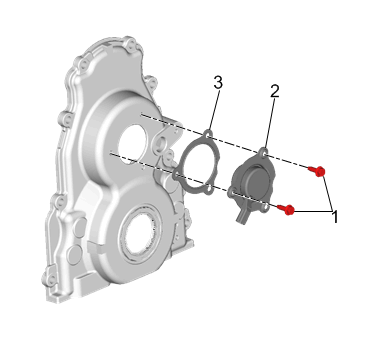

Camshaft Position Sensor Actuator Magnet Gasket (3) - Install a NEW gasket.
Camshaft Position Sensor Actuator Magnet (2) - Install
Camshaft Position Sensor Actuator Magnet Bolt (1) - Install and tighten [2x] - Engine Front Cover Installation
Courtesy of GENERAL MOTORS COMPANY

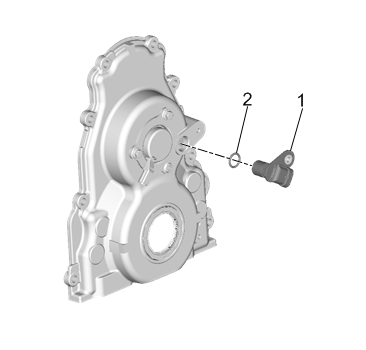

Camshaft Position Sensor O- Ring (2) - Install a NEW O- Ring seal.
Camshaft Position Sensor (1) - Install
Courtesy of GENERAL MOTORS COMPANY

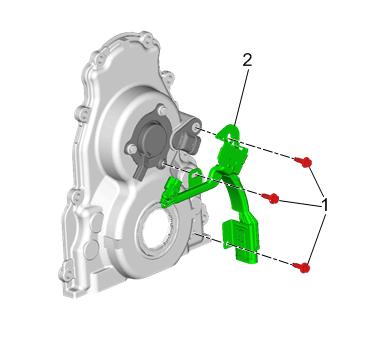

Camshaft Position Sensor Wiring Assembly (2) - Install
Camshaft Position Sensor Wiring Assembly Bolt (1) - Install and tighten [3x] - Engine Front Cover Installation
Courtesy of GENERAL MOTORS COMPANY

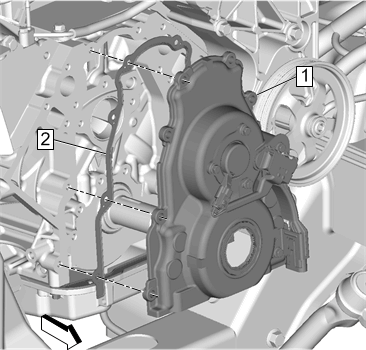

Engine Front Cover Gasket (2) - Install a NEW gasket.
Engine Front Cover (1) - Install - Engine Front Cover Installation
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Camshaft Position Sensor Wiring Assembly - Connect
Courtesy of GENERAL MOTORS COMPANY

Crankshaft Balancer (2) - Install - Crankshaft Balancer Replacement
Courtesy of GENERAL MOTORS COMPANY

Oil Pan (1) - Install - Oil Pan Replacement
Courtesy of GENERAL MOTORS COMPANY

Water Pump (1) - Install - Water Pump Replacement (L96, LC8)
