Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4862232Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold (1) - Remove - Intake Manifold Replacement

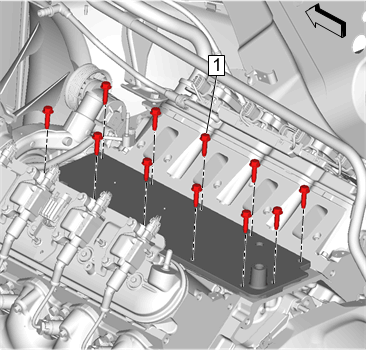

  2. GM4862359Courtesy of GENERAL MOTORS COMPANY

    Engine Block Valley Cover Bolt (1) - Remove [11x]

  3. GM4862396Courtesy of GENERAL MOTORS COMPANY

    Engine Block Valley Cover (1) - Remove

  4. Engine Block Valley Cover Gasket (2) - Remove and DISCARD
